THE 1:8 DISTRIBUTION AMPLIFIER FOR HDMI
How to Connect the 1:8 Distribution Amplifier For HDMI
Connect the supplied cable from the HDTV HDMI source into the HDMI input port
1
of the 1:8 Distribution Amplifier For HDMI.
Connect the user supplied cable(s) from your display(s) into the HDMI output
2
port(s)* of the1:8 Distribution Amplifier For HDMI.
Plug the 24V DC power supply into the 1:8 Distribution Amplifier For HDMI.
3
NOTE: *Display information (EDID) is sent from the display connected to HDMI
Output Port 1 to the source connected to the 1:8 Distribution Amplifier for
HDMI. If there is no display connected to HDMI Output Port 1, the remaining
HDMI Output Ports will be scanned in succession and use the first EDID that
it detects. The source will output resolutions and timings according the EDID
that is being fed by the 1:8 Distribution Amplifier for HDMI. Therefore, all of the
connected displays must be capable of accepting the timings and resolution output
by the source. It is recommended that the display with the lowest native resolution
be connected to HDMI output port 1. This is to ensure that a compatible video
signal will be able to be displayed on all connected monitors.
Multiple HDMI-DA-1X8 devices can be daisy chained together to distribute a single
HDMI signal to a maximum of 73 units, for a total of 512 displays.
CONNECTING AND OPERATING

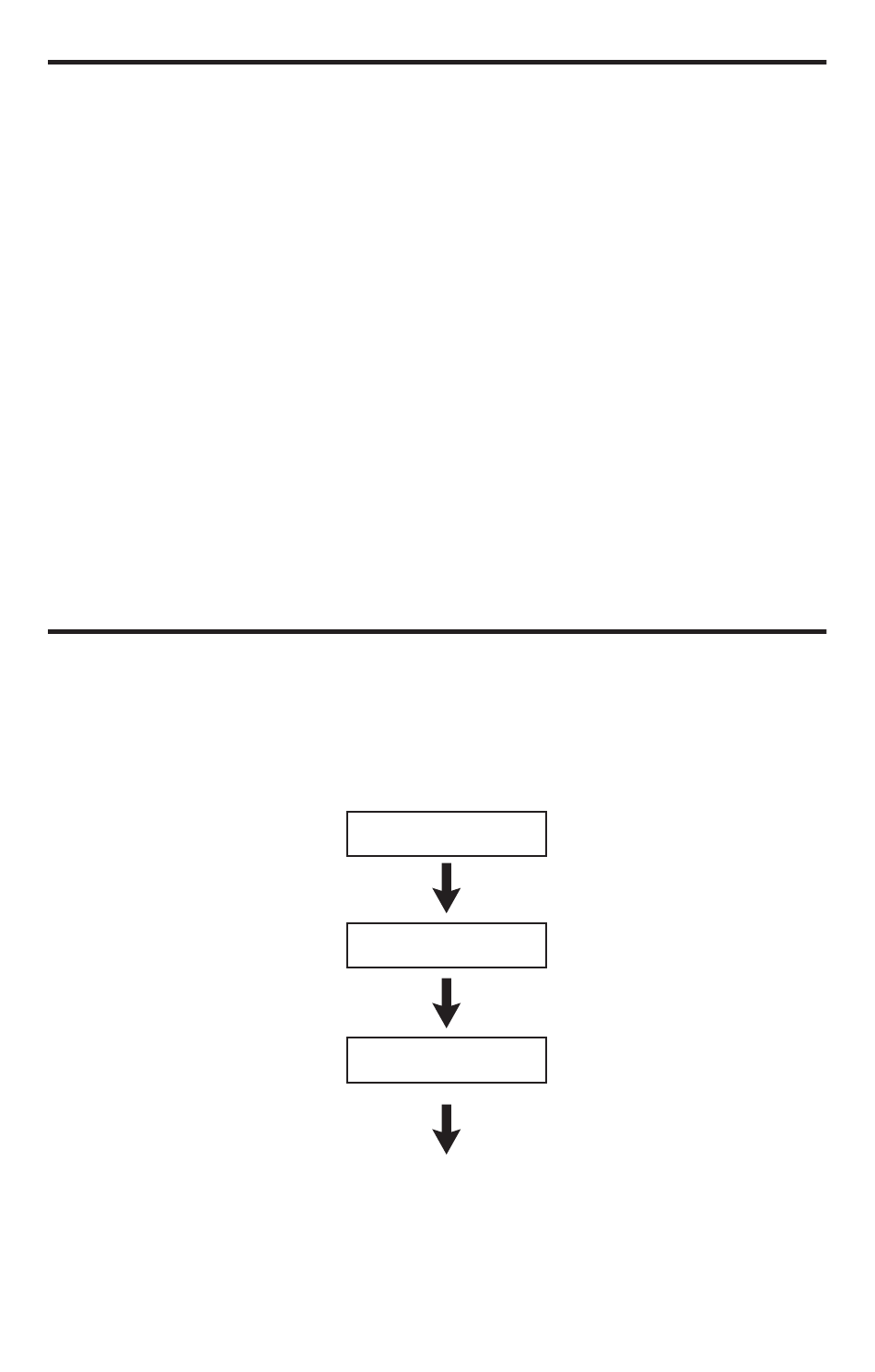

APPLICATION DIAGRAM

HDMI-DA-1X8
HDMI-DA-1X8
HDMI-DA-1X8
Maximum 512 Displays
4
X8
X64
