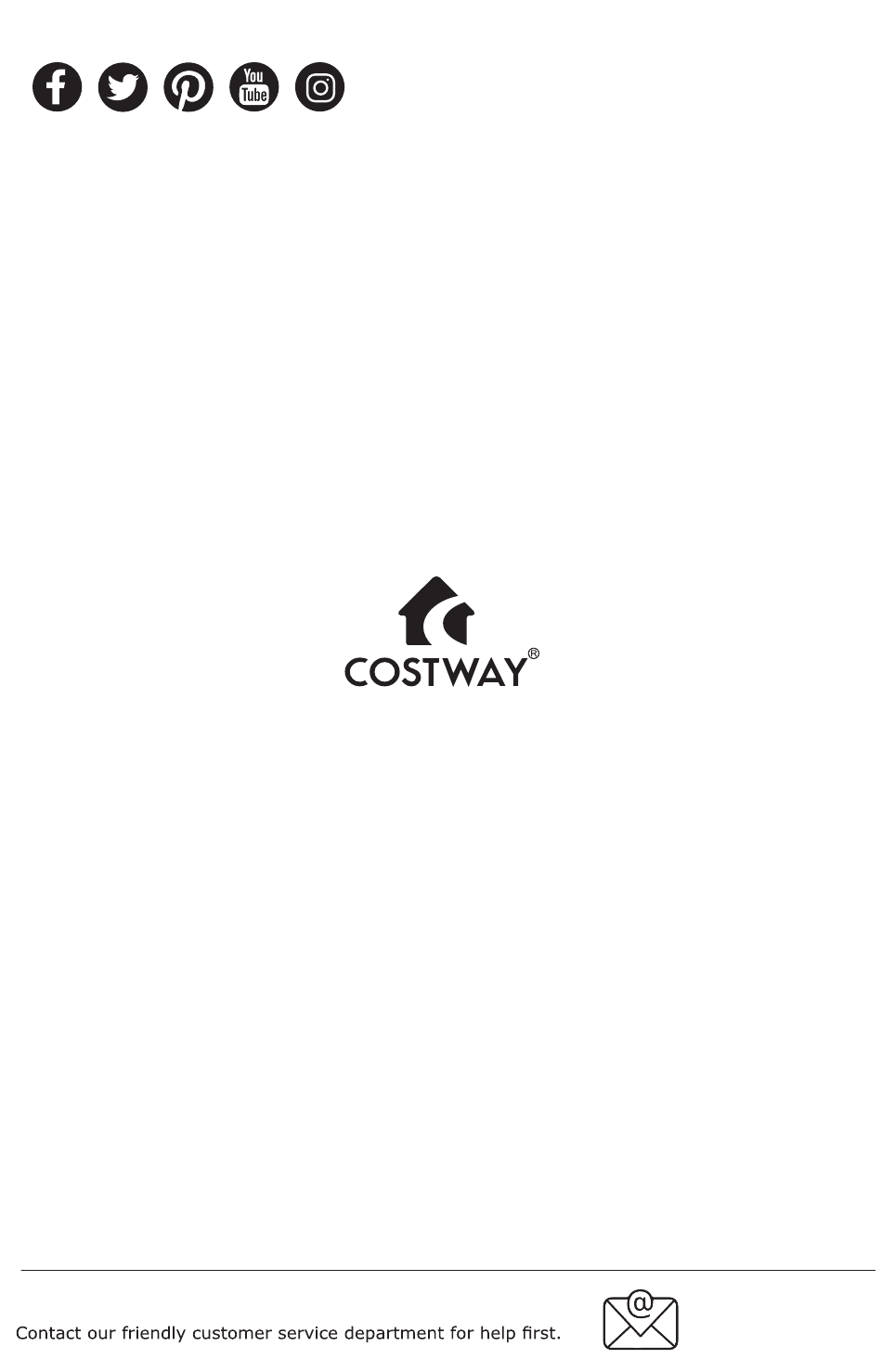

- Page 1 Contact our friendly customer service department for help first. Replacements for missing or damaged parts will be shipped ASAP ! US office: Fontana UK office: Ipswich AU office: Truganina Contact Us ! Do NOT return this item. US:cs.us@costway.com UK:cs.uk@costway.com AU:cs.au@costway.com...

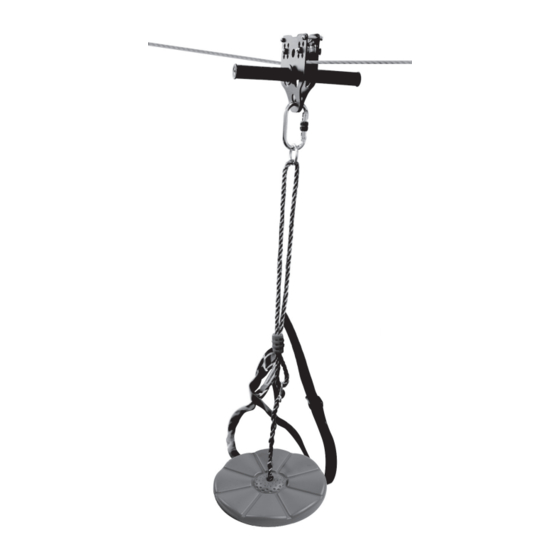

- Page 2 USER’S MANUAL Zip line kit TS10023 THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
-
Page 3: Before You Start
Before You Start Please read all instructions carefully and keep it for future reference. Warnings: Attention! Use it with protective equipment. Attention! Not use it in the traffic. Attention! The product is not suitable for the children under 3 years. General Warnings: The product must be installed and used under the supervision of an adult. - Page 4 FOR AGES MAX WEIGHT CAUTION: 400 LBS ADULT SUPERVISION AND ASSEMBLY 180 KG IS REQUIRED. WITH ADULT SUPERVISION BE SAFE! - ALWAYS FOLLOW THESE SAFETY RULES ● TO BE SETUP AND INSTALLED ONLY BY AN ADULT. ● NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE ●...
- Page 5 CABLE WEIGHT TEST MARK CABLE AT EACH CABLE CLAMP AND FIST GRIP. AFTER USING TEST WEIGHT TO TEST ZIP LINE, INSPECT MARKS FOR INDICATION OF CLAMP SLIPPAGE. ATTACH A TEST WEIGHT, EQUAL TO WEIGHT OF HEAVIEST PARTICIPANT, UP TO 400 LBS (180 KG). TO TROLLEY MOUNTED ON CABLE. (!! WARNING !!NEVER USE A PERSON AS A TEST WEIGHT WHEN PERFORMING THE WEIGHT TEST.) Bounce test weight up and down.
-
Page 6: What's In The Package
WHAT ‘S IN THE PACKAGE? 100ft Wire line 6ft Sping brake round seat Handle pulley Safety belt Safety rope 8.2ft Ratchet 3*U-clamps 2*Locking and webbing line carabiner Wrench Carry bag 2*Tree protector... - Page 7 Warning! Assembly by an adult. Not suitable for children under 36 months. Long cord. Strangulation hazard. HOW TO INSTALL ZIP LINE? 1.How high should l install my zipline? As a general rule ,we recommend installing the finish point of the course 6ft to 8ft off the ground,and 2ft taller than the tallest rider.
- Page 8 be careful Do not use buildings or playground structures (unless specifically built for zip lines), live power/telephone poles, dead trees or stumps, trees with rot, disease, structural cracks, excessive lean, exposed roots, or trees in boggy, wet, sandy, loose soil. This is only a partial list. You must use your good judgment in determining what is not an appropriate anchor point.
- Page 9 The wire rope is wound into a ring at the just marked point, and the wound ring is fixed with a U-shaped buckle. 6.Put the webbing line set on in the just fixed wire rope ring.Then use the ratchet to tighten the webbing belt. Note that before tightening the ratchet, make sure that the wire rope has been straightened as far as possible.
- Page 10 8.Adjust the round seat to the length you need. You can adjust it to the most suitable length through the buckle on the top or the knot on the bottom. 9.Put the safety belt on your body and tighten it. Then connect the safety belt to the adjustable strap with another buckle.
- Page 11 HOW TO USE THE SLACKLINE RATCHET? Take the second piece of webbing and ready to thread the webbing. Slide the webbing from behind the slot,pulling it towards the handle side. Pull the webbing through the axle by hand until it is as tight as possible. Tighten the strap by pulling the handle on the ratchet.The first four clicks will secure the webbing around the spindle and the next several should get the...
- Page 12 Note: The ratchet wheel should be kept in the retracted state after tightening the webbing line, otherwise the service life of the ratchet wheel will be affected. DEAR CUSTOMER, Thanks for choosing zip line kit. If you have any questions or there are any issues with the product, please contact us as we want to ensure that you are completely satisfied with our product.
