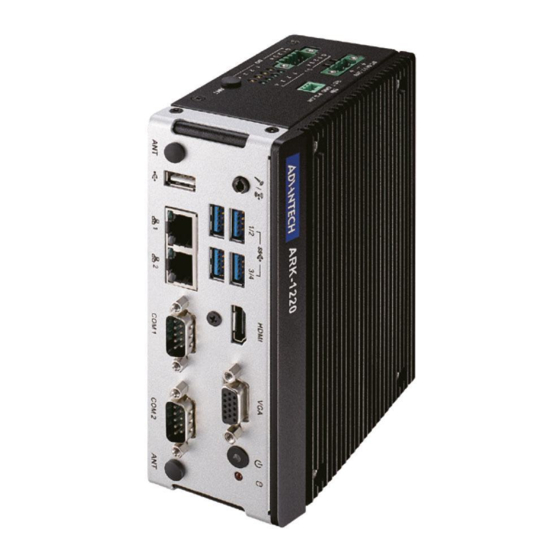

Advantech ARK-1220F User Manual

Fanless embedded box computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
ARK-1220F
Fanless Embedded Box
Computer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARK-1220F and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech ARK-1220F

Summary of Contents for Advantech ARK-1220F

  • Page 1 User Manual ARK-1220F Fanless Embedded Box Computer...
  • Page 2 This product contains a hard copy of the Chinese user manual for China CCC certification purposes. A PDF of the English user manual is available online. Please disregard the hard copy Chinese user manual if the product is not sold and/or installed in China. ARK-1220F User Manual...
  • Page 3 The documentation and the software included with this product are copyrighted 2021 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to improve the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission from Advantech Co., Ltd.
  • Page 4 Product Warranty (2 Years) Advantech warrants to the original purchaser that all of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 5 Technical Support and Assistance Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: –...
  • Page 6 In accordance with IEC 704-1:1982 specifications, the sound pressure level at the operator’s position does not exceed 70 dB (A). DISCLAIMER: These instructions are provided according to IEC 704-1 specifi- cations. Advantech disclaims all responsibility for the accuracy of any state- ments contained herein. ARK-1220F User Manual...
  • Page 7 The product is intended to be supplied by an UL listed power supply suitable for use at minimum Tma 60 degree C which output is rated: 12-28Vdc, 5-2.14A min. If need further assistance, please contact Advantech for further informa- tion.
  • Page 8 1: 1982 n'est pas supérieur à 70 dB (A). AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la norme CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude des déclarations contenues dans ce. Le produit est destiné à être alimenté par une alimentation homologuée UL con- venant à...

  • Page 9: Table Of Contents

    Chipset ...................... 3 1.3.1 Functional Specifications .............. 3 1.3.2 WISE-PaaS/DeviceOn ..............4 Mechanical Specifications................. 4 1.4.1 System Dimensions ..............4 Figure 1.1 ARK-1220F Mechanical Dimensions......4 1.4.2 Weight................... 4 Power Requirements................. 5 1.5.1 System Power................5 1.5.2 RTC Battery .................. 5 Environmental Specifications ..............
  • Page 10 3.2.6 Save & Exit ................. 60 Appendix A Watchdog Sample Code....61 Watchdog Function ................. 62 Appendix B SUSI API Introduction....... 65 SUSI API Introduction ................66 B.1.1 Watchdog API................66 B.1.2 Hardware Monitor API ..............66 ARK-1220F User Manual...

  • Page 11: Chapter 1 General Introduction

    Chapter General Introduction This chapter details background information on the ARK-1220F series...

  • Page 12: Introduction

    1 x USB 2.0, 1 x RS-232/422/485, 1 x RS-422/485, and 2 x 10/100/1000 Mbps LAN ports, as well as 1 x Mic In and Line Out. ARK-1220F also features 1 x full-size mini PCIE and 1 x M.2 2230 E key, and supports a 2.5” SSD. It is suitable for installation in environments with limited space.

  • Page 13: Display

    USB Interface USB host interface with support for up to 4 x USB 3.0 and 1 x USB 2.0 ports All ports are High-Speed, Full-Speed, and Low-Speed capable Supports legacy keyboard/mouse software BIOS UEFI 128 Mbit  ARK-1220F User Manual...

  • Page 14: Wise-Paas/Deviceon

    Hardware Monitor CPU temperature/input current/input voltage Power Saving Deep sleep S5 mode System Information Running HR/boot record Mechanical Specifications 1.4.1 System Dimensions Wall Mount DIN Rail 114.00 Figure 1.1 ARK-1220F Mechanical Dimensions 1.4.2 Weight 1.3 kg (2.86 lb) ARK-1220F User Manual...

  • Page 15: Power Requirements

    1.6.5 Shock Tolerance When the system is equipped with an SSD/mSATA: 30 G, IEC 60068-2-27, half  sine, 11 ms duration 1.6.6 Safety Certification UL, CB, CCC, BSMI  1.6.7 EMC Certification CE, FCC, CCC, BSMI  ARK-1220F User Manual...
  • Page 16 ARK-1220F User Manual...

  • Page 17: Chapter 2 Hardware Installation

    Chapter Hardware Installation NOTE: Hardware Installation must be performed by a skilled person.  This chapter details instructions for installing ARK-1220F hard- ware and external I/O...

  • Page 18: Introduction

    2.2.1 Jumper Description ARK-1220F can be configured to satisfy specific application requirements by setting jumpers. A jumper is a metal bridge used to close an electric circuit. It consists of two metal pins and a small metal clip (often protected by a plastic cover) that slides over the pins to connect them.

  • Page 19: Jumper List

    ATX/AT Mode J1 (I/O board) COM1 RS-232/422/485 Selection J2 (I/O board) COM1 RS-422/485 Termination J3 (I/O board) COM2 RS-422/485 Selection SW1 (I/O board) COM1 Fail Safe Mode SW3 (I/O board) COM2 Fail Safe Mode 2.2.3 Jumper Locations ARK-1220F User Manual...

  • Page 20: Jumper Settings

    NC: ATX mode; power on via power button Jumper Setting (1-2): AT Mode Table 2.3: J1 (I/O Board): COM1 RS-232/422/485 Selection Part Number 1653302122 Description JP 1x2P/2.0mm/PBT/VA/GFL/BK/Brass/H3.5mm Default Setting (3-5) (2-4): RS-485 (1-3) (4-6): RS-232 Jumper Setting (1-3) (2-4): RS-422 ARK-1220F User Manual...
  • Page 21 Table 2.6: SW1 (I/O Board): COM1 Fail Safe Mode Part Number 1600000402 Description DIP SW SMD 8P SPST P=1.27mm W=5.4mm KHS42E (1): OFF (2): OFF Default Setting (3): OFF (4): OFF (8): ON (7): ON Jumper Setting (6): ON (5): ON ARK-1220F User Manual...

  • Page 22: System I/O

    Jumper Setting (8): ON (7): ON (6): ON (5): ON System I/O Front View Line out/Mic in USB2.0 LAN 1 USB3.0 LAN 2 HDMI COM 1 COM 2 PWR Button Top View Switch DC in DIO LED ARK-1220F User Manual...

  • Page 23: External I/O

    External I/O 2.4.1 Power On/Off Button ARK-1220F features a Power On/Off button with an LED indicators on the top side that show On status (Green LED) Figure 2.1 Power On/Off Button 2.4.2 Power Input Connector The power input connector supports 12 ~ 28 V. The 3 pins are defined as +, -, and 2.4.3...

  • Page 24: Usb 3.0 Connector

    2.4.4 USB 3.0 Connector ARK-1220F supports 4 x USB 3.0 interfaces, which support Plug-and-Play function- ality and hot swapping for up to 127 external devices. The USB interfaces comply with USB UHCI, Rev. 3.0. USB 3.0 connectors contain legacy pins to interface to USB 2.0 devices and a new set of pins for USB 3.0 connectivity.

  • Page 25: Audio Connector

    2.4.6 Audio Connector ARK-1220F features one phone jack connector that supports stereo Line Out or Mic In audio ports. The audio chip is controlled by ALC892 and compliant with the Azalea standards. Figure 2.5 Audio Connector 2.4.7 COM Connector ARK-1220F provides two 9-pin D-sub connectors, which support RS232/422/485 and RS422/485 serial communication interface ports.

  • Page 26: Hdmi Connector

    2.4.8 HDMI Connector ARK-1220F offers one integrated 19-pin receptacle connector HDMI 1.4b interfaces. The HDMI link supports resolutions up to 3840 x 2160 @ 30 Hz. Figure 2.7 HDMI Connector Table 2.11: HDMI Connector Pin Definition Signal Name HDMI_TX2+ HDMI_TX2-...

  • Page 27: Vga Connector

    Figure 2.8 VGA Connector 2.4.10 DIO Connector ARK-1220F provides an 8 bit DIO. Top-side from left to right are GND, BDI1, BDI2, BDI3,and BDI4, Bottom-side from left to right are GND, BDO1, BDO2, BDO3, and BDO4. Figure 2.9 DIO Connector 2.4.11...

  • Page 28: Installation (Note: This Should Be Performed By A Skilled Person)

    Installation (Note: This should be performed by a skilled Person) 2.5.1 2.5” HDD/SSD Installation Loosen the 4 x screws and remove the rear cover. ARK-1220F User Manual...

  • Page 29: Memory Installation

    Attach the 2.5” SATA HDD/SSD to the rear cover and connect one end of the SATA cable to the HDD/SSD. Replace the rear cover and secure it in place with screws. 2.5.2 Memory Installation Remove the top cover. ARK-1220F User Manual...
  • Page 30 Attach the thermal pad (in the accessory box) to the main board. Install RAM memory into the memory slot. Replace the top cover and secure it using the screws. ARK-1220F User Manual...

  • Page 31: Mpcie/Msata Installation

    2.5.3 mPCIe/mSATA Installation Loosen the 4 x screws and remove the rear cover. Install the mPCIe/mSATA module. Replace the rear cover and secure it with the screws. ARK-1220F User Manual...

  • Page 32: Installation

    2.5.4 M.2 Installation Loosen the 4 x screws and remove the rear cover. Install the M.2 2230 E key module. Replace the rear cover and secure it with the screws. ARK-1220F User Manual...

  • Page 33: Optional Adapter Installation

    2.5.5 Optional Adapter Installation Connect the 3-pin phoenix connector to the DC input. ARK-1220F User Manual...

  • Page 34: Wall Mount Installation (Optional)

    Use 4 x M3x5L screws to secure the ARK-1220F unit to the brackets. Bureau (IO vers l'avant) Utilisez 4 pièces de vis M3x5L pour fixer l'unité ARK-1220F à travers les supports. Wall-Mounted (bottom I/O) Use 4 x M3x5L screws to secure the ARK-1220F unit to the brackets.

  • Page 35: Din Rail Mount Installation (Optional)

    2.5.7 DIN Rail Mount Installation (optional) Unscrew the 3 x M3x5L screws from the back side of ARK-1220F. Secure the DIN rail bracket using three screws on the back. Dévissez les trois vis (M3x5L) à l'arrière de l'ARK-1220F. Revissez le support du rail DIN avec les trois vis.
  • Page 36 ARK-1220F User Manual...

  • Page 37: Bios Settings

    Chapter BIOS Settings This chapter details instructions on setting the BIOS configuration data...

  • Page 38: Introduction

    All configuration data is stored in battery-backed CMOS to ensure the setup information is retained when the power is turned off. This chapter describes the basic navigation of the ARK-1220F BIOS setup screens. ARK-1220F User Manual...

  • Page 39: Entering Bios Setup

    System Date using the <Arrow> keys. Enter new values via the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format, and the time must be entered in HH:MM:SS for- mat. ARK-1220F User Manual...

  • Page 40: Advanced Bios Setup

    The options for any of the Advanced BIOS Setup items can be displayed by highlighting the item using the <Arrow> keys. The Advanced BIOS Setup page is shown below: ARK-1220F User Manual...
  • Page 41 3.2.2.1 Trusted Computing This item allows users to enable or disable Security Device Support. ARK-1220F User Manual...
  • Page 42  This item allows users to enable or disable hibernation. ACPI Sleep State  This item allows users to set the ACPI sleep state. Lock Legacy Resources  This item allows users to lock legacy device resources. ARK-1220F User Manual...
  • Page 43 3.2.2.3 Hardware Monitor PC Health Status  This shows all system information including the CPU/system temperature and voltage. Watchdog Timer  This item allows users to enable or disable the Watchdog timer function (before booting the OS). ARK-1220F User Manual...
  • Page 44 – Digital I/O Configuration This item allows users to set Digital I/O Pin 5 through 8 to Low or High. ARK-1220F User Manual...
  • Page 45  Set Parameters of Serial Port 1 (COM 1)  This item allows users to configure Serial Port 1. Set Parameters of Serial Port 2 (COM 2)  This item allows users to configure Serial Port 2. ARK-1220F User Manual...
  • Page 46 This item allows users to enable or disable Serial Port 1 (COM). Change Settings  This item allows users to specify the settings for a super I/O device. RS485 Auto Flow  This item allows users to enable or disable RS485 auto flow. ARK-1220F User Manual...
  • Page 47 This item allows users to enable or disable Wake On Alarm Event. If the Fixed- Time option is selected for this item, the system will wake at the hr:min:sec specified. If the DynamicTime option is selected, the system will wake at the cur- rent time + specified minute(s). ARK-1220F User Manual...
  • Page 48 This item allows users to enable or disable console redirection for Microsoft Windows Emergency Management Services (EMS). Legacy Console Redirection  This item allows users to configure the legacy console redirection serial port. Console Redirection  This item allows users to configure the console redirection settings. ARK-1220F User Manual...
  • Page 49 ARK-1220F User Manual...
  • Page 50 3.2.2.8 CPU Configuration CPU Information  This item allows users to view the CPU, speed, and core information. CPU Power Management  This item allows users to configure the CPU Power Management options. ARK-1220F User Manual...
  • Page 51 This item allows users to enable or disable turbo mode. Boot Performance Mode  This item allows users to configure the boot performance mode for optimum per- formance. C-States  This item allows users to enable or disable C states. ARK-1220F User Manual...
  • Page 52 3.2.2.9 PCI Subsystem Settings This item allows users to set PCI Subsystem Settings. ARK-1220F User Manual...
  • Page 53 This item allows users to configure the maximum time the device will wait before reporting itself to the host controller. The Auto option uses the default value, which is 100 ms for a root port. For a hub port, the default delay time is deter- mined by the hub descriptor. ARK-1220F User Manual...
  • Page 54 This item allows users to enable or disable UEFI network stacks. Ipv4 PXE Support  This item allows users to enable or disable Ipv4 PXE boot support. If disabled, the IPV4 PXE boot option will not be available. ARK-1220F User Manual...
  • Page 55  This item allows users to configure the time the system waits before PXE boot Media Detect Count  This item allows users to configure the number of times the system checks for the presence of media. ARK-1220F User Manual...
  • Page 56 This item allows users to configure the execution of UEFI and Legacy Storage OpROM. Video  This item allows users to configure the execution of UEFI and Legacy Video OpROM. Other PCI Devices  This item allows users to configure the OpROM execution policy for other devices. ARK-1220F User Manual...
  • Page 57 3.2.2.13 Security Configuration TXE EOP Message  This item allows users to enable or disable the sending of an EOP message before entering OS. ARK-1220F User Manual...

  • Page 58: Chipset Configuration

    This item allows users to access and configure South Bridge items. Uncore Configuration  This item allows users to access and configure Uncore items. South Cluster Configuration  This item allows users to access and configure South Cluster items. ARK-1220F User Manual...
  • Page 59 3.2.3.1 North Bridge Max TOLUD  This item allows users to configure the maximum value of TOLUD. ARK-1220F User Manual...
  • Page 60 This item allows users to select the DVMT5.0 total graphics memory size used by the internal graphics device. GT PM Support  This item allows users to enable or disable GT PM support. PAVP Enable  This item allows users to enable or disable PAVP. ARK-1220F User Manual...
  • Page 61 This item allows users to access and configure the SATA device settings. USB Configuration  This item allows users to access and configure the USB configuration settings. Miscellaneous Configuration  This item allows users to enable or disable miscellaneous functions/features. ARK-1220F User Manual...
  • Page 62 HD-Audio Configuration Settings  HD-Audio Support  This item allows users to enable or disable HD audio support. ARK-1220F User Manual...
  • Page 63 LPSS Configuration  PCI Express Configuration  Compliance Mode  This item allows users to enable or disable compliance mode. PCIE Wake  This item allows users to enable or disable Wake from PCIE. ARK-1220F User Manual...
  • Page 64 This item allows users to enable or disable the onboard LAN1 controller. Onboard LAN2 Controller  This item allows users to enable or disable the onboard LAN2 controller. PCIE Wake from S5  This item allows users to enable or disable Wake from S5 via PCIE. ARK-1220F User Manual...
  • Page 65 SATA controller supports two internal SATA ports (up to 3Gb/s per port). Port 1  This item allows users to enable or disable the SATA port. SATA Device Type  This item allows users to identify the SATA port connected to an SSD or HDD. ARK-1220F User Manual...
  • Page 66 This item allows users to enable or disable the corresponding USB port from reporting a device connection to the controller. XHCI Disable Compliance Mode  This item allows users to enable or disable XHCI compliance mode. The default setting is disabled. ARK-1220F User Manual...
  • Page 67 SMM-based flash protection. RTC Lock  This item allows users to enable or disable the RTC lock feature. When enabled, bytes 38h ~ 3Fh in the lower/upper 128-byte bank of RTC RAM will be locked. ARK-1220F User Manual...

  • Page 68: Security

    Select the Security tab of the main BIOS Setup Utility menu. To access the sub menu for each item, select the item and press <Enter>. Change Administrator/User Password  This item allows users to setup the administrator account and configure the user password settings. ARK-1220F User Manual...

  • Page 69: Boot

    This item allows users to enable or disable the FastBoot function. When enabled, most probes are skipped to reduce the time required for boot up. New Boot Option Policy  This item allows users to configure policies for newly detected UEFI boot options. ARK-1220F User Manual...

  • Page 70: Save & Exit

    This item allows users to save all configuration changes as user defaults. Restore User Defaults  This item allows users to restore the system configuration options to the user default settings. Boot Override  This item allows users to enable or disable the boot priority override function. ARK-1220F User Manual...

  • Page 71: Appendix A Watchdog Sample Code

    Appendix Watchdog Sample Code...

  • Page 72: Watchdog Function

    ;==================================================== ;66H ;WDT timer time-out value ;bit[7:0]=0~255 ;==================================================== mov dx,SCH3114_IO + 66h mov al,01h out dx,al ;==================================================== ;bit[0] status bit R/W ;WD timeout occurred =1;WD timer counting = 0 ;==================================================== mov dx,SCH3114_IO + 68h ARK-1220F User Manual...
  • Page 73 .exit ARK-1220F User Manual...
  • Page 74 ARK-1220F User Manual...

  • Page 75: Susi Api

    Appendix SUSI API Introduction...

  • Page 76: Susi Api Introduction

    — such as temperature and voltage. However, due to the inaccuracy of many commercially available hardware monitoring chips, Advantech has developed a unique scheme for hardware monitoring that uses a dedicated micro-processor with algorithms specifically designed for providing accu- rate and reliable, real-time data.
  • Page 77 ARK-1220F User Manual...
  • Page 78 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
