NetComm HS960 Hotspot – Firmware Upgrade Procedure

The following process outlines how to perform a HS960 firmware upgrade.

1. Connect a Windows XP based computer via Ethernet directly to one of the

LAN ports on the back of the HS960.

2. Double check that the TCP/IP protocol settings for the network card on the

Windows XP computer are set to 'Obtain an IP address automatically' i.e

DHCP client.

3. If you haven't already power on both the computer and HS960.

4. Disable any software based firewalling, should it be running on the computer.

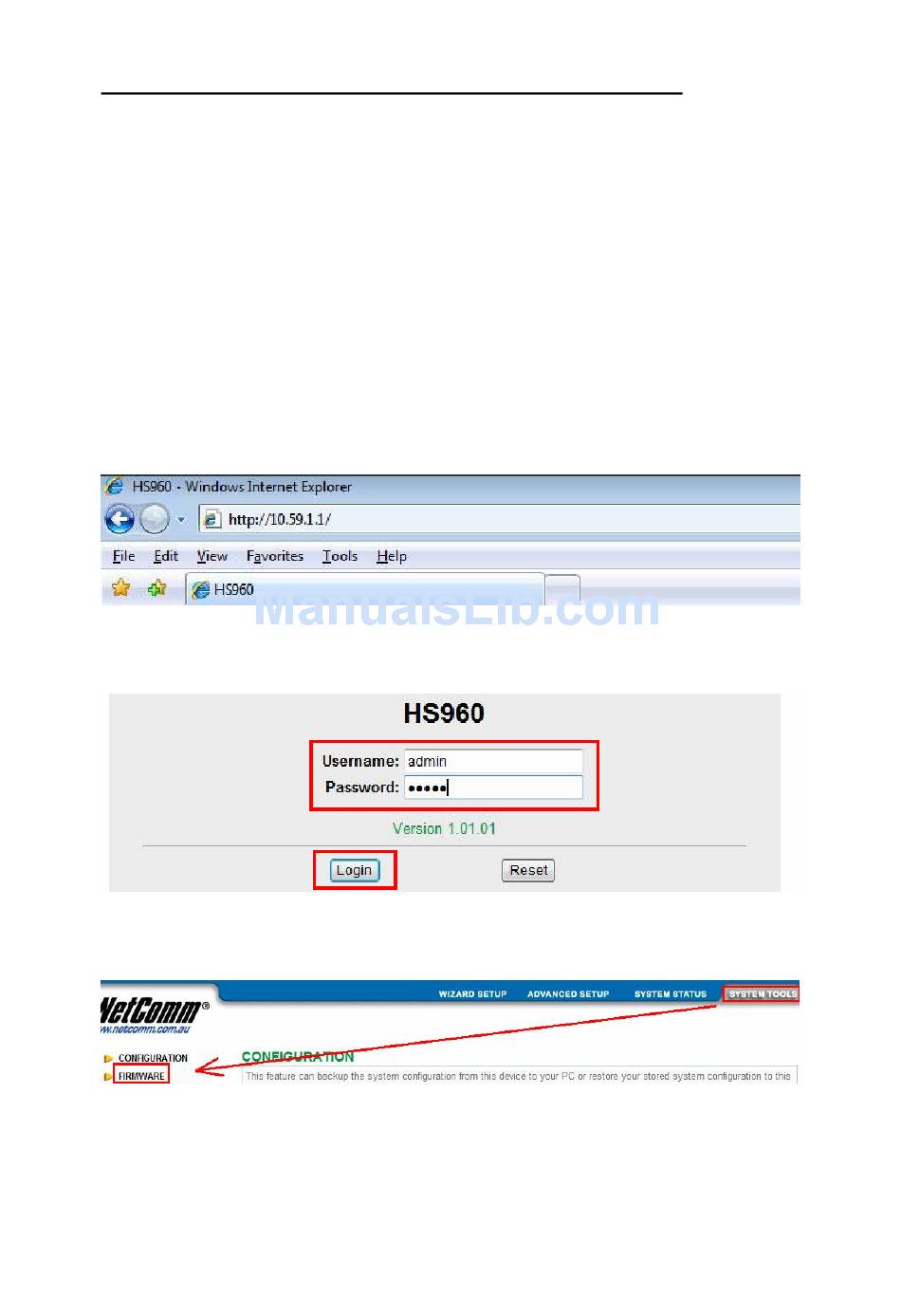

5. Access the HS960s web-based interface by launching the Internet Explorer

web-browser and opening the address

6. When prompted type in "admin"' / "admin"' respectively for the username /

password followed by selecting the 'Login' button.

7. From the HS960s web based interface select 'System Tools' -> 'Firmware'

then the 'Browse' button.

8. Locate and select the 'HS960V1.01.01.bin' firmware upgrade file then

select the 'Apply' button to initiate the firmware upgrade.

http://10.59.1.1

Page 1 of 2

Table of Contents

Need help?

Do you have a question about the HS960 and is the answer not in the manual?

Page 1 Windows XP computer are set to ‘Obtain an IP address automatically’ i.e DHCP client. 3. If you haven’t already power on both the computer and HS960. 4. Disable any software based firewalling, should it be running on the computer. 5. Access the HS960s web-based interface by launching the Internet Explorer web-browser and opening the address 6.
Page 2 ‘1.01.01’. 13. Once the version change has been verified complete the procedure by resetting the HS960 to factory defaults. This is done by holding the recessed reset button (back of unit) for 10 seconds whilst the unit is powered. 14. Please wait at least 1-2 minutes after releasing the reset button for the unit to finish the reset process.
