NetMedia VS4X1 Specifications

VS4X1
The NetMedia VS4X1 Video Switcher sequences 2, 3, or 4 video inputs through 1 output. Select the
number of inputs and set the dwell time from 1 to 63 seconds. It is compatible with CCTV video cam-
eras including all NetMedia UTP/CAT5 and Power Over Coax models. View the output on a monitor or
modulate it for distribution to multiple televisions.
Product Includes:
1. Video Switcher Assembly (4 - Video Input Connectors, Video Output Connector,
Power Connector, End Plate, Switch Bank).
2. 12V DC 100mA Power Transformer (Center Conductor Positive).

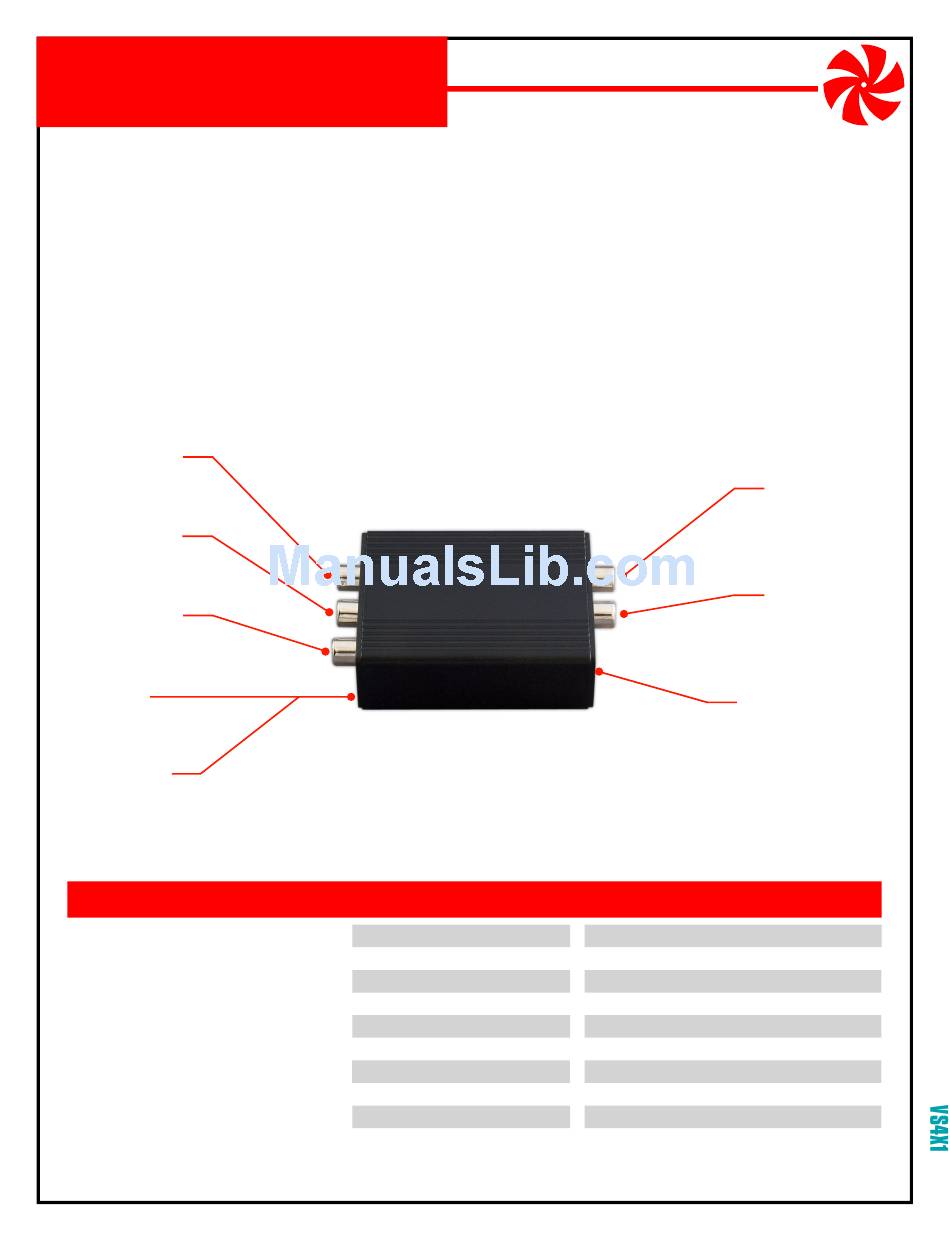

Video Input 2
Yellow connector for
input device 2.
Video Input 3
Yellow connector for
input device 3.
Video Input 4
Yellow connector for
input device 4.
End Plate
Remove to access
Switch Bank.
Switch Bank
Behind End Plate - sets dwell
time and number of inputs.
FEATURES
Selectable for 2 to 4 inputs
Selectable for 1 to 63 second dwell
Microprocessor controlled
Supports NTSC or PAL in color and B/W
Setup retained during power outage
Tough aluminum housing
Includes power supply
1 year limited warranty
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
SPECIFICATIONS
Dwell Time:
Video Bandwidth:
Video Crosstalk:
Video Output Connector:
Video Input Connectors:
Power Requirement:
Power Connector:
Housing Size:
Weight:
Video Switcher
2-4 inputs with 1 output
Power Connector
1 to 63 seconds
12MHz
-70 db
Female RCA, 75 Ohm
4 - Female RCA, 75 Ohm
12V DC, 100mA
5.5mm OD, 2.1mm ID, center positive
3.25" long x 2.2" wide x 0.9" high
3.5 oz.
(subject to change without notice)
Video Output
Black connector for
output device.
Video Input 1
Yellow connector for
input device 1.
12V DC 100mA,
center positive.
MAN-VS4X1 REV0704A
