NetMedia NM-iSwitchHD-4X1 Quick Start Manual

NM-iSwitchHD-4x1

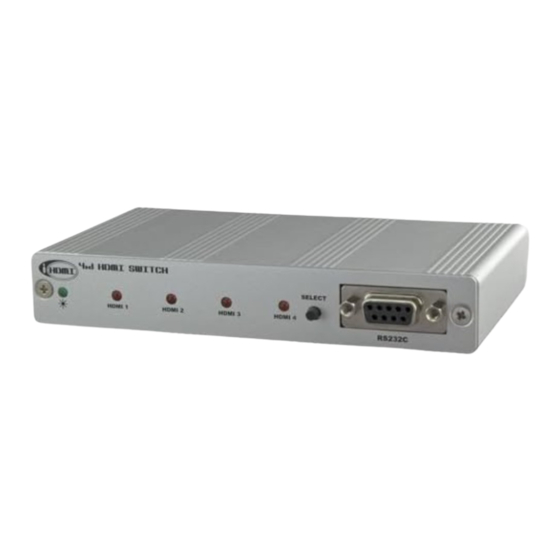

The NetMedia® iSwitchHD™ 4x1 is an intelligent auto-sensing four-port High Definition Multimedia
Interface (HDMI®) switch. It automatically senses and connects whichever component was last pow-
ered up to provide spontaneous access to multiple HDMI devices such as Satellites, Blu-rays, video
game consoles, or computers. The iSwitchHD-4x1™ also includes a serial port for automated control
and advanced cable setup. It is perfect for home theaters, boardrooms, schools, and churches. Cascade
additional 4x1 switches to make even larger intelligent arrays (7x1, 10x1, 16x1, etc.).
Product Includes:
1. iSwitchHD-4x1 Switch Assembly (1-HDMI Output, 4-HDMI Inputs,
Power Input, Power LED, 4-Input LED's, Select Button, Serial Port).
2. 5V DC 1A Power Transformer (Center Conductor Positive).

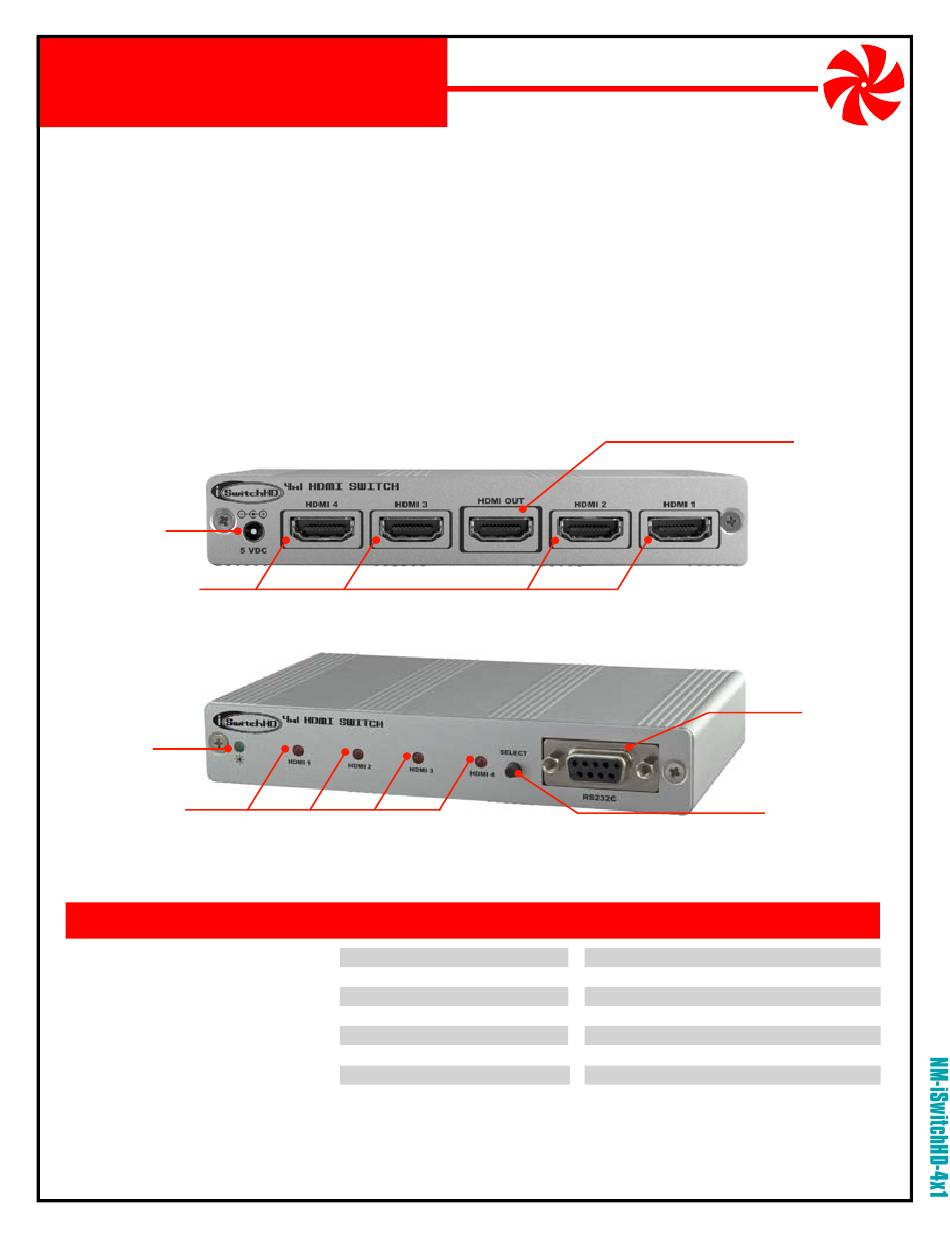

Power Input
5V DC 1A
HDMI Inputs 1-4
Connect to HDMI
compatible sources.
Power LED
Indicates Power
Input LED's 1-4
ON indicates available input,
PULSING indicates selected input.
FEATURES
HDMI 4-input 1-output switch
Auto-senses and connects when source turns on
DVI/HDMI computer resolution up to 1920x1200
480i, 480p, 720p,1080i, 1080p, & Deep Color
Manual override source-select button
Cascade multiple units for 7x1, 10x1, 16x1, etc.
Serial port for computer and automated control
Equalization/pre-emphasis for long cable runs
One year limited warranty
© 2010 NetMedia Inc. All rights reserved. NetMedia, iSwitchHD, and iSwitchHD-4x1 are either registered trademarks or trademarks of NetMedia, Inc. HDMI is a trademark or registered trademark of HDMI
Licensing LLC in the United States and other countries. Any other trademarks or trade names mentioned are the property of their respective owners.
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Hands-Free Intelligent Auto-Sensing
SPECIFICATIONS
Output Signal/Connector:
Input Signal/Connectors:
Supported Formats:
Serial Port:
Power Requirement:
Power Connector:
Size:
Weight:
4x1 HDMI Switch
1 - HDMI Connector
4 - HDMI Connectors
480i, 480p, 720p,1080i, 1080p, Deep Color
RS232c, 9600 baud, N, 8, 1
5V DC 1A
4.0mm OD, 1.7mm ID, center positive
3.9" long x 5.5" wide x 0.9" high
8.0 oz.
HDMI OUT
Connects to HDMI
compatible display
device.
Serial Port
Female DB9 connects to
RS232 device such as PC
for programmatic control.
Select Button
Manually selects
HDMI input source.
(subject to change without notice)
MAN-iSwitchHD-4x1 REV1009A
