NM-iHDMI-4x1-CE
The NetMedia® iHDMI™ 4x1 is an intelligent auto-sensing four-port High Definition Multimedia Inter-
face (HDMI) switch. It automatically senses and connects whichever component was last powered up
to provide spontaneous access to multiple HDMI devices such as Satellites, Blu-rays, video game
consoles, or computers. It is perfect for home theaters, boardrooms, schools, and churches. Cascade
additional 4x1 switches to make even larger intelligent arrays (7x1, 10x1, 16x1, etc.).

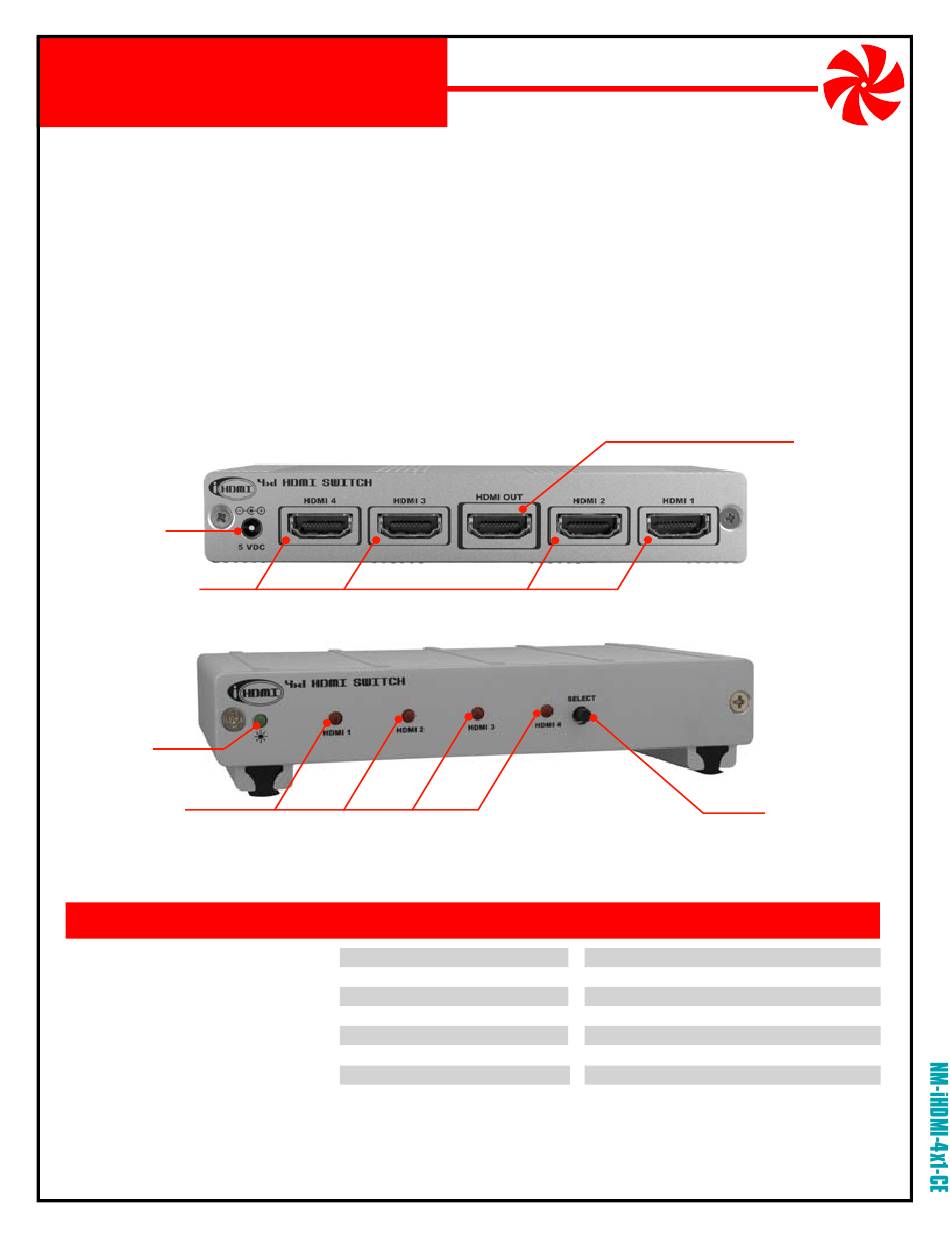

Product Includes:
1. iHDMI-4x1 Switch Assembly (HDMI Output, 4-HDMI Inputs,
Power Input, Power LED, 4-Input LED's, Select Button).
2. 5V DC 1A Power Transformer (Center Conductor Positive).
Power Input
5V DC 1A
HDMI Inputs 1-4
Connect to HDMI sources.
Power LED
Indicates Power
Input LED's 1-4
ON indicates available input,
PULSING indicates selected input.
FEATURES
HDMI v. 1.3a 4-input 1-output switch
Auto-senses and connects when source turns on
DVI/HDMI computer resolution up to 1920x1200
480i, 480p, 720p,1080i, 1080p, & Deep Color
Manual override source-select button
Cascade multiple units for 7x1, 10x1, 16x1, etc.
One year limited warranty
© 2008 NetMedia Inc. All rights reserved. NetMedia, iHDMI, and iHDMI-4x1 are either registered trademarks or trademarks of NetMedia, Inc. Any other trademarks or trade names mentioned are the property of their respective owners.
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Intelligent HDMI Switch
SPECIFICATIONS
Output Signal/Connector:
Input Signal/Connectors:
Supported Formats:
Power Requirement:
Power Connector:
Size:
Weight:
4x1 HDMI Auto-Sensing Switch
480i, 480p, 720p,1080i, 1080p, Deep Color
4.0mm OD, 1.7mm ID, center positive
3.9" long x 5.5" wide x 0.9" high
HDMI OUT
Connects to HDMI
display device.
Select Button
Manually selects
HDMI input source.
HDMI 1.3a
4 - HDMI 1.3a
5V DC 1A
8.0 oz.
(subject to change without notice)
MAN-iHDMI-4x1-CE
REV1003A
