NetMedia POEmax IPS87100 Quick Start Manual

POEmax
The NetMedia® POEmax™ Series eight-port network switches have up to seven Power over Ethernet (PoE)
outputs. The number of PoE devices that they can run depend on the model, how much current each device
requires, and on the power supply used for the POEmax. The 100 Watt (W) model supplies enough power for
seven devices to draw the maximum load (13W each). The 50W models run four or seven devices in any combi-
nation that does not exceed a total of 47W. All POEmax models include a unique PoE-Powered capability so that
PoE output models can redistribute up to 10W among the devices. From cubicles and ceilings to server and print
rooms, POEmax's small size, flexibility and durability makes it perfect for IP cameras (iViewHD), VoIP phones, data
extension, and standard TCP/IP home or office building infrastructure.
Product Includes:

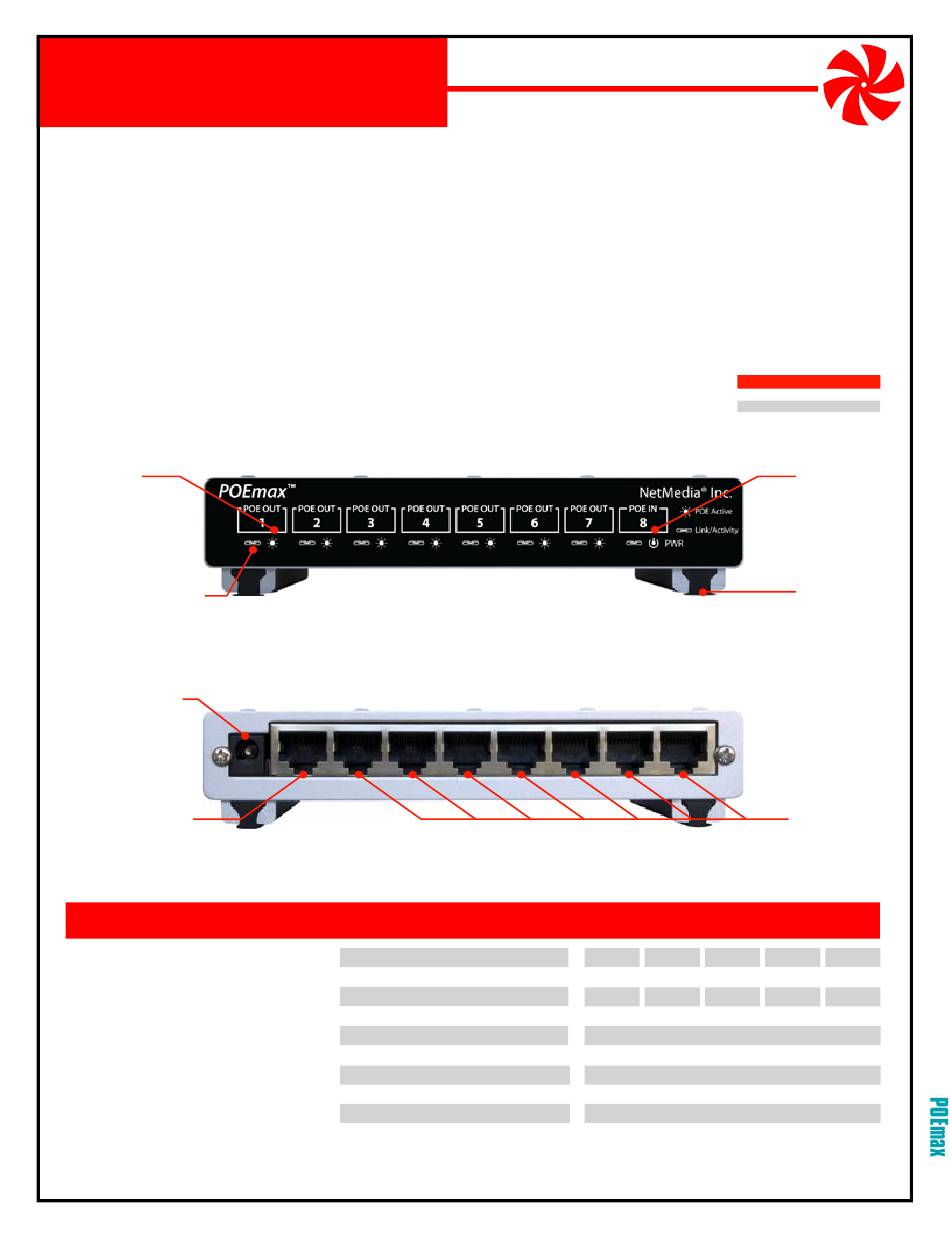

1. POEmax Switch Assembly (8 RJ-45 Ethernet Ports w/ 1 PoE Input, 8 Link-Activity
LED's, 1 Power LED, Power Input Jack, 2 Slide Rails w/Rubber Feet).
2. 48VDC Power Transformer (Center Conductor Positive); IPS87100 Model: 100W
(2.5Amp); IPS8450/8750 Models: 50W (1Amp); IPS8000/8400 Models: None, PoE.
PoE LED's
Orange ON
indicates PoE active.
Link/Activity LED's
Green ON indicates link;
flashing indicates activity.
PS Power Input
48VDC 50W/100W
PoE Power Input
802.3af PoE-Powered
works without PS for up
to 10W total out.
FEATURES
Eight-port Power over Ethernet (PoE) switch
Up to seven PoE outputs and one PoE input
100 Watt model supports maximum PoE load
50 Watt model provides 47W PoE output
Unique PoE-Powered mode provides 10W PoE
PoE-Powered works with no local power outlet
Extends cable runs another 100M
802.3i, 802.3u, 802.3af compliant
Stackable, non-skid desktop, or wall-mountable
Compact fanless rugged silver-aluminum case
One year limited warranty
© 2009 NetMedia Inc. All rights reserved. NetMedia, and POEmax are either registered trademarks or trademarks of NetMedia, Inc. Any other trademarks or trade names mentioned are the property of their respective owners.
NetMedia, Inc., 10940 N. Stallard Place, Tucson, Arizona 85737 (520) 544-4567 Fax: (520) 544-0800 Email: sales@netmedia.com www.netmedia.com
Unique PoE-Powered Switch
Eight-Port Ethernet Switch w/0-7 PoE Out
SPECIFICATIONS
Available PoE Output (Watts, Ports):
Power Supply:
Power Supply Weight:
Switch Weight:
Power Connectors:
Ethernet Ports:
LED Indicators:
Supported Protocols/Standards:
Switch Power Consumption:
Switch Size:
Watts
13W via PoE IPS8000 & IPS8400
50W 48VDC
100W 48VDC IPS87100
Remove rubber inserts
Eight auto speed and uplink
sensing 10/100TX Ethernet ports.
8000 8400 8450
No PoE
10W, 4 PoE 47W, 4 PoE 47W, 7 PoE
PoE 13W PoE 13W 48VDC 50W
NA
NA 9.6 oz.
9.5 oz.
9.9 oz. 9.9 oz.
5.5mm OD, 2.0mm ID, center positive; PoE RJ-45
8 RJ-45 10/100TX Auto Speed/Uplink; 0-7 PoE Out; 1 PoE In
8 Link/Activity; 0-7 PoE Active; 1 Power
802.3i 10BASE-T; 802.3u 100BASE-TX; 802.3af PoE
3 Watts
3.0" long x 5.5" wide x 1.25" high
(subject to change without notice)
Power Supply
(Not Shown)
POEmax Model
IPS8450 & IPS8750
Power LED
Red ON
indicates power.
Slide Rails
for wall mounting.
RJ-45 Jacks
8750 87100
97W, 7 PoE
48VDC 50W 48VDC 100W
9.6 oz. 1.25 lbs.
10.2 oz. 10.2 oz.
MAN-POEmax REV1003A
