INTEX OWNER'S MANUAL
Quick-Fill™ Electric Air Pump
Model AP644; 220 – 240 Volt ~ 50 Hz; 200 W
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
WARNING
• Adult use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 10 minutes at a time. Unplug and let cool at least 10 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into the inflation or deflation connector.
• If the AC supply cord is damaged, it must be replaced by the manufacturer or its service
agent or similarly qualified persons in order to avoid a hazard.
• To reduce the risk of electric shock, do not expose to rain. Store indoors.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE,
ELECTRIC SHOCK, BURNS OR OTHER INJURY.

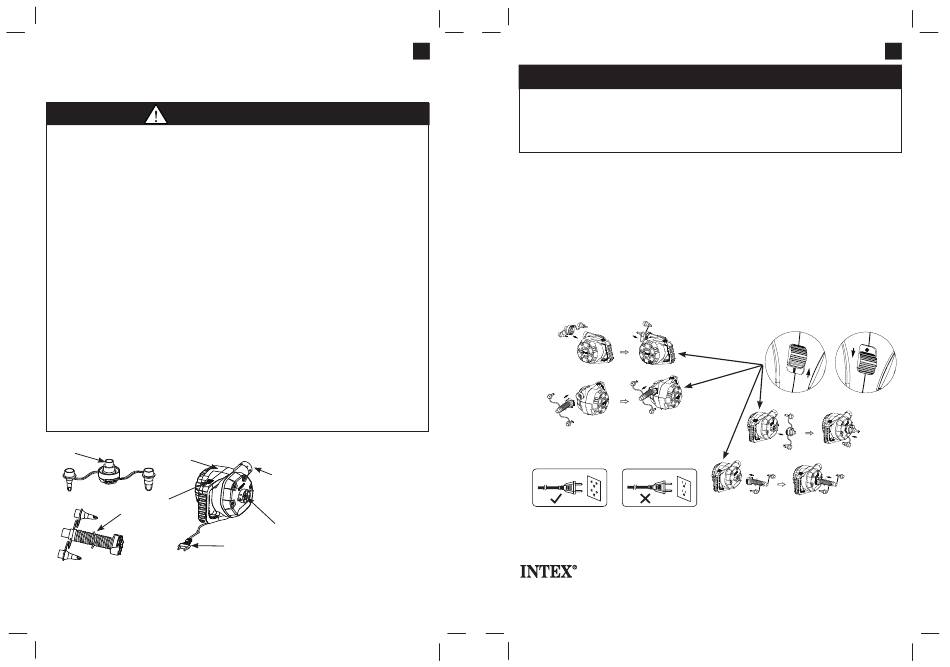

NAMES OF PARTS
6
1
4
7
5
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
SAVE THESE INSTRUCTIONS
Page 1
(167IO) AP644 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 05/26/2019
167 167
IO IO
PARTS DESCRIPTION:
1. PUMP
2 2. INFLATION CONNECTOR
3. DEFLATION CONNECTOR
4. SWITCH
5. AC LINE CORD
6. NOZZLES
7. AIR HOSE
3
167-*IO-R0-2005
CAUTION
In order to avoid a hazard due to inadvertent resetting of the
thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
INSTRUCTIONS
General
• Return pump, hose and nozzles to package when not in use.
• No specific air pump maintenance is required.
INFLATION
1. Attach nozzle or air hose to the inflation connector if necessary and hold pump against inflation valve on item to be
inflated. See Fig (1).
NOTE: On large items like inflatable boats and large air mattresses, the pump will fit directly into the inflation valves and
provide faster inflation times. Use the appropriate nozzle on small inflation valves as on small air mattresses, etc.
2. Plug in the AC line cord into an AC electrical outlet. See Fig (2).
3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3).
DEFLATION
1.
Attach nozzle or air hose to the deflation connector if necessary and hold pump against inflation valve on item to be
deflated. See Fig (4).
NOTE: On large items like inflatable boats and large air mattresses, the pump will fit directly into the inflation valves and
provide faster deflation times. Use the appropriate nozzle on small inflation valves as on small air mattresses, etc.
2.
Plug in the AC line cord into an AC electrical outlet. See Fig (2).
3. SWITCH ON: Press "I"; SWITCH OFF: Press "0". See Fig (3).
FIG (1): ATTACH NOZZLE OR
ATTACH HOSE
220-240V 110-120V
FIG (2)
©2019 Intex Marketing Ltd. - Intex Development Co. Ltd.- Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos
reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China.
®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas
utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in einigen Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/
an Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the
European Union by/Distribué dans l'Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading
B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands
www.intexcorp.com
SAVE THESE INSTRUCTIONS
Page 2
(167IO) AP644 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 05/26/2019
167 167
IO IO
FIG (3): SWITCH
FIG (4): ATTACH NOZZLE OR
ATTACH HOSE
