Intex Quick-Fill AP643 Owner's Manual

INTEX
Model AP643 110 – 120Volt ~ 60Hz 2A
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• For Indoor Household Use Only.
• Adult use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 10 minutes at a time. Unplug and let cool at least 10 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into the inflation or deflation connector.
• If the AC supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified
persons in order to avoid a hazard.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE, ELECTRIC SHOCK,
BURNS OR OTHER INJURY.
• To reduce the risk of electric shock or injury, use indoors only, do not expose to rain. Store indoors.
SERVICING OF A DOUBLE-INSULATED PRODUCT:
In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided
on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated
product requires extreme care and knowledge of the system, and should be done only by qualified service personnel.
Replacement parts for a double-insulated product must be identical to those parts in the product.
A double-insulated product is marked with the words "DOUBLE INSULATION" or "DOUBLE INSULATED" and with the
symbol .
6
7
NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
General
• This appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one
way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to
install the proper outlet. Do not change the plug in any way.
• Return pump, hose and nozzles to package when not in use.
READ AND SAVE THESE INSTRUCTIONS
® OWNER'S MANUAL

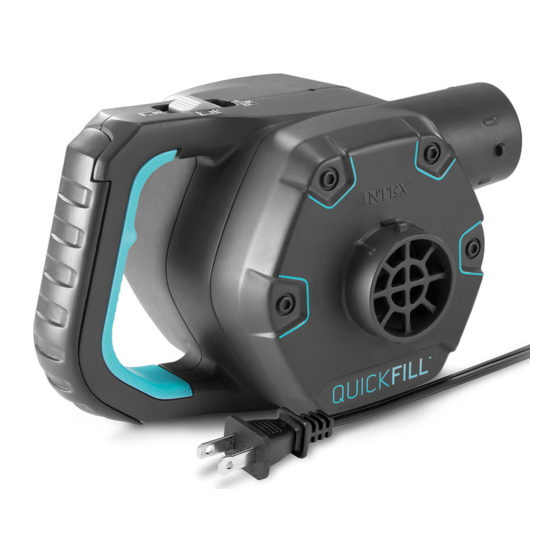

Quick-Fill™ Electric Air Pump
WARNING
CAUTION
NAMES OF PARTS
4
5
OPERATING INSTRUCTIONS
Page 1
(167PO) AP643 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 05/12/2021
1
2

PARTS DESCRIPTION:

1. PUMP
2. INFLATION CONNECTOR
3. DEFLATION CONNECTOR
4. SWITCH
5. AC LINE CORD
6. NOZZLES
7. AIR HOSE
3
167
PO
167-*PO-R0-2205
