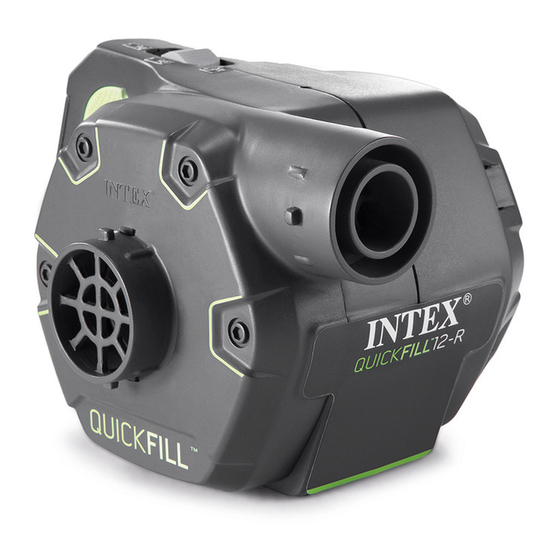

Quick-Fill™ Electric Air Pump, Model AP641
READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
• Adult Use Only.
• Household use only.
• Do not drop unit into water or expose unit to rain or water.
• Do not direct air stream at face or body.
• Do not operate for more than 10 minutes at a time. Unplug and let cool at least 30 minutes.
• Unplug unit when not in use.
• Do not obstruct vent holes or open source.
• Do not insert objects into inflation or deflation connectors. or deflation connectors.
FOLLOW THESE RULES AND ALL INSTRUCTIONS TO AVOID PROPERTY DAMAGE, ELECTRIC SHOCK,
BURNS OR OTHER INJURY.
• To reduce the risk of electric shock, do not expose to rain. Store indoors. CAUTION: This product has more than one connection to
the source of supply. To reduce the risk of electrical shock, disconnect all such connections before servicing.
2
1
4
9
Inflate and deflate
3
with batteries.
Inflation OFF and recharge mode ON with AC or DC power.
General
• Pump must be charged before use and is not designed for inflation directly from household AC power sources.
• If necessary, the initial charge can be made using the DC power cord plugged into an automobile cigarette lighter or 12V DC
accessory receptacle for one hour. After the first charge, it may be used for inflation (without cords) and recharged using
either the AC adapter or Fast-charged (1 hour only) using the 12 Volt DC power cord. See specific instructions below.
• The " " position turns the pump OFF and is also the RECHARGE mode position.
• The batteries are permanently sealed in the pump and cannot be removed or replaced. As the pump weakens from use,
recharge the batteries. Do not wait until they are fully discharged.
• Do not dispose of air pump and its batteries in fire. Check your local regulations for proper disposal instructions.
• Keep away from heat or direct sunlight.

MAINTENANCE INSTRUCTIONS:

No specific air pump maintenance is required. Air pump has no user serviceable parts.

MOVING AND STORAGE INSTRUCTIONS:

Move the product, air pump and accessories to the power source location. Make sure the power cords are free of twist, kink and
knot. Fold the power cords loosely, and return pump, DC power cord, AC adapter and nozzles to package when not in use.

CHARGE/RECHARGE INSTRUCTIONS

Charging the pump using household 110-120 AC voltage:
1. The pump must be charged for 4 hours or overnight with household 110-120 AC voltage.
2. Plug the AC adapter power cord into the air pump power receptacle (FIG. 1).
3. Plug the other end of the AC adapter power cord into a household 110-120 Volt AC electrical outlet (FIG. 2).
" position to charge/recharge the batteries (FIG. 3).
4. Slide the switch to "
5. When the pump is fully charged, remove the power cord (FIG. 4).
FIG (1)
READ AND SAVE THESE INSTRUCTIONS
OWNER'S MANUAL
®
12V 8A Rechargeable Battery
WARNING
CAUTION
NAMES OF PARTS
5
6

OPERATING INSTRUCTIONS

220~240V
110~120V
√
FIG (2)
Page 1
(166PO) AP641 ELECTRIC PUMP ENGLISH 4.875" X 7.25" 05/06/2021

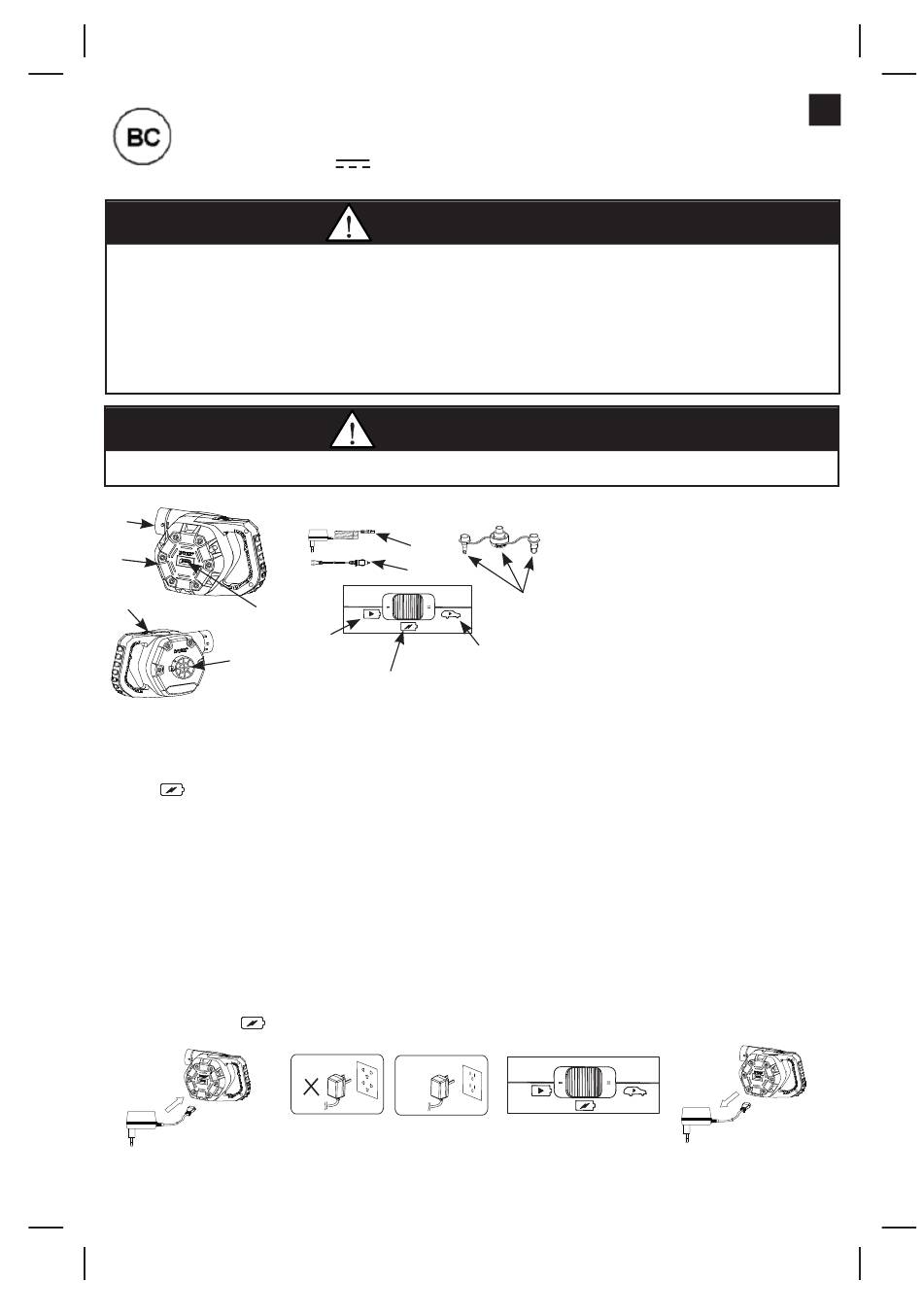

PARTS DESCRIPTION:

1. PUMP
2. INFLATION CONNECTOR
3. DEFLATION CONNECTOR
4. SWITCH
5. DETACHABLE 12V DC
7
8
6. AC ADAPTER
Inflate and deflate
7. NOZZLES
with DC power.
8. SWITCH OPERATION DETAIL
9. VENT HOLES / SLOTS
FIG (3)
166
PO
POWER CORD
FIG (4)
166-*PO-R0-2205
