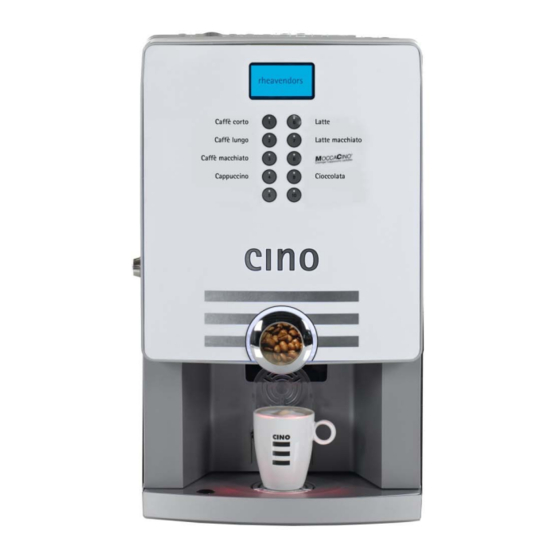

Cino eC Installation And Maintenance Manual
Hide thumbs
Also See for eC:
- Installation and maintenance manual (46 pages) ,
- Installation and maintenance manual (51 pages)
Related Manuals for Cino eC
Summary of Contents for Cino eC

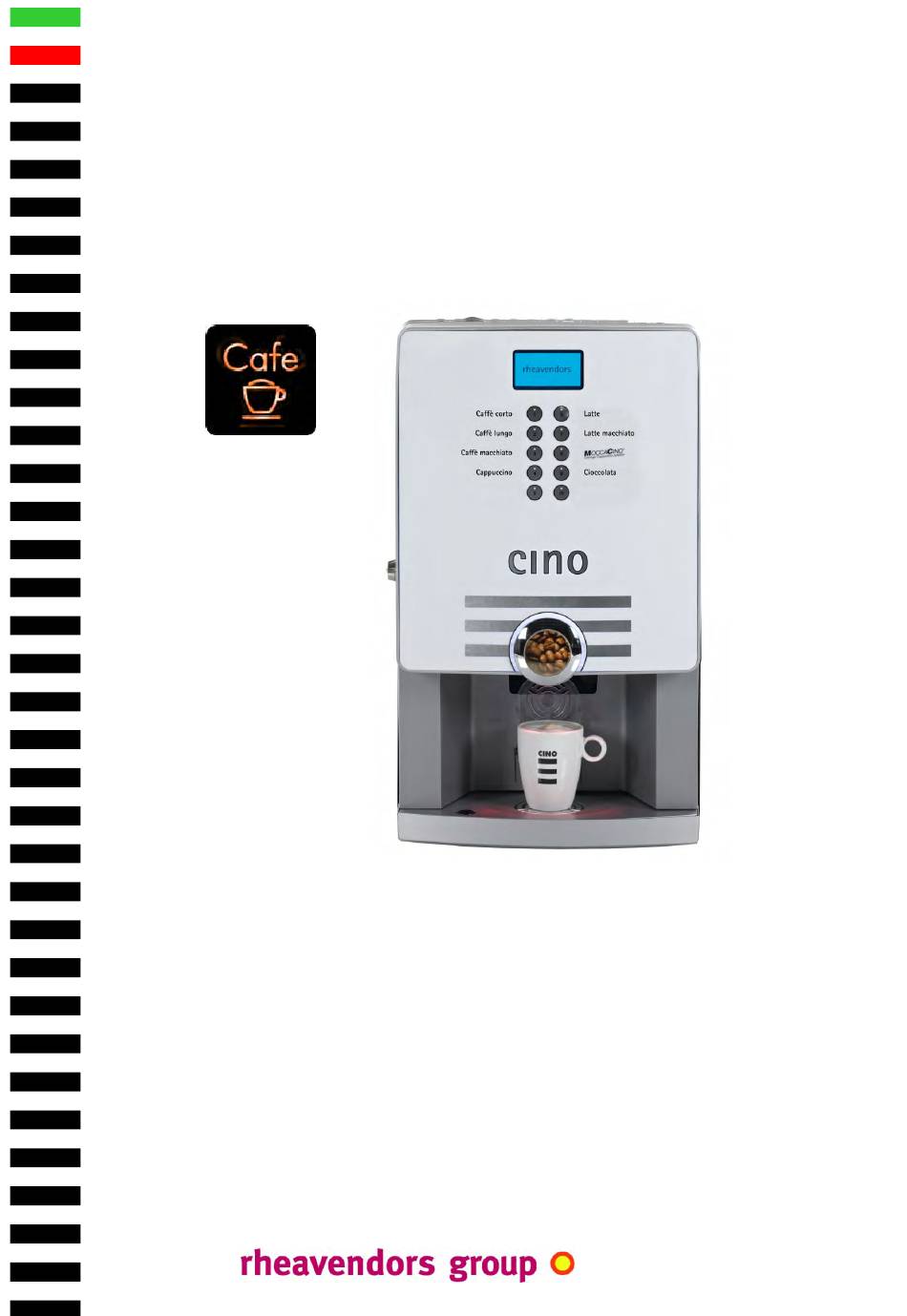

- Page 1 INSTALLATION AND MAINTENANCE MANUAL Original instructions MAN1010105 rel. 00 dated 04.11.2011 _________________________________________ www.rheavendors.com...
- Page 2 04.11.2011 First issue; REL. DATED DESCRIPTION MAN1010105 rel. 00 dated 04.11.2011 page no. 2 of 46 page...
- Page 3 Rheavendors Industries S.p.A.’s conditions obligations with reference to guarantee and repair; any other term or condition, either verbal or written, is not applicable, including those in the purchaser’s purchase orders, if not explicitly accepted and signed by Rheavendors Industries S.p.A.;...
- Page 4 CEI EN 60335-2-75/A12; EN 60335-1: 2002 + A1: 2004 + A2: 2006 + A11: 2004 + A12:2006 + A13: 2008 + A14: 2010 + 60335-1/EC: 2010; EN 60335-2-75: 2004 + A1: 2005 + A11: 2006 + A2: 2008 + A12: 2010;...
-
Page 5: Table Of Contents
44 hydraulic diagram page 46 in the listed chapters, the manual describes a cino eC vending machine in its hardware and software components for a complete and fully-aware use of all machine functions; due to the large variety of available options and the constant technical update of our vending machines, some special device or function might be indicated and described not in the manner you expect;... -
Page 6: Legend
01.01. abbreviations and pictograms dispensing cycle of drinks based on instant products and coffee beans; machines with internal water tank; machines with external water supply;... -
Page 7: Introduction
02.01. copyright © Rheavendors Industries S.p.A.; all rights reserved; information this document contains some confidential information Rheavendors Industries S.p.A.’s exclusive property; the content of this document can be neither disclosed in favour of third parties, nor copied or reproduced in any form whatsoever, either fully or... -
Page 8: Technical Data
03.01. dimensions height: 560mm height (including opened water door): 625mm width: 315mm depth: 530mm 03.02. weight 26 kg 03.03. supply water - connection by means of a solenoid valve with 3/8“ gas male face: from 0.1 MPa to 0.8 Mpa;... - Page 9 (see 09.06.); 03.22. notes the water and energy supply tolerance limits that can ensure a good and proper operation of the cino eC machine are: water: - total hardness: from 10 °F to 25 °F (*) - recommended conductivity: 400 μS @ 20 °C...
-
Page 10: Configurations
04.01. cino eC configurations are numerous; they are coded by means of some categories exemplified here below in the abbreviation of the machine: a. product canisters number of instant products and coffee beans: b. water supply... - Page 11 04.04. LM selection cino eC can produce a drink called Latte Macchiato, composed by milk and coffee and served in the cup in differently coloured bands, typically milk, coffee and milk; to get this special drink, refer to a specific package of instructions, every step of which is called “LM dispensing cycle”;...
-
Page 12: Presentation
05.14. door switch 05.14. service key 05.23. water door 05.22. instant product canister 05.22. internal water tank 05.15. e 05.37.b. protection carter 05.22. coffee beans canister 05.16. 05.18. flash key housing grinder 05.15. internal button (PROG) 05.19. - Page 13 05.25. product motor 05.30. powder extraction 05.19. coffee brewer lock lever drawer housing 05.21. coffee brewer 05.19. coffee brewer presence switch chamber heating connection 05.26. mixer motor 05.19. coffee brewer water supply 05.06. waste water discharge 05.06.
- Page 14 05.04. dispenser the cino eC vending machine has got a fixed drink dispenser on the cup support surface; 05.05. door lock the door is closed by means of a lock; the key is mapped and numbered for identification;...
- Page 15 05.15. internal button the button giving access to the machine programming mode is (PROG) arranged on the orange protection carter inside the door; 05.16. flash key housing programming flash keys are arranged in the carter inside the door (see 09.06.);...
- Page 16 05.25. product motors they are intended to rotate the worm screws inside instant product canisters to pour the product quantity necessary for selection in the mixing bowls; 05.26. mixing bowl the mixing bowl of the mixer will accommodates the instant products you have poured to mix them with water;...
- Page 17 05.35. pressure boiler a vibration pump with bypass conveys water to the solenoid valves pump block for instant and three-way valve for espresso; 05.36. pressure boiler pressure boiler complete with a temperature probe and protection clicsons; the drain tap may be used to empty the hydraulic circuit (see 09.01.f.);...
- Page 18 05.37. electronics 05.37.a. CPU the CPU board governs the operation of the machine, it is the seat of the machine programmes and it is secured to the frame by means of turrets; the temperature probe cable is separated from the machine wiring to avoid hampering any removal of the probe itself;...
- Page 19 05.38. software the software installed in cino eC can be subdivided into two different chapters called: - master: it is the software determining the machine cycles, the links between the functions, the order of execution of operations;...
-
Page 20: Preliminary Actions
06.01. handling the vending machine may be transported, handled and positioned by skilled and trained personnel only; while handling, never overturn the machine; observe the orientation arrows on the package; attention handle the machine carefully to prevent the authorised personnel from being injured;...
