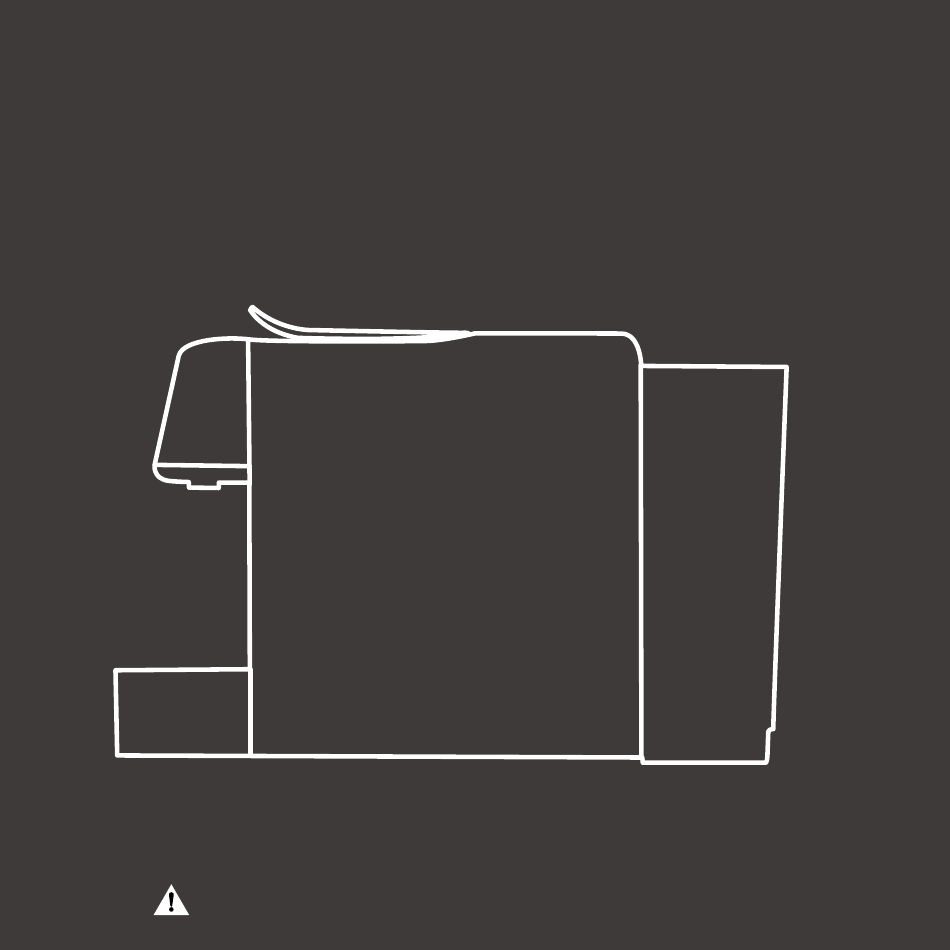

- Page 1 CAPSULE COFFEE MACHINE INSTRUCTION MANUAL JULIA ( Model : CN-L) Read this instruction manual carefully before operating this machine.
- Page 3 Precau�ons This appliance may become a safety hazard if these instructions and safety precautions are ignored. In the event of an emergency: Immediately remove plug from power socket. This product is intended for household and similar use only. The manufacturer accepts no responsibility and the guarantee will not apply in the event of any commercial use, inappropriate use or failure to comply with the instructions.
- Page 4 Check that the voltage quoted on the rating plate is the same as your voltage. Connect the appliance to earthed power sockets only. An improper connection voids warranty. Remove plug from socket if not in use for a long period of time. Do not place the power cord near hot parts or sharp objects, etc.
- Page 5 Children shall not play with the appliance. The instructions for appliances normally cleaned after use, and not intended to be immersed in water for cleaning, shall state that the appliance must not be immersed. state that the coffee-maker shall not be placed in a cabinet when in use. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments;...
-
Page 6: Table Of Contents
CONTENT Product overview Opera�ng instruc�ons Func�onality Warning Descaling Cleaning & care Troubleshoo�ng Technical parameters... -
Page 7: Product Overview

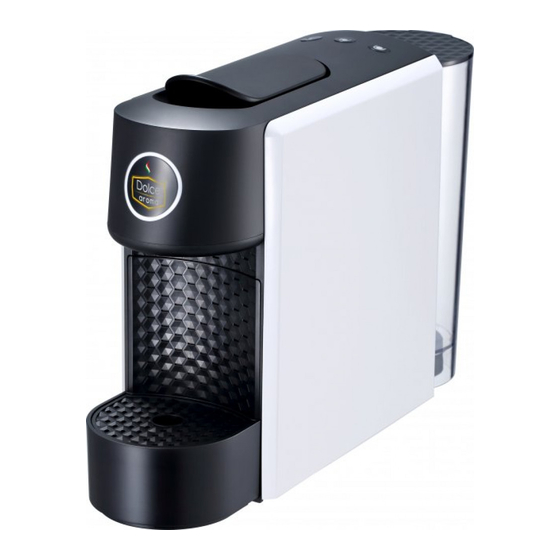

Product overview Medium cup/Hot water Lungo Espresso Water tank lid Handle Logo lamp Water tank Nozzle Side panel Capsule container Drip grid USB/Milk frother cover Drip tray (CN-L01/02 without this cover) -
Page 8: Opera�Ng Instruc�Ons
Opera�ng instruc�ons 1. Before use Fill up the water tank. Machine enter into power save mode, Plug power cord. Buzzer sounds and three bu�ons blinks simultaneously. Machine power is less than 0.5W. Press any bu�on to preheat the machine normally. Three bu�ons blinks 1 �me/s, Logo lamp keep bright. - Page 9 2. Hot water func�on Specially for CN-L02/04/LM02 Hot water version. Place your cup, press hot water bu�on, a�er buzzer sounds, 200ml hot water brewed. Buzzer sounds a�er pump stops 2 seconds means brew completed. (Hot water bu�on blinks 1�me/s, other bu�ons keep bright). 3.
- Page 10 Open the handle (capsule Press Medium bu�on, a�er buzzer Press Lungo bu�on, a�er buzzer will drop into capsule container sounds, 80ml coffee brewed. sounds, 110ml coffee brewed. automa�cly). Buzzer sounds a�er pump stops 2 Buzzer sounds a�er pump stops seconds means brew completed. 2 seconds means brew (Medium bu�on blinks 1 �me/s, completed.
-
Page 11: Func�Onality
Func�onality 1. Standby mode Enter into standby mode The three bu�ons and Logo lamp keep bright a�er prehea�ng. when the machine enters standby. 2. Power save mode Under power saving mode, the power consumption of the machine meets ERP requirements. In standby mode, if the machine In power on state, press and hold All bu�ons off. - Page 12 3. Power save mode se�ng In power save mode, press and hold Medium/Hot water and Lungo bu�ons simultaneously for 3 seconds, a�er buzzer sounds machine will enter into power save se�ng mode. Press Espresso bu�on, the bu�on blinks 3 �mes and machine will be set to enter into the power save mode when machine without any opera�on more than 15 mins in Standby mode(Machine default mode).
- Page 13 4. Pre-infusion se�ng In power save mode, press and hold Medium/Hot water bu�on for 3 seconds, buzzer sounds and machine enter into pre-infusion se�ng mode. Press Espresso bu�on, the bu�on blinks 3 �mes and machine will be set to without Pre-infusion (Machine default mode). In power save mode, press and hold Medium/Hot water bu�on for 3 seconds, buzzer sounds and machine enter into pre-infusion se�ng mode.
- Page 14 5. Temperature se�ng In power save mode, press Espresso and Lungo bu�ons simultaneously for 3 seconds, a�er buzzer sounds, machine enter into temperature se�ng mode, press Espresso bu�on once and the temperature will decrease 2 degrees cen�grade, press twice for decrease 4 degrees cen�grade and so on. Maximum 8 degrees cen�grade can be decreased.
- Page 15 6. Room temperature water se�ng In power save mode, press and hold three bu�ons simultaneously for 3 seconds, a�er buzzer sounds and three bu�ons blinks 5 �mes, the machine will be set to room temperature water mode, the boiler will stop hea�ng. Same steps, a�er buzzer sounds and three bu�ons blinks 3 �mes, the machine will exit room temperature water mode, boiler will heat normally (Machine default mode).
- Page 16 8. Volume se�ng In standby mode, press and hold Press Lungo bu�on (Medium/Hot Press Lungo and Hot water the Lungo and Medium/Hot water or Espresso), Buzzer bu�on (or Espresso and Hot water bu�on for 3 seconds, sounds and pressed bu�ons water bu�on) to brew machine will enter into volume blinks 1 �me/2s, other bu�ons...
-
Page 17: Warning
9. Factory default se�ng In power save mode, press and A�er buzzer sounds and all bu�ons and logo lamp blink 3 hold Lungo bu�ons for 3 seconds. �mes simultaneously, factory default se�ng is recovered. (Volume, temp., power save mode, room temp. water, water quality se�ng would be recovered). - Page 18 2. Warning for blockage Brewing unit is blocked Lungo bu�on blinking Open the handle and change by capsule expired or at the cycle of 6 �mes with a new capsule, press any damaged. 2 seconds of pausing, buzzer bu�on to cancel warning. keeps sounding.
- Page 19 4. Warning for overheat When the machine works con�nuously cause the temperature of boiler to be too high (around 140 degrees cen�grade). Boiler will stop hea�ng and Lungo bu�on blinking. Please plug off to cancel the warning. 5. Warning for overuse A�er the machine con�nuously In plug in state, machine needs Insert the plug again and...
- Page 20 6. Warning for open handle In standby mode, the handle Espresso bu�on blinks Close the handle to cancel is not securely closed and 2 �mes/s, Lungo and Medium/ the warning. automa�c warning. Hot water bu�on lights off. 7. Warning for excessive pumping The pump has worked Espresso and Lungo bu�ons To cancel the warning,...
-
Page 21: Descaling
Descaling The descaling solution can be harmful. Avoid contact with eyes, skin and surfaces. The following table will indicate the descaling frequency required for the optimum performance of your machine, based on water hardeness. For any additional questions you may have regarding descaling, please contact your distributor. Duration approximately 15 minutes. - Page 22 Refill the water tank with the Repeat steps 4 and 6 to rinse Rinse the water tank and descaling agent and water up the machine. Repect twice. fill with fresh potable water. to MAX. line, then descaling again un�l the water tank is empty. Empty the drip base.
- Page 23 Water quality selec�on func�on In power save mode, press and hold Espresso bu�on for 3 seconds, machine will enter into water quality selec�on func�on, press Espresso bu�on once the water quality level reduce one level, press twice for reduce one more level and so on. Press Lungo bu�on for increase level (total 5 level).
-
Page 24: Cleaning & Care
Cleaning & care Do not immerse the machine Empty the drip tray, drip base Clean capsule box. in water, risk of electric shock. and used capsule container. Clean drip grid, drip grid Clean the water tank. cover and drip tray. -
Page 25: Troubleshoo�Ng
Troubleshoo�ng Indicator does ·check plug. not func�on ·check if voltage is the same as specified on ra�ng label. ·plug off and plug on again Keys do not func�on ·call service center ·check if there is foreign ma�er or capsule stuck in chamber. Handle can not be ·check if the capsule is as designated. -
Page 26: Technical Parameters
Technical parameters AC220-240V 50-60Hz 1300-1500W 15/20 bar ~ 3.2 kg 700ml - 40 102mm 355mm 240mm Please search user manual at www.cino.cn... - Page 28 MANUFACTURER: CINO TECHNOLOGY (SHENZHEN) LTD 3rd, 4th & 5th floor, G Building, Licheng Scientific and Technology Industrial Park, Xinhe Road, Gonghe community, Shajing, Baoan, Shenzhen 518104, P.R China www.cino.cn...
