- Page 1 INSTALLATION AND MAINTENANCE MANUAL Translation of the original instructions MAN1010105 rel. 03 dated 12.02.2014 ___________________________________ www.rheavendors.com...
- Page 2 GENERAL; if the text is highlit by this symbol, it is recommended to pay special attention to the performance of the procedures described;...
- Page 3 8 years old...
- Page 4 European Parliament’s 2002/96/EC Directive; MAN1010105 rel. 03 dated 12.02.2014 page no. 4 of 50 page www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com...
- Page 5 risks;...
- Page 6 Rheavendors Industries S.p.A.’s conditions obligations with reference to guarantee and repair; any other term or condition, either verbal or written, is not applicable, including those in the purchaser’s purchase orders, if not explicitly accepted and signed by Rheavendors Industries S.p.A.;...
- Page 7 Rheavendors Industries S.p.A. declares that this drink vending conformity machine has been designed and manufactured in compliance with the following directives and safety standards: Directives: 2004/108/EC; 2006/42/EC; 97/23/EC; 2011/65/EC (RoHS); 2002/96/EC (RAEE); Regulations: 1907/2006/EC (REACH); 1935/2004/EC; Standards: SAFETY:...
- Page 8 09 introduction page 09 technical data page 10 configurations page 12 presentation page 14 preliminary actions page 23 connections page 24 first power on page 25 programming page 27 parameters page 40...
- Page 9 01.01. abbreviations and pictograms dispensing cycle of drinks based on instant products; dispensing cycle of drinks based on instant products and coffee beans;...
- Page 10 03.01. dimensions height: 560 mm height (including opened water door): 625 mm width: 315 mm depth: 530 mm 03.02. mass instant machine: 22 kg espresso machine: 26 kg values and indications for standard machine anyway refer to serial number label data see 02.03.
- Page 11 (see 09.06.); 03.22. notes the water and energy supply tolerance limits that can ensure a good and proper operation of the cino eC machine are: water: - total hardness: from 10 °f to 25 °f (*) - recommended conductivity: 400 μS @ 20 °C...

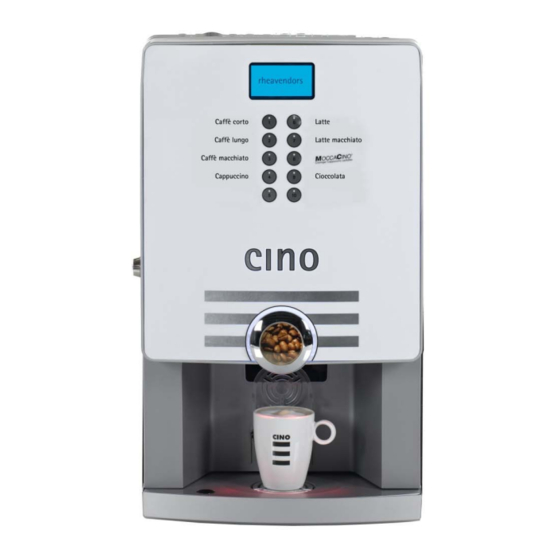

- Page 12 04.01. some categories exemplified here below in the abbreviation of the machine: a. instant - instant products only: cino eC I b. instant and espresso...
- Page 13 04.04. LM selection cino eC can produce a drink called Latte Macchiato, composed by milk and coffee and served in the cup in differently coloured bands, typically milk, coffee and milk; to get this special drink, refer to a specific package of instructions, every step of which is called “LM dispensing cycle”;...
- Page 14 05.14. door switch 05.14. service key 05.23. water door 05.22. instant product canister 05.22. internal water tank 05.15. e 05.39.b. protection carter 05.22. coffee beans canister 05.16. 05.18. flash key housing grinder 05.15.
- Page 15 05.25. product motor 05.19. coffee brewer 05.30. powder extraction lock lever drawer housing 05.21. coffee brewer 05.19. coffee brewer presence switch chamber heating connection 05.26. mixer motor 05.19. coffee brewer water supply 05.06. waste water discharge 05.06.
- Page 16 05.14. service key 05.22. 05.15. e 05.39.b. instant product canister protection carter 05.16. flash key housing 05.22. closing baffle 05.15. 05.22. internal button PROG product slide 05.27. 05.05. nozzle support door lock 05.06. waste water from the boiler 05.26.
- Page 17 05.04. dispenser the cino eC vending machine has got a fixed drink dispenser on the cup support surface; 05.05. door lock the door is closed by means of a lock; the key is mapped and numbered for identification;...
- Page 18 05.15. internal button the button giving access to the machine programming mode is (PROG) arranged on the orange protection carter inside the door; 05.16. flash key housing programming flash keys are arranged in the carter inside the door (see 09.06.);...
- Page 19 05.25. product motors they are intended to rotate the worm screws inside instant product canisters to pour the product quantity necessary for selection in the mixing bowls; 05.26. mixing bowls the mixing bowls of the mixer will accommodate the instant products you have poured to mix them with water;...
- Page 20 05.36. pressure boiler in the E machine, pressure boiler complete with a temperature probe and protection clicsons; the drain tap may be used to empty the hydraulic circuit (see 09.01.f.);...
- Page 21 05.39. electronics 05.39.a. CPU the CPU board governs the operation of the machine, it is the seat of the machine programmes and it is secured to the frame by means of turrets; the temperature probe cable is separated from the machine wiring to avoid hampering any removal of the probe itself;...
- Page 22 05.40. software the software installed in cino eC can be subdivided into two different chapters called: - master: it is the software determining the machine cycles, the links between the functions, the order of execution of operations;...
- Page 23 06.01. handling the vending machine may be transported, handled and positioned by skilled and trained personnel only; while handling, never overturn the machine; observe the orientation arrows on the package; attention handle the machine carefully to prevent the authorised personnel from being injured;...
- Page 24 “waters intended for human consumption” refer to the following Internet address: http://eur-lex.europa.eu/ directive 98/83/EC of 03/11/1998 07.02. energy observe the rules on connections with the electric network, in particular on grounding; connect the machine permanently without using any reduction, adaptor, multiple socket or extension;...
- Page 25 08.01. introduction after having unpacked the vending machine, arranged it firmly in the work place and connected or supplied it (machine A) hydraulically and electrically, carry out some actions to operate it; wash hands thoroughly with water and soap before handling the machine and the products;...
- Page 26 Internet address: http://eur-lex.europa.eu// regulation 2004/852/EC of 29/04/2004 lower down the cover and close the door by means of the lock key (see 05.05.) and place it in a safe place;...
- Page 27 – written in the board memories – enable the user to dispense drinks without requiring the installer to set up special programmes;...
- Page 28 PROGRAMMING 09.01.l. clock to set up the machine clock; CLOCK REGISTRATION 09.01.m. out of service to record any failure that may have occurred; OUT OF SERVICE PROGRAMMING 09.01.n. product qty to check and enable product dispensing cycles;...
- Page 29 N product start delay motor will be activated at the expiry of the delay time you have PRODUCT N programmed; the delay time is increased or decreased by pressing keys “4”...
- Page 30 “4” and “5” to choose the drink name to display during the dispensing cycle; options are listed here below: selection name - “standard”, the display will show “drink N under preparation”; ------- n:00 - “list of names” of drinks made available in the machine memory;...
- Page 31 PRICE N 09.01.b. prices press key “2” to display: 0.00 each selection can be assigned a sales price; use “4” and “5” to change the amount and “2” to scroll the price lines; PRICE N 09.01.c. happy price press key “2”...
- Page 32 - grinder type: in the E machine, to decide whether coffee is Type grinder ground for the espresso selection in progress or for the next one; 0=a 1=b 2=t. N - display colour; to select the display aspect you wish; (12 display color options);...
- Page 33 09.01.h. sales audit this menu is intended to gather the quantities of the selections made by the machine: names are assigned according to the EVA- DTS standard: - VA 102 TOTAL SELECTIONS quantity of total vends (parameter not resettable);...
- Page 34 09.01.i. MDB press “2” to display the variables necessary for the MDB protocol; since cino eC is unable to accommodate changegiver payment systems, some of these variables will be of no significance, even if made available; press keys “4” and “5” to scroll the values;...
- Page 35 09.01.m. out of service to display the recording of the twenty errors last occurred in the n. N off NN machine; press key “2” to scroll the records and key “4” to reset hh:mm dd-mm-yyyy the recording (see 11.);...
- Page 36 09.01.q. tuning motors with respect to the setup in 09.01.a: tuning pump - only in the I machines, the rotation speed of the boiler pumps percent +00 % can be changed (keys “4” and “5”) by +/- 30 %; the change concerns all the activations of the pumps for all selections;...
- Page 37 P4=START P3 to continue rising cleaning brewer 09.05.
- Page 38 09.07. programming diagram 1. PROG button n functioning programming total coffee water exp programming partial coffee sequence inhibited double coffee preselection product n start delay product n breaks number prices price n grinder time prebrewing happy price...
- Page 39 09.07. programming diagram clock hour ejection tubes escrow enable month credit max year rest max day of week sell type start fn token value end fn coin rest n switching on coin no rest n switching off...
- Page 40 (e.g. 27 corresponds to 2 seconds and 7 tenths);...
- Page 41 10.02. limits the table is intended to list the minimum and maximum values you can assign to programmable variables; m.u. from exp coffee water 0 = no espresso; product sec. 0 = no product; product start delay sec.
- Page 42 OFF 2 check the connection between the machine and the payment no communication system;...
- Page 43 OFF 9 there is a control for the maximum grinding time; after this grinding time too threshold has been exceeded, error 9 is produced; no coffee, long hopper orange blade closed; wear, grinders excessively closed; (E machines)
- Page 44 drinks;...
- Page 45 12.01. weekly power off the machine; detach the power supply cable and carefully make sure that there is no sign of wear; carefully check the stability and efficiency of the internal connections of the mains supply; external body use a non-abrasive piece of cloth after having dampened it with lukewarm water;...
- Page 46 2002/96/EC Directive and to the relative rules; the complete text of the European directive about this specific subject-matter is made available on the Internet site: http://eur-lex.europa.eu/...
- Page 47 13.01. empty the drip the drip tray is arranged in its work seat and retained by the see 05.06. tray notches in the structure; pull to remove it; 13.02. empty the after having opened the door and removed the drip tray, pull the see 05.20.
- Page 48 30%); 13.21. install a payment there is a kit including all the parts necessary to install a payment system in cino eC; after having installed the components of this system kit, refer to the above to programme the system functionality;...
- Page 49 schema idraulico...
- Page 50 schema idraulico I...
