Summary of Contents for overstock CM7130D

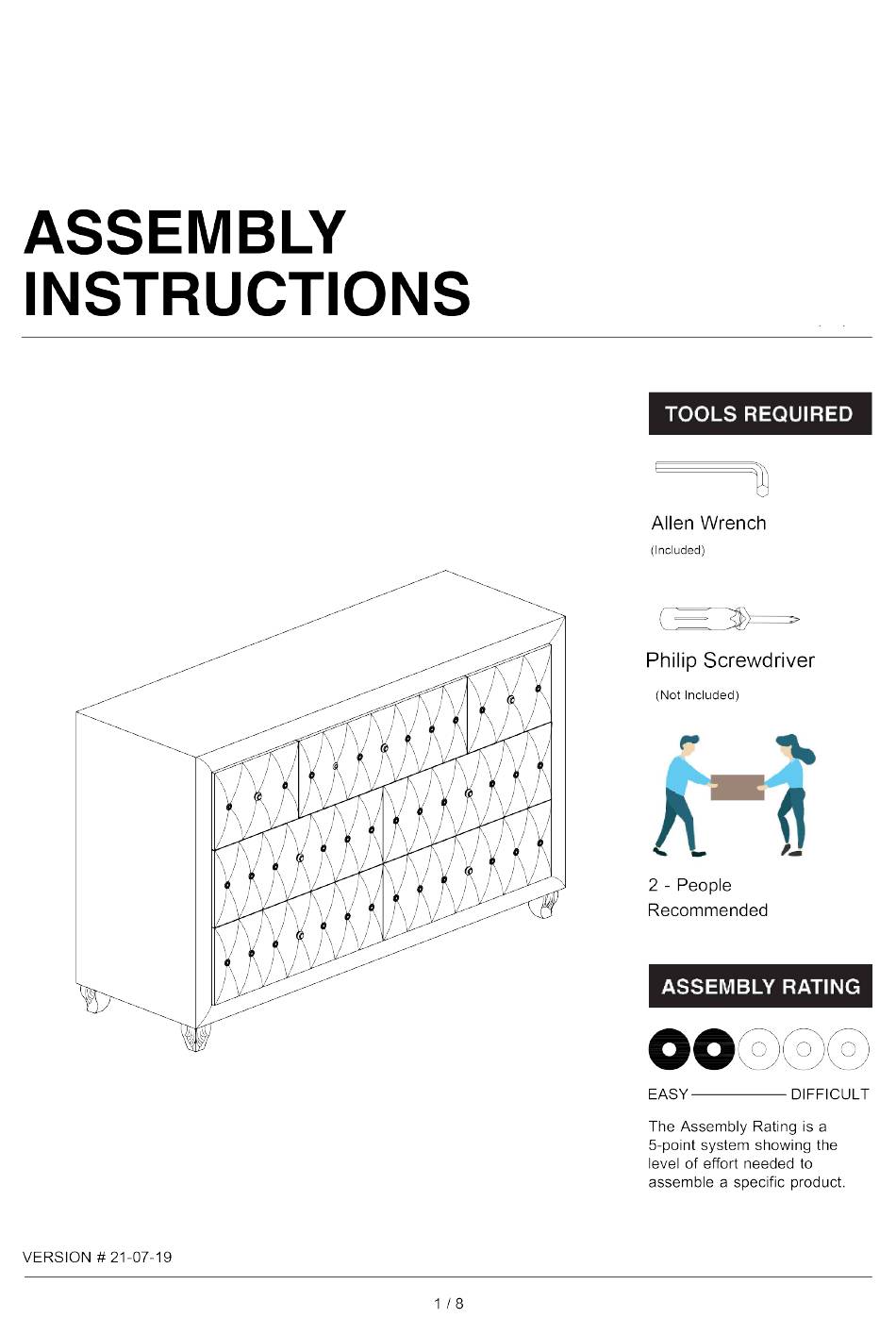

- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 DRESSER CM7130D #1 1pc #3 3pcs #2 1pc Ø1/4" Dresser Bun Foot Support Leg 78x30x30mm #B 4pcs #C 4pcs #A 4pcs Lock Washer Ø5/16" Flat Washer Ø5/16" Bolt Ø5/16" x 3-1/2" #D 4pcs #E 1pc Anti Slip Sheet Allen Wrench 4mm...
-
Page 6: Exploded View
Exploded View 6 / 8... - Page 7 ASSEMBLY INSTRUCTIONS Align legs (#2) with washers (#D) onto Part #1 x1pc dresser (#1), then secure by using bolts Part #2 x4pcs (#A) with washers (#B,C). Attach support Part Part #3 x1pc leg (#3) onto the dresser (#1). Hardware #A x4pcs Hardware #B x4pcs Hardware...
- Page 8 ASSEMBLY INSTRUCTIONS 8 / 8...
