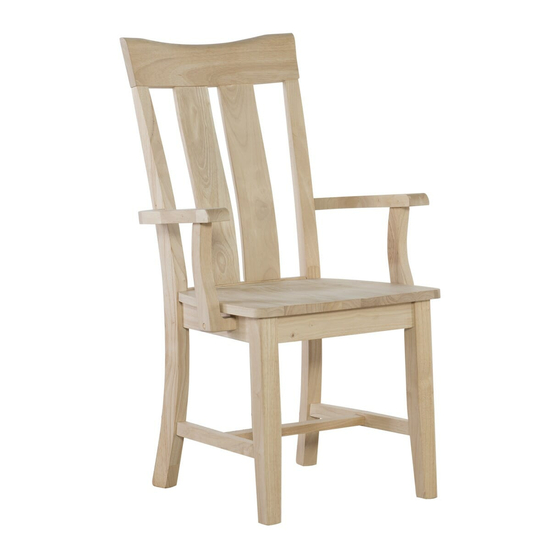

- Page 1 ASSEMBLY INSTRUCTIONS : AVA ARM CHAIR Description : CI-13A Item No. ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020 - 2 -...
- Page 3 Description Sketch Description Sketch Chair back Seat Frame Front Leg Chair Seat (L-R) Side Stretcher Middle (L-R) Stretcher Arm support (L-R) (L-R) ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020 - 3 -...
- Page 4 Small Flat Washer Large Flat Washer (6.5 x13mm) (6.5 x19mm) Hexagon nut Wrench (M6 x 10mm) (10 mm) Allen Key Wood plug (M4 x 30mm x 110mm) (14.5) ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020 - 4 -...
- Page 5 Attach middle stretcher (F) to side stretchers (E) with screws (7). Then attach side stretchers (E) to front and back legs with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020...
- Page 6 Then use nuts (11), and washers (8) and (10) as shown below. Tighten with wrench (12). Attach arms (H) to the chair back with screws (5). Tighten with a screwdriver. ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020...
- Page 7 Attach the seat (C) to top of the seat frame (B) with screws (6) as shown below. Tighten with a screwdriver. Insert wood plugs (14) over bolts to cover them. ITEM NO.: CI-13A Printed in Vietnam ISSUED DEC 03, 2020...
