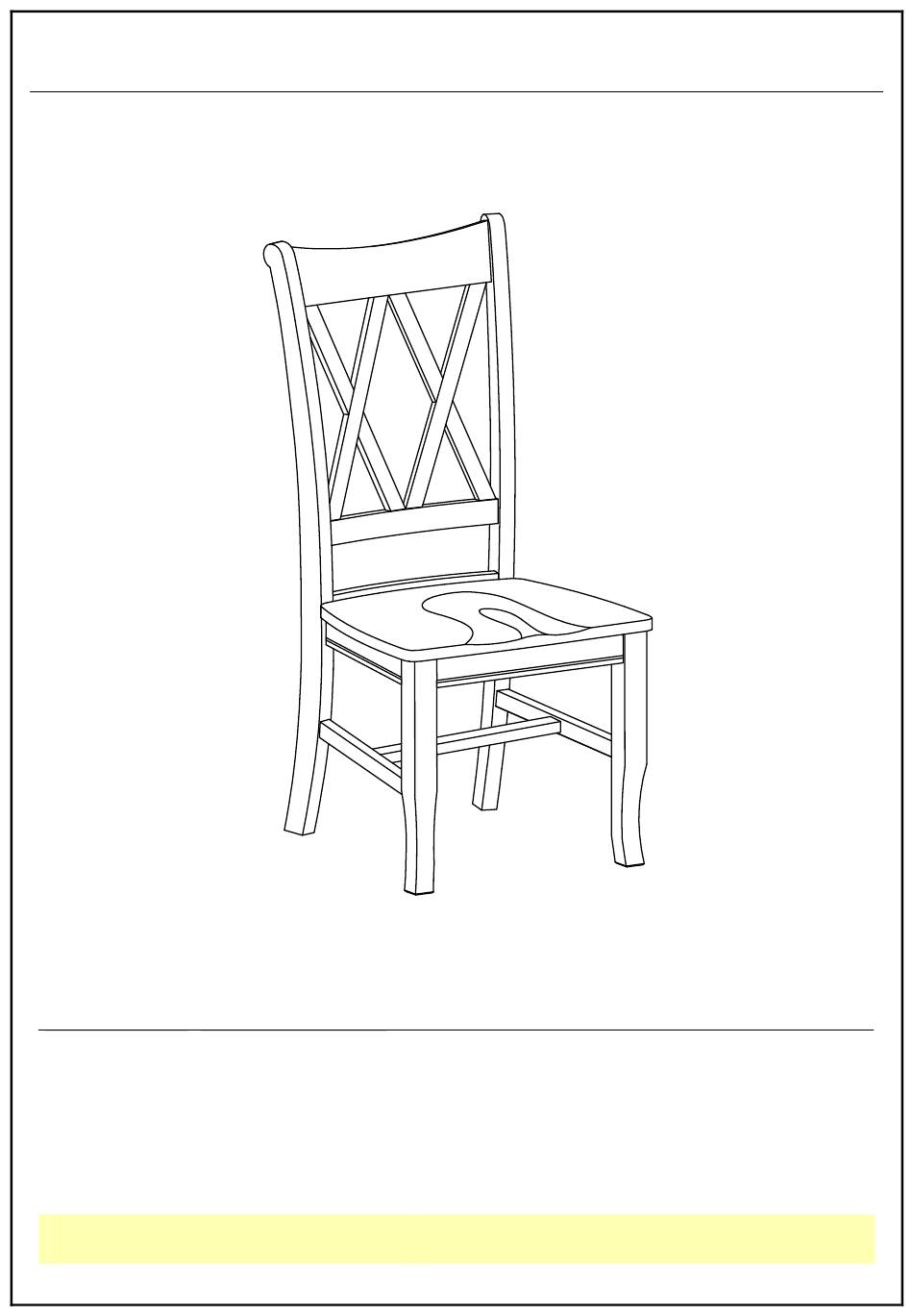

- Page 1 ASSEMBLY INSTRUCTIONS : DOUBLE XX CHAIR Description : C-220 Item No. ITEM NO.: C-220 Printed in Vietnam ISSUED APR 08, 2019 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: C-220 Printed in Vietnam ISSUED APR 08, 2019 - 2 -...
- Page 3 (M4 x 50mm) Medium Screw Short Screw (M4 x 35mm) (M3.5 x 15mm) Lock Washer Flat Washer (6.5 x11mm) (6.5 x19mm) Allen Key (M4 x 30mm x 110mm) ITEM NO.: C-220 Printed in Vietnam ISSUED APR 08, 2019 - 3 -...
- Page 4 Attach middle stretcher (F) to side stretchers (E) with screws (6). Then attach side stretchers (E) to front and back legs with screws (4) as shown below. Tighten with a screwdriver. ITEM NO.: C-220 Printed in Vietnam ISSUED APR 08, 2019...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver. ITEM NO.: C-220 Printed in Vietnam ISSUED APR 08, 2019 - 5 -...
