Tyco rapidresponse RSV-1 Quick Start Manual

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

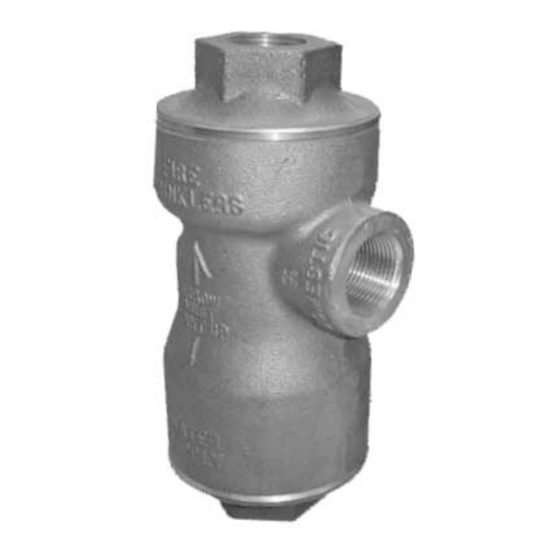

Model RSV-1 Residential Domestic Shutoff Valve
1 Inch (DN25)
For Dual Purpose Residential Water Supply
General
Description
TM
The Rapid Response , Model RSV-1
Residential Domestic Shutoff Valves
are intended for use in dual-purpose
residential water supply piping that
serves both domestic and NFPA 13D
residential fire protection sprinkler
system needs.
When a fire sprinkler operates, the
RSV-1 Valve will automatically shut off
water flow to the domestic system and
divert the available water supply to the
fire sprinkler system. Consequently,
when the RSV-1 is utilized, the system
designer need not add the domestic
flow demand to the fire sprinkler sys-
tem flow demand.
Use of the Model RSV-1 Residential
Domestic Shutoff Valve should be con-
sidered when either the water supply
cannot adequately provide for both the
domestic design demand and fire
sprinkler flow demand, or it is desir-
able to increase the effectiveness of
the fire sprinkler system by automat-
ically shutting off domestic flow.
The RSV-1 maximizes the effective
use of an existing water supply and,
therefore, in areas with limited water
supplies, it may eliminate the need to
add costly pumps, pressurized reser-
voirs, or electrically operated domestic
shutoff valves. The RSV-1 has a built-
in check valve in the fire sprinkler sys-
tem outlet that eliminates the need for
a separate check valve.
RSV-1 automatically resets, thereby
eliminating the need for valve disas-
sembly after a fire sprinkler system
test or operation.
The Model RSV-1 Residential Domes-
tic Shutoff Valve is a redesignation of
the Gem Model F540 and Star Model
S370 Residential Domestic Shutoff
Valves.
Page 1 of 6
The Model RSV-1 Residential Domes-
tic Shutoff Valves described herein
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the National Fire Protection Asso-
ciation, in addition to the standards of
any other authorities having jurisdic-
tion. Failure to do so may impair the
performance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Technical
Data
Approvals
The 1 inch (DN25) Model RSV-1 Resi-
dential Domestic Shutoff Valve is UL
and ULC Listed and is suitable for use
in water supply arrangements for resi-
dential fire sprinkler systems designed
per NFPA 13D.
Maximum Pressure
175 psi (12,1 bar)
Pressure Loss
Figure 4
Assembly
The Body, Top Cover, and Bottom
Cover are bronze. The Piston, Differ-
ential Ring, and Sleeve are glass rein-
Also, the
forced Polyphenylene Oxide. The Up-
per Cap is brass. The O-rings are
Buna-N, while the Upper and Lower
Seals are are EPDM. The Spring, Up-
per Cap Screws, and Piston Screws
are stainless steel.
Weight
11 lbs. (5 kg)
Patents
U.S.A. 5,236,002
MAY, 2007
WARNING
TFP980
