Permaban AlphaJoint Installation Guide
Using Pin & Weld Method
Installation Guide Issue V1.0
14/07/22

05 Adjust universal divider plate

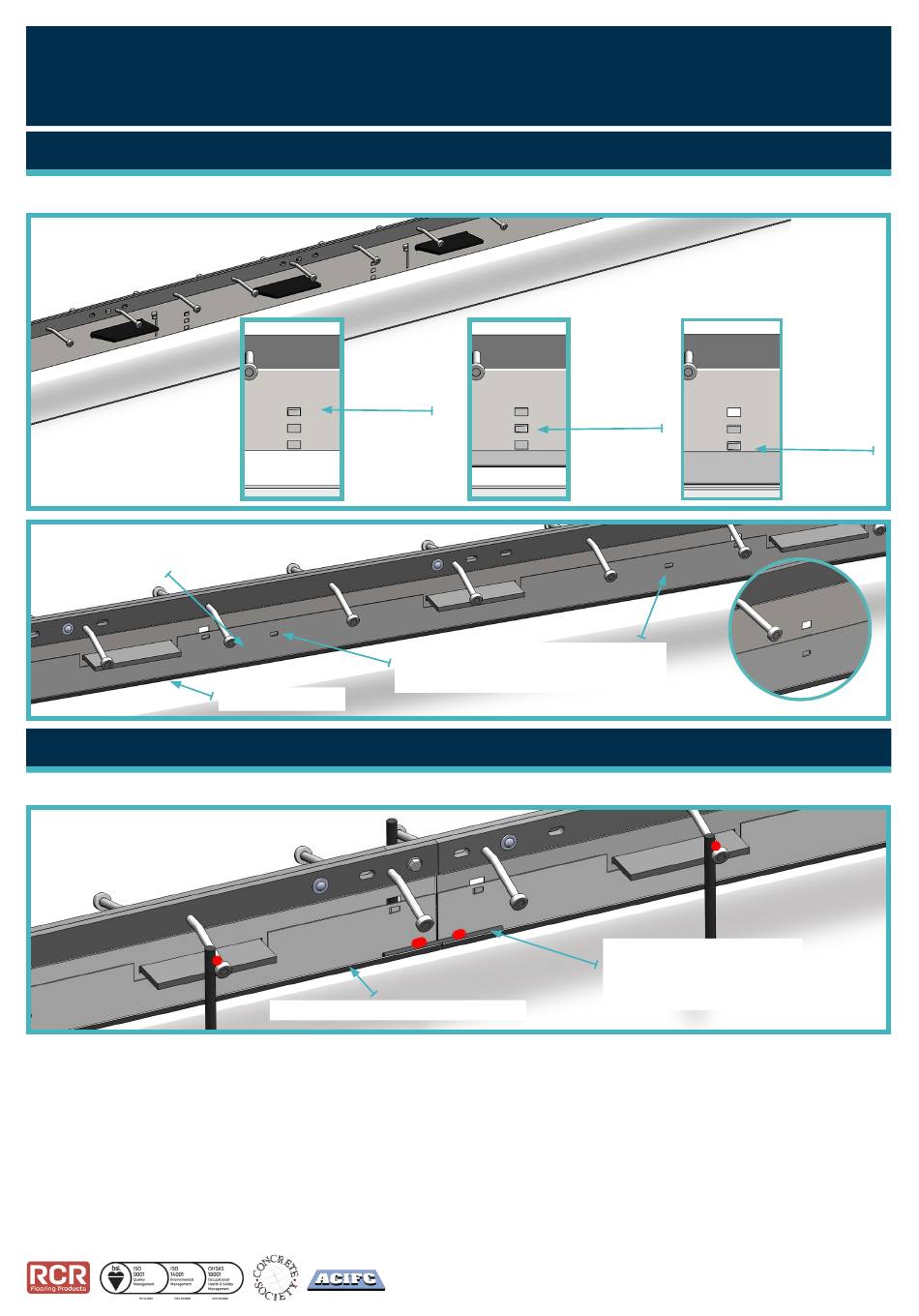

To extend the universal divider plate, pull out, push down and insert.
Universal divider plate

06 Support bars

This method gives good support to the adjustable divider plate after its been adjusted.
Note; weld each side of the
joining to secure in place.
140 Joint
160 Slab
Bottom return
Note; Folded side of the joint.
Pull the bottom return of the
universal plate to adjust.
All content found within this installation guide is approximate. RCR Flooring Products Ltd reserves the right to
amend this installation guide at any time. For further details, please contact RCR Flooring Products Ltd.
160 Joint
180 Slab
Note; Place re-bar
between two Alpha
joints and tack weld.
RCR Flooring Products Ltd is registered in England & Wales - No. 02815314.
180 Joint
200 Slab
