Fix Joints Together; Adjust To Height - permaban AlphaJoint Installation Manual

Permaban AlphaJoint Installation Guide
Using Pin & Weld Method
Installation Guide Issue V1.0
14/07/22

03 Fix joints together

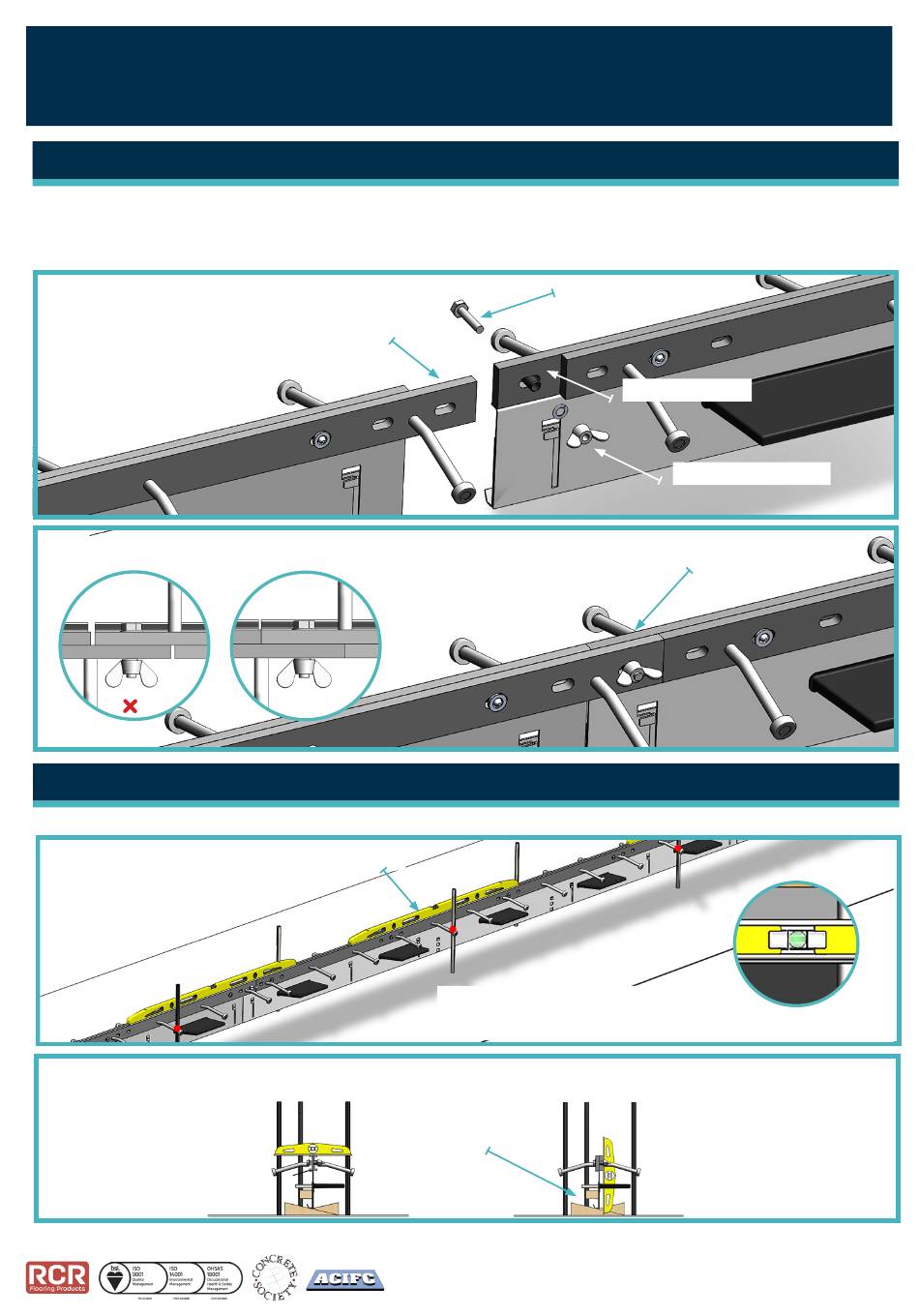

Position joints end to end, unscrew the wing nut and nylon, push the 60mm offsets together
and re-assemble the nylon and wing nut. Note; The 4010 top strip may move laterally during
transit and require minor realignment during installation.
Joints must be flush with one another.

04 Adjust to Height

Use wedges to get the desired height required and check with a spirit level/optical level.
Top strip
Note; Joints
must be fixed
at 90°.
60mm
Offset
✔
Level
Measure the vertical and horizontal level using the top strip.
Note; Check the joint is level in the 3 positions above.
Nylon
Note; Once levels are checked
cut pins just above the tac weld.
Wedges
All content found within this installation guide is approximate. RCR Flooring Products Ltd reserves the right to
amend this installation guide at any time. For further details, please contact RCR Flooring Products Ltd.
60mm offset
Butterfly/wing nut
Joints fit together
Use wedges to adjust
the vertical and the
horizontal.
RCR Flooring Products Ltd is registered in England & Wales - No. 02815314.
