Install the Cell
2
Install the cell in a section of straight pipe, at least 22 inches long, downstream from all pool
equipment. Position the cell within 10-12 feet of the controller/power supply location to
accommodate the 12 ft. cell cord. If an in-floor cleaning system or other high-flow application
is present, install the cell on a bypass manifold and include a check valve.
The cell can be positioned vertically or horizontally.
From
Pool
From
Spa
From
Pool
From
Spa
1. Turn off pool pump.
2. Measure and cut the pipe based on the
piping configuration. Leave at least 6 inches
of straight pipe in front of the cell.
3. Clean all surfaces and apply primer to cut pipe.
4. Glue union fittings (and reducer bushings if using 1-1/2" pipe) into pipe.
5. Install cell and hand tighten unions.
6. Verify that cell wire and flow switch wire are secure.

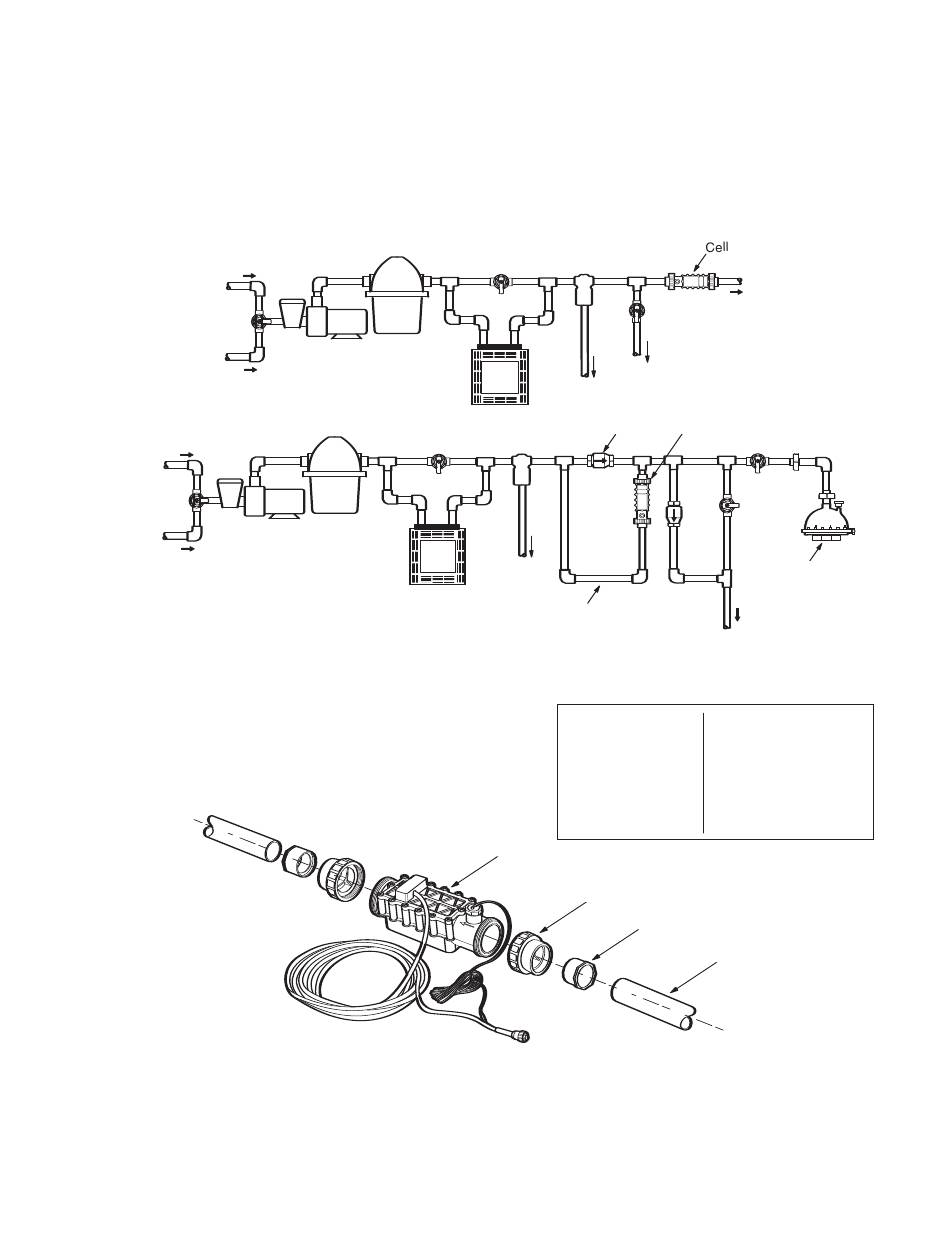

Filter
