bmcm PCI-BASE50/300 Manual

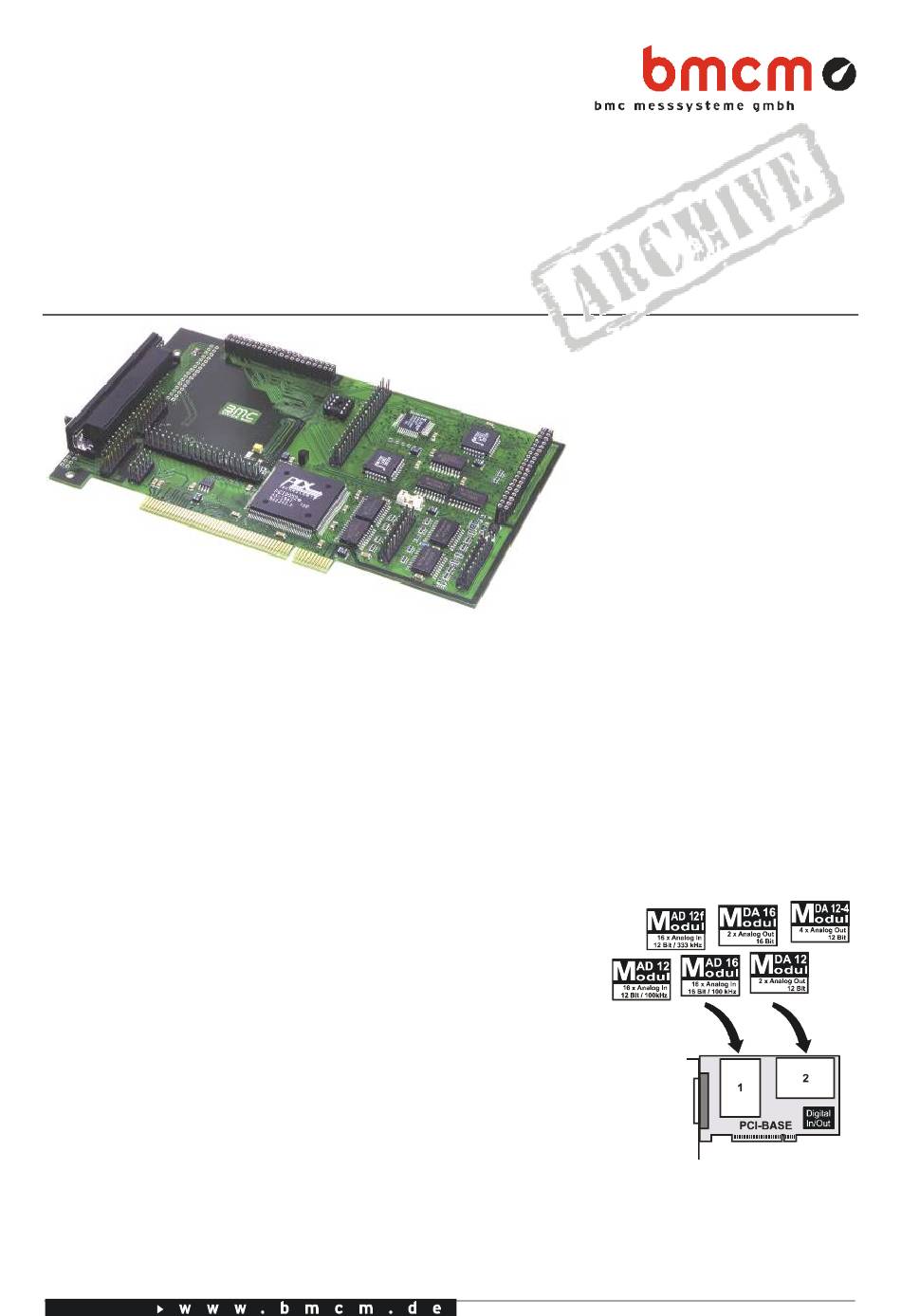

PCI-BASE50/300
Data Acquisition and Processing Card for Mxx Modules
Features
•
2 slots for Mxx modules
=> up to 32 analog channels
•
FIFO for rapid data acquisition
•
PCI bus compatible (short PCI!)
•
16 or 32 digital channels
BMC Messsysteme GmbH proudly
presents the
... PCI-Multifunction
Measuring Card ...
with a highly integrated and mo-
dular concept at an unbeatable
price which allows the user to
tackle any measuring task by as-
sembling his individual measuring
card. The MAD modules provide
sampling rates of up to
... 333kHz ... .
Depending on the application vari-
ous modules are available for ana-
log in- and outputs with resolutions
of
... 12 or 16 Bit ... .
The measured data can be simulta-
neuosly displayed and stored on the
hard disk. The switch-over from
one measuring range to another can
be defined for each channel and
does not influence the sampling
rate.
Applications
•
acquisition of analog signals
•
analog controls
•
recording of digital events
•
digital controls
... 16 or 32 digital
in-/ outputs respectively
are available on the PCI-BASE
plate. This means that the base
plate, without any analog module is
a digital I/O card itself.
The
... modular concept ...
easily allows for
... 32 analog inputs ...
with resolutions of 12 or 16 Bit. In
order to access the analog inputs
17..32, BMC Messsysteme offers a
PC card cover with a 37-pole Sub-
D socket plus connecting cable.
At present the following analog
input modules are available:
• MAD 12: 100kHz; 12 Bit
• MAD12f: 333kHz: 12 Bit
• MAD16:
100kHz; 16 Bit
These modules freely combine with
each other or the following analog
modules:
• MDA 12: 12 Bit, 2 outputs
• MDA 12-4: 12 Bit, 4 outputs
• MDA 16: 16 Bit, 2 outputs
We provide ActiveX controls STR-
®
PCI for Windows 95/98/2000/NT
as well as the operator's software
ST-PCI for the display, control and
automation of analog and digital
processes. These are included with
the "Software Collection"-CD.
As the hardware component of the
measuring data acquisition and
analysis system NextView
BMC Messsysteme GmbH, the
PCI-BASE50/300 offers superb
performance under
98/2000 or NT and is available in
the versions Light, Professional or
Client/Server. A demo version is
included.
®
/NT by
®
Windows
Page 1
