USB-AD-OEM
USB DAQ Device
Really Simple.
Record and output signals with the USB-
AD: The USB data acquisition system is
ideal for universal applications in
measurement and control technology.
Implement your own ideas – just plug in
and head off!
OEM. Compact. Powerful.
Budget Price.

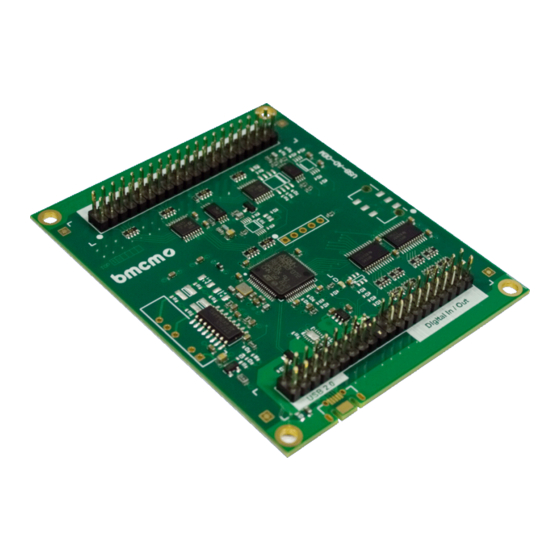

The idea behind the USB-AD-OEM: measuring
where there is very little space. Mounting holes
like 2,5" HD/SSD mean, you can mount the
USB-AD-OEMin a PC or any other housing.
16 AIn. 1 AOut. 12 Bit. ±5V.
Voltage signals in the ± 5V range are
connected to 16 analog inputs. The sampling
takes place with 12 bit resolution and up to
160Hz total sampling rate. Analog controls are
possible with the analog 12-bit output in the ±
5V output range.

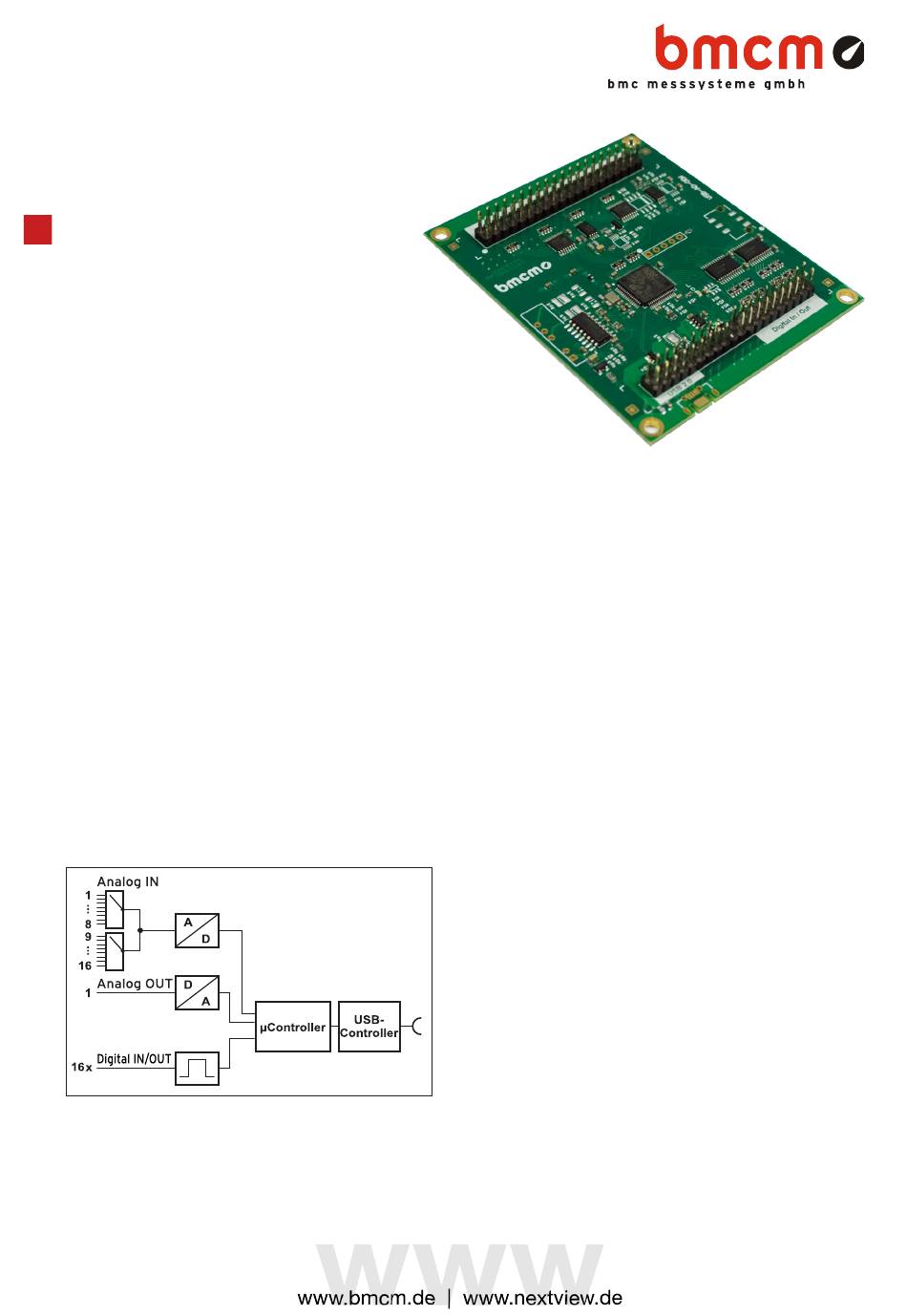

Functional Diagram
16 Digital In-/Outputs.
Digital states can be recorded or controlled in
16 digital inputs and outputs. The direction of
the digital lines can be selected in groups of 8.
Plug & Play.
The connection to the PC happens via USB.
That way the USB-AD-OEM uses all USB-
typical features (eg. Plug & Play, Hot-Plug). Up
to 127 devices can be connected and installed
during operation.
Powered by USB.
The device is powered by the USB interface.
This reduces the wiring effort to a minimum.
Open for Windows.
The measurement system receives extensive
support from Windows® 8/10. All software for
installing and programming the USB-AD-OEM
is included free of charge.
NextView . Try For Free.
®
The device is supported by NextView®, the
software for measurement data acquisition
and analysis. A fully functional 14-day trial
version is included in the scope of delivery.
This allows the functionality of the USB-AD-
OEM to be tested directly.
