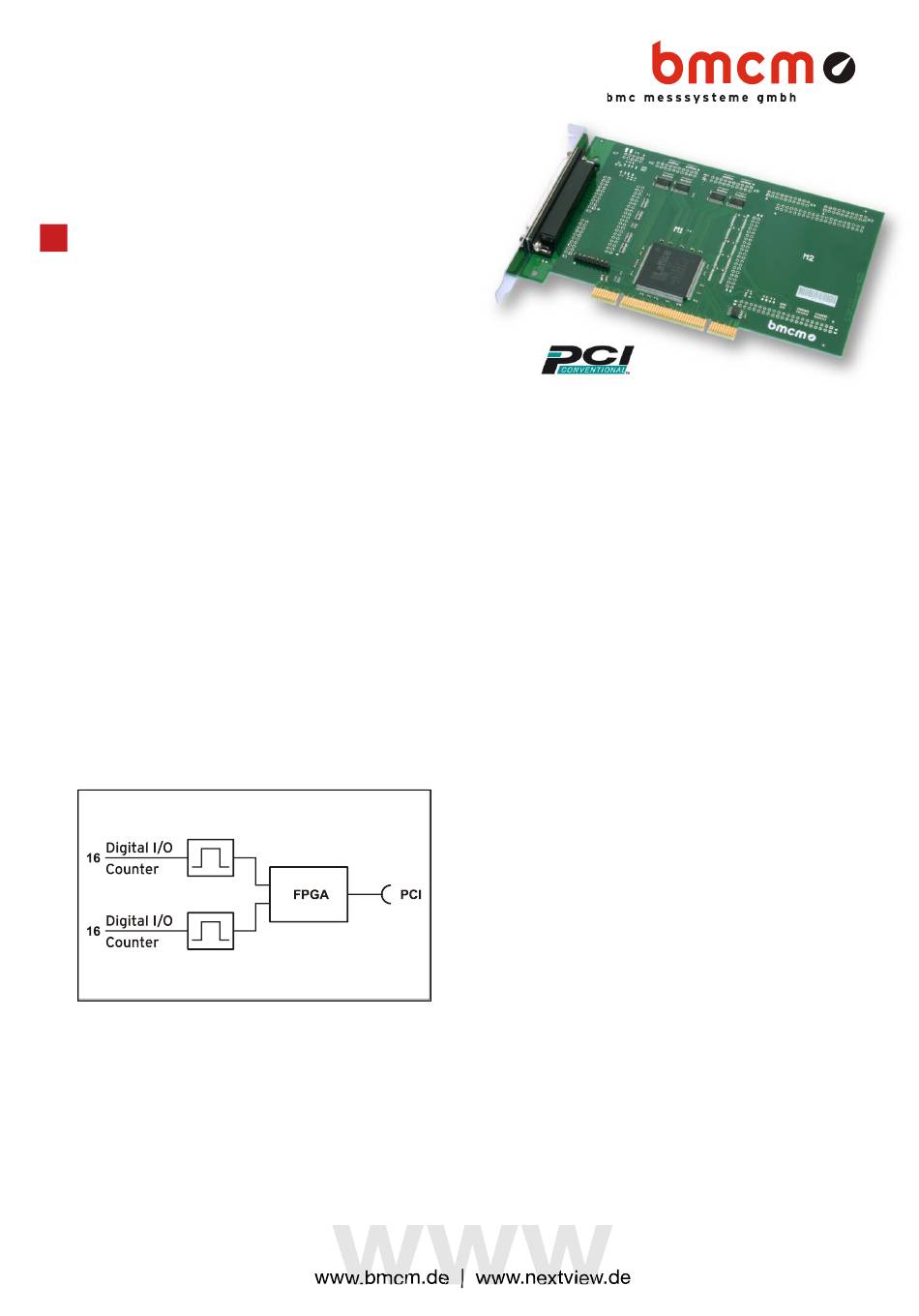

PCI-PIO
Digital I/O Card (PCI)
32 Channels. Digital.
Signal Output & Monitoring.
Record and output digital signals. The PCI-PIO
features two 16-bit bidirectional digital ports.
The port lines are led out to a 37-pin D-Sub
female connector. The short latency of the PCI
interface makes the card especially attractive
for controlling tasks.
Connect Incremental Encoder.
Count Up and Down.
Up to 3 counters or incremental encoders can
be connected at any digital inputs of the PCI-
PIO. The relevant digital lines are programmed
to counter mode via software. To set an
incremental encoder to the zero position, the
use of an external counter reset is supported.
Functional diagram
PCI. Well Fitted in the PC.
The PCI-PIO is installed in a free PCI slot and
is supplied by the PC - all this without annoying
cables. The PC housing provides optimum
protection against interferences. Due to
Plug&Play, the card is recognized
automatically by the PC making installation a
lot easier.
Windows
. That's it.
®
The PCI-PIO can be used on Windows
XP/7/8/10. The entire software for installation
and programming of the digital I/O card is
included for free.
NextView
. Try for Free.
®
The DAQ card is supported by NextView
software for data acquisition and analysis. A
fully functional 14-day trial is included with
delivery to directly test the functionality of the
PCI-PIO.
®
, the
®
Advertisement
Table of Contents
Related Manuals for bmcm PCI-PIO
Summary of Contents for bmcm PCI-PIO
- Page 1 PCI. Well Fitted in the PC. female connector. The short latency of the PCI The PCI-PIO is installed in a free PCI slot and interface makes the card especially attractive is supplied by the PC - all this without annoying for controlling tasks.
-
Page 2: Start-Up Procedure
PC, shut down and turn off the PC and open the PC housing. After removing a blank bracket, plug the PCI-PIO in a free PCI slot of the off-state PC. Boot up the PC and start the Plug&Play installation. The power supply of the card is provided via the PCI bus. -
Page 3: Digital Channels
• At PC start, port A is set to input, port B to output. 5V Auxiliary Voltage The PCI-PIO provides an auxiliary voltage (e.g. for sensor supply) at pin 9, 28 of the 37-pin D-Sub female. The 5V DC output (100mA) is protected by a fuse (multifuse). In case of overload, it is sufficient to interrupt the power supply (turn off PC or disconnect the consumer load). - Page 4 If the external counter reset is connected, the counter can be reset at any time. In comparison to a counter, the quadrature decoder considers the counting direction by decoding a second phase-shifted signal. To activate the counting function, the respective digital lines of the PCI-PIO must be assigned to the counter via software. Function Description Max.
-
Page 5: Interfacing Examples
In this regard, please also see application examples of the optocoupler you use. Optocoupler cards featuring 8 inputs are available at bmcm. 3.1.2 Connecting a Push-Button / Switch Please make sure to use a push-button with debounce protection, because otherwise several pulses might be recorded. - Page 6 A connected relay is ideal to switch higher currents. Since the field coil of the relay requires a higher current than provided by the measurement system at one line, a transistor is connected ahead. Relay cards featuring 8 outputs are available at bmcm. Seite 6...
- Page 7 Do not dispose of the product in the domestic waste or at any waste collection places. It has to be either duly disposed according to the WEEE directive or can be returned to bmcm at your own expense. Seite 7...
-
Page 8: Technical Data
PC-bracket Delivery: 37-pin D-Sub plug ZUST37, connecting cable ZUKA37SB, ZUKA37SS Available accessories: 2 years from date of purchase at bmcm, claims for damages resulting from improper use excluded Warranty: • Software LIBAD4 SDK for C/C++ programming on Windows XP/7/8/10, Software free of charge download: ®...
