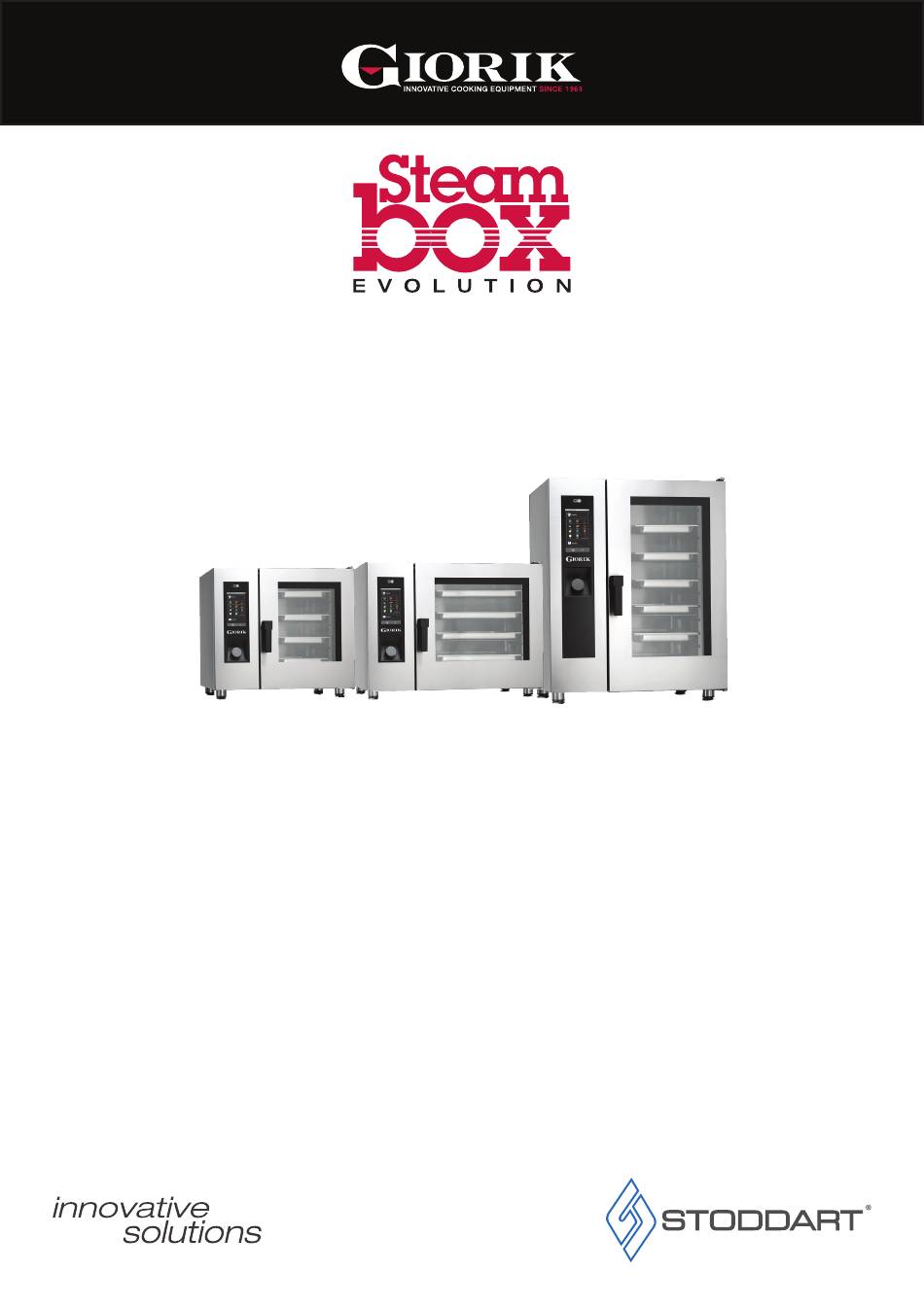

- Page 1 ESSENCE OF EVOLUTION COMBI OVENS STACKED INSTALLATION (READ ALL INSTRUCTIONS BEFORE USE) TO BE USED IN CONJUNCTION WITH USER MANUAL SUPPLIED WITH OVEN Electric Models: Gas Models: SEH061WT / SEH062WT SEHG061WT SEH101WT / SEH102WT SEHG101WT / SEHG102WT Revision: 02 - 21/11/2022 - A...
-
Page 2: Table Of Contents
Water Connection ..... . 9 Stoddart Standard Filter Stoddart Supplied Reverse Osmosis Filter Drainage Connection ....13... -
Page 3: Installation
Clean off any remaining residue from the interior/exterior of the unit using a clean cloth dampened with warm soapy water Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 2... -
Page 4: Positioning
Do not install unit under a bench • No equipment is to be installed/placed on the Service compartment (top of oven) excluding stacked applications using a Stoddart stacking kit and/or Stoddart Recirculating Hood. The service compartment must be easily accessible. Failure to adhere may add service costs due to lack of access. -
Page 5: Levelling
Using a spirit level, ensure that the Combi oven is level. Adjust the foot height to level Combi oven if required Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 4... -
Page 6: Stacking Kit
Boiler Vent Extension Silicone Tube Self Tapping Screws x 2 Upper Humidity Vent Extension Hose Clamp Large x 2 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 5... -
Page 7: Assembly
Insert the gland nuts into the stacking base and secure with Place the stacking base onto the base oven gland nuts Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 6... - Page 8 13. Place upper oven on the stacking kit (minimum four people) Ensure the four small feet sit in the locating holes Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 7...
- Page 9 16. Secure the top of the humidity vent to the oven using the self tapping screws Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8...
-
Page 10: Water Connection
The Combi oven requires unfiltered water supplied to its wash system. Water pressure must be 150-350 kPa at oven connection. This is controlled with the supplied PLV • Refer to the Stoddart Standard Filter user manual for filter setup Supplied Components (Plumbing Kit / Water Filter Kit) 1 x BWT Filter B. - Page 11 WITH ISOLATION VALVE (EXISTING CONNECTION) UPPER OVEN UPPER OVEN STEAM WASH GENERATION SYSTEM LOWER OVEN LOWER OVEN STEAM WASH GENERATION SYSTEM Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10...
-
Page 12: Stoddart Supplied Reverse Osmosis Filter
The Combi oven requires unfiltered water supplied to its wash system. Water pressure must be 150-350 kPa at oven connection. This is controlled with the supplied PLV • Refer to the Stoddart supplied RO user manual for filter setup Supplied Components (Plumbing Kit / Water Filter Kit) 1 x Ro Unit B. - Page 13 WITH ISOLATION VALVE (EXISTING CONNECTION) UPPER OVEN UPPER OVEN STEAM WASH GENERATION SYSTEM LOWER OVEN LOWER OVEN STEAM WASH GENERATION SYSTEM Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 12...
-
Page 14: Drainage Connection
Secure waste pipe to the Combi oven. Securing bracket is attached to top of the Combi oven. Remove screw, reposition bracket, then secure in place with previously removed screw 25mm Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 13... -
Page 15: Notes
Notes Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14... - Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz...
