Tru-Jump STR-12FT Assembly, Installation, Care, Maintenance And User Instructions page 19

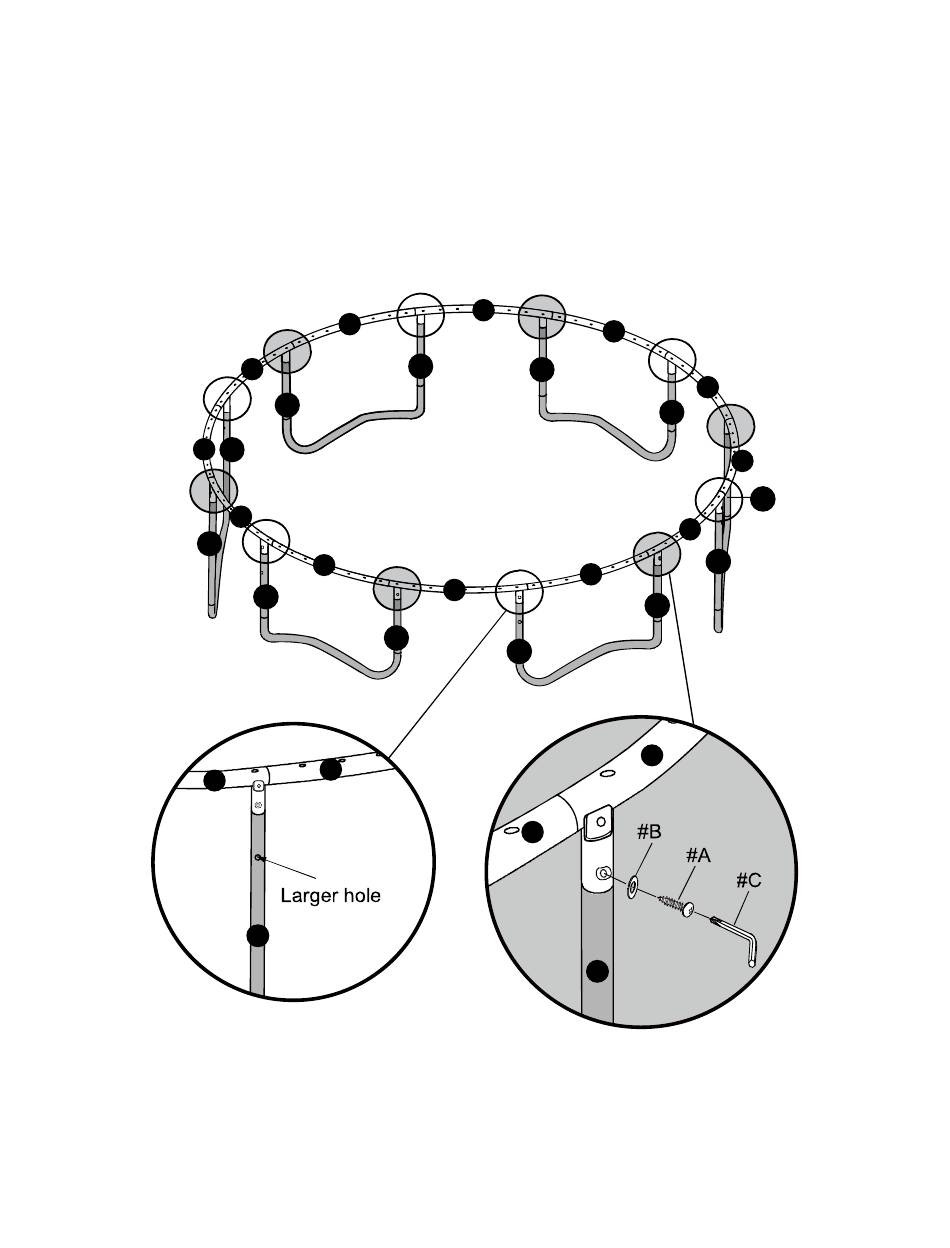

Step 4 – Secure the Leg Support to the Top Rail
 Secure Vertical Leg Extension (#6A) to the frame using Self-Locking Screw (#A), Small Spring Lock Washer
(#B) using Allen Wrench (#C) as shown below. If the holes do not match up, rotate Vertical Leg Extension back
and forth until the holes are aligned. Repeat in the same manner for all Leg Supports.
NOTE: Do not over-tighten the screws at this point. The screws should only be tightened all the way after all
the springs have been installed in later steps
Hint: Make sure the holes on all the steel tubing parts are aligned and the larger indented hole on #6B is facing
outward. This is important for installing the enclosure later.
4
6A
3
4
3
6A
6B
3
4
6B
6A
4
6B
3
6B
6A
4
3
6B
4
6A
15
4
3
6B
4
6A
3
6B
6A
3
