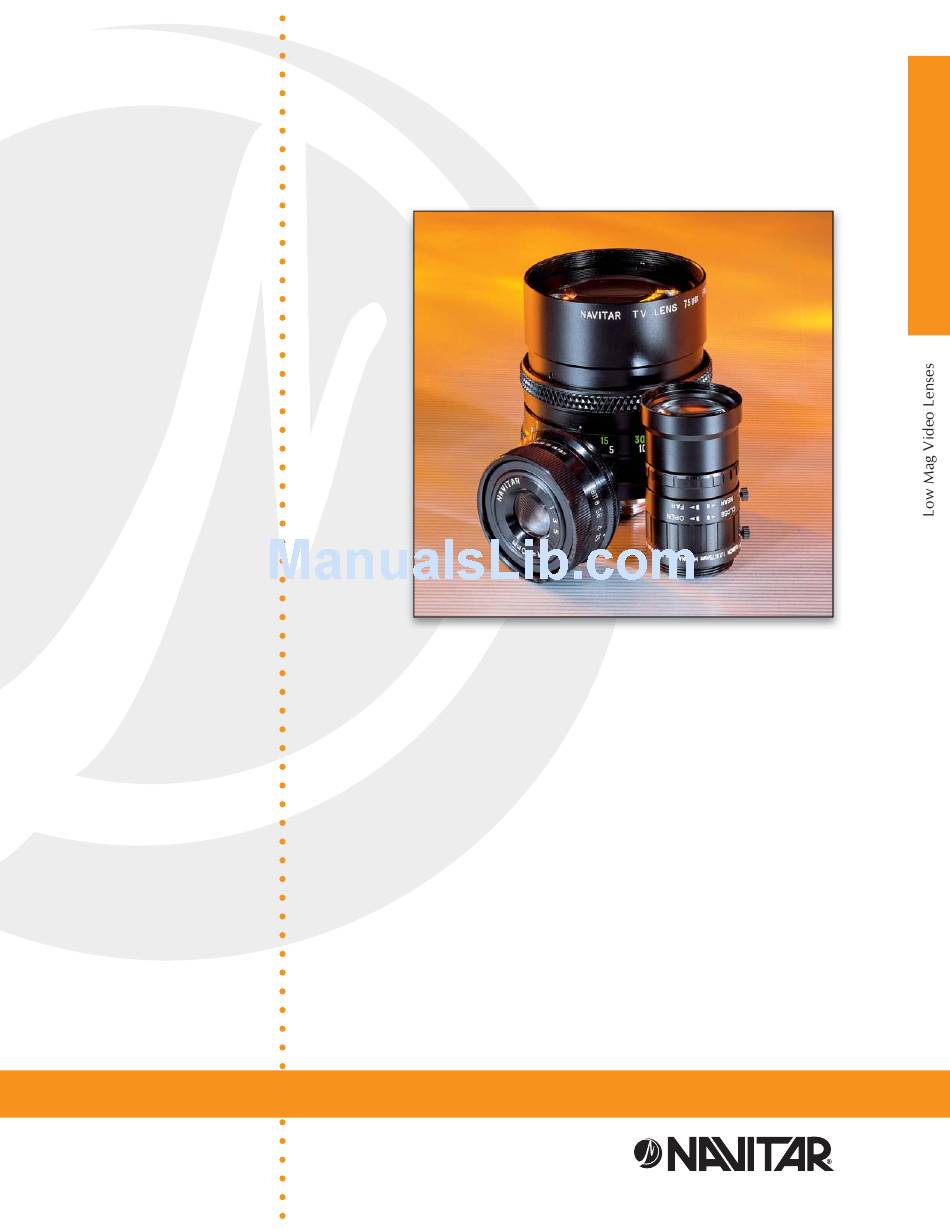

- Page 1 Low Mag Video Lenses • Video lenses for machine vision inspection. • Macro zoom lenses for close-up inspection. • Up to 2K sensor coverage. • Megapixel lenses. • Telecentric lenses. • Motorized lenses. • Fujinon lenses. • SWIR lenses.
- Page 2 We offer a complete range of video lenses for every industrial application. Video lenses from Navitar are the ideal choice for applications ranging from PC board inspection to viewing glass bottles on a production line. Video Lens Selection...
- Page 3 Understanding Focal Length and F/Number Video lenses can be classified into three categories according to focal length: standard, wide angle and telephoto. Focal length is the distance between the camera sen- sor and the center of the lens. The greater the focal length, the larger the image will appear.
- Page 4 1/2”, 2/3” and 1”), using the same focal length lens, will each yield a dif- ferent field of view. Lenses designed for a larger image sensor device will work on a new, smaller size camera. However, if a lens designed for a smaller format im- age sensor device (i.e.
- Page 5 P h o n e : 8 0 0 - 8 2 8 - 6 7 7 8 o r 5 8 5 - 3 5 9 - 4 0 0 0 Flange Distance and Back Focal Length C-Mount and CS-Mount Lenses C-Mount and CS-Mount Lens/ Camera Compatibility...
- Page 6 Ø40.5 P=0.50 C-Mount C-Mount Locking screws on focus and/or iris available on most lenses. e m a i l : i n f o @ n a v i t a r . c o m • Illustration Dimensions are in mm Conversion Factor: 25.4 mm = 1 inch...
- Page 7 Navitar Machine Vision Lenses 2/3” Format Lenses Model NMV-5M23 Focal Length (mm) Iris Range/F-Stop 2.8 x 16 Manual w/ Iris lock screws Manual w/ Control Focus lock screws Zoom — 1” — 2/3” 196.8 x 147.6 Object 1/2” 110 x 105 Area 1/3”...
- Page 8 Ø37 P=0.75 Ø67 P=0.75 C-Mount C-Mount Locking screws on focus and/or iris available on most lenses. e m a i l : i n f o @ n a v i t a r . c o m • NAV-2514...
- Page 9 Navitar Machine Vision Lenses 1/2” Format Lenses Model NMV-4WA Focal Length (mm) Iris Range/F-Stop 1.4 - 16 Manual w/lock Iris Screws Manual w/lock Control Focus Screws Zoom — 1” — 2/3” — Object 1/2” 396 x 247 Area 1/3” 297 x 185 1/4”...
- Page 10 : / / m a c h i n e v i s i o n . n a v i t a r . c o m Motorized Zoom Lenses C22X17A-M41 C22X17B-S41 17 - 374 (22x) 17 - 374 (22x) 2.3 - 22...
- Page 11 Weight (grams) NOTES: All Fujinon “HF” lenses come with focus and iris locking screws. Using an extension tube longer than 5mm will increase the M.O.D. to 0.3m. Using an extension tube longer than 5mm will increase the M.O.D. to 0.5m.
- Page 12 1/4” Focusing Range (meters) Filter Diameter No Filter Thread Mount Weight (grams) NOTE: The above lenses are all available with auto iris. Please call for part numbers. 1/3” Format Lenses for 3CCD Cameras Model TF2.8DA-8 Focal Length (mm) Iris Range/F-Stop 2.2 - Close...
- Page 13 SWIR Lenses Navitar’s fixed focal length SWIR lenses are specifically designed for SWIR (short wave infrared) cameras and applications. Lenses are avail- able in 25mm, 35mm and 50mm focal lenghths. These lenses are ideal for a variety of imaging applications where SWIR cameras are employed such as perimeter surveillance, food sorting, toll-way monitoring, border and port security, quality control or aerial imaging.
- Page 14 24” to infinity. Focus and aperture control are standard Zoom 7000 features. Navitar also offers an 18-108 mm Bayo- net Mount Zoom Lens (3CCD Camera) (1-11898) or a Zoom 7000 locking sleeve (1-11736).
- Page 15 A 10X Macro Zoom Lens The Navitar Zoom 7010 Macro Zoom lens is designed for use with a 1/3” or smaller camera. It has a 10X zoom ratio and a 7-12” working distance (W.D. of 16” to infinity when the built-in close-up lens is removed).
- Page 16 Zoom 7000 and 7010 systems at an attractive price. It allows group viewing of dissections as you perform them, without interchanging lenses and matching special adapters. It’s ideal for continuous monitoring of slowly changing processes such as embryonic devel- opment or fish and chick hatching.
