- Page 1 Robustel R2120 Hardware Manual R2120 Hardware Manual Version: 1.0.0 Date: January 2, 2025 RT150_HM_R2120 1/12...
-
Page 2: Metal Parts
Robustel R2120 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit... - Page 3 Robustel R2120 Hardware Manual Radio Specifications for Europe Model: R2120-A5AAA-4L-A12EU RF technologies 2G, 3G, 4G, Wi-Fi Cellular Frequency 4G: LTE FDD: B1/B3/B7/B8/B20/B28 LTE TDD: B38/B40/B41 3G: WCDMA: B1/B8 2G: GSM900/DCS1800 Wi-Fi Frequency 2.4 GHz: 2.412 - 2.472 GHz 5 GHz: 5.150 - 5.825 GHz Max RF power 33 dBm±2dB@GSM, 24 dBm+1/-3dB@WCDMA, 23 dBm±2dB@LTE, 18 dBm ±...
- Page 4 Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 Robustel R2120 Hardware Manual The symbol indicates that the product should not be mixed with general household waste but must be sent to separate collection facilities for recovery and recycling. The symbol indicates that the product meets the requirements of the applicable EU directives.
- Page 6 Robustel R2120 Hardware Manual Overview The R2120 is a specialized industrial cellular PoE router designed for smart security applications. Equipped with 5 Ethernet ports, including 4 PoE-PSE ports, along with 2 Digital Inputs, 2 Digital Outputs, and an RS485 serial port, this router excels in meeting the unique demands of modern security systems.

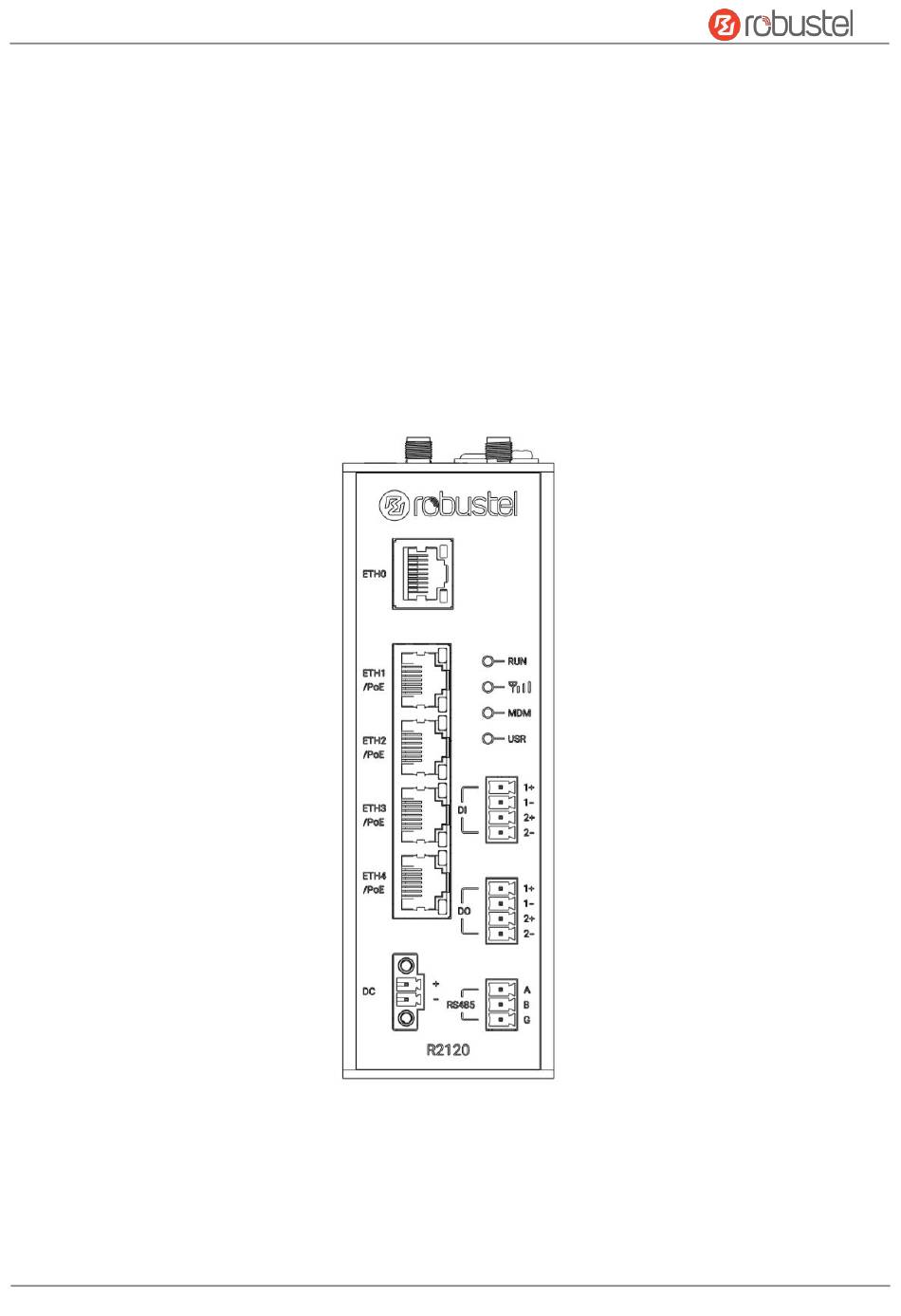

- Page 7 Robustel R2120 Hardware Manual Panel Layout (May Vary on Different Models) Top View Front View Bottom View Table1: Model Cellular Antenna Port WIFI/BLE Antenna Port R2120-A5AAA-4L-A12EU B015000001 R2120-A5AAA-4L-A13AU B015000002 RT150_HM_R2120 7/12...
- Page 8 Name Description DC Power positive DC Power negative Ethernet Ports. R2120 has 5 Ethernet ports: ETH0 can be WAN or LAN, ETH1-ETH4 are limited to LAN only. ETH1~ETH4 support 802.3at and 802.af PoE PSE. Description Link on Link...
-
Page 9: Reset Button
Robustel R2120 Hardware Manual Note: For DO, the external power supply DC voltage range is 5V~30V, 0.1A max. For DI, the absolute maximum VDC is 30V. Some applications of DIDI for reference are as below: LED Indicator... -
Page 10: Hardware Installation
Robustel R2120 Hardware Manual Hardware Installation SIM Card Installation. Remove the SIM card cover to insert the SIM cards into the device, then screw up the cover. Antenna Installation. Rotate the antenna into the antenna connector accordingly. Terminal Block Installation. Insert the 3-PIN or 4-PIN terminal blocks into the interfaces connector, then can connect the devices or sensors to the router via corresponding interfaces. - Page 11 Robustel R2120 Hardware Manual 5. Grounding the Device. Grounding will help to prevent the noise effect due to electromagnetic interference (EMI). Connect the device to the site ground wire by the grounding screw before powering on. 6. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then insert the terminal block into the power connector.
- Page 12 Robustel R2120 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
