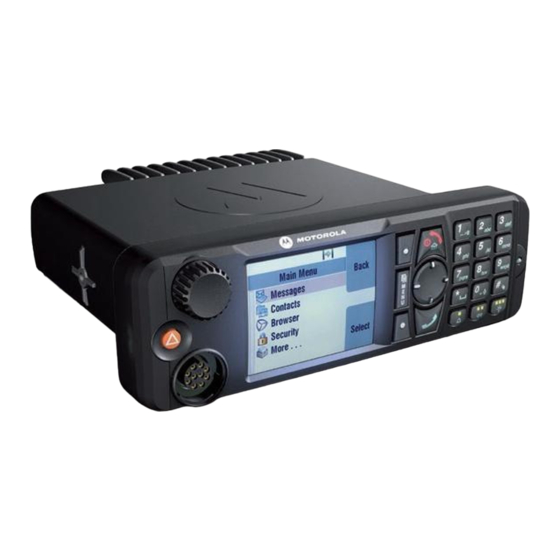

Motorola MTM800 FuG Quick Start Manual

MTM800 FuG/MTM800 FuG ET
Quick Start Guide
1 2 3 4 5 6 7
LED Status Indicator
14 13 12 4 11 10 9 8
15
16
Home Display
1 Rotary Knob/On Push Button 9 Speaker Control Key
1
2 Color Display 10 External Alarm Key
3 Menu Key 11 Send Key
4 Soft Key 12 Four Way Navigation Key
5 On-Off/End/Home Key 13 Mobile Microphone Port
4
6 Alphanumeric Keypad 14 Emergency Button
7 LED Status Indicator 15 Push-To-Talk Button (PTT)
8 Backlight Key 16 Microphone
Indicator Status
Solid green In use
Flickering green In service
Solid red Out of service
Connecting to a network
Flickering red
Entering DMO
Transmit Inhibit in service
Solid orange
Channel busy in DMO
Flickering orange Incoming private or phone call
No indication Switched off
1
2 2
2 2
4 3
3
1 Status Icon Area 3 Menu Icon
2 Soft Key Area 4 Displaying Area
Unlocking/Locking Keys Rotary Knob
To lock/unlock the keypad, press the Menu button and then *. The Service Provider can program the Rotary knob to one of
the following uses:
Unlocking the Terminal
1. Dual Control - the knob is used as both a Volume control and to scroll through
Lists. Press the knob to toggle between Volume and List (default programming).
Your terminal may be locked after turning on. To unlock the terminal enter
the code at the prompt.
2. List Control - the knob is used to scroll lists (for example talkgroups) or menu
items. In this case volume can be controlled only via menu or via external
The unlock code is originally set to 0000. Your Service Provider may change
accessories (if present).
this number before you receive your terminal.
3. Volume Control - the knob is used only as a volume control. Turn clockwise to
Soft Keys
increase the audio volume level. Press and hold the Rotary knob to lock it, press
and hold it again to unlock. On turning off the Rotary knob is also unlocked.
Press a soft key to select the option that appears in the screen directly next
to the respective key.
In the home display Contcs is displayed next to the upper soft key. Pressing
the key enters the contact list.
Emergency Button
Menu Key
Press and hold this button to enter Emergency Operation.
When the terminal is turned off, press and hold this button to turn the terminal on
Press the Menu button to enter:
in Emergency Operation (if configured by your Service Provider).
- the menu (when there is no ongoing activity). The menus allow you to
control your terminal settings. Menus are organized in a hierarchy.
The menu options provide access to a further list of options called a
sub-menu.
Looking After Your Terminal
- the context sensitive menu (when the context sensitive icon is on) to view a
list of items for the current menu. To clean your control head, use a moistened or antistatic cloth.
Do not use a dry or electrostatically charged cloth.
