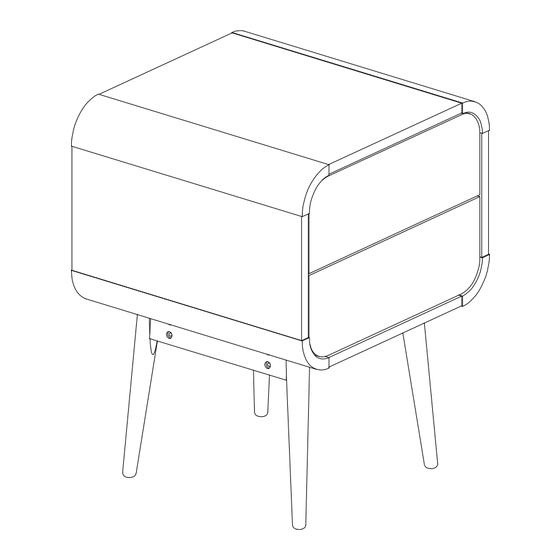

- Page 1 *Please Keep For Future Reference Only. MUZI SERIES ASSEMBLY INSTRUCTION Dimensions Width:420mm Depth:420mm Height:570mm MUZI BED SIDE TABLE IMPORTANT:- PLEASE READ THESE INSTRUCTION CAREFULLY BEFORE STARTING ASSEMBLY. MUZI -SB12045-WOK / PAGE 1...
- Page 2 IMPORTANT TIPS AND MAINTENANCE iii)To avoid dulling,do not iv)Never use ammonia cleaning i)Keep children and animal away ii)Never put the liquid on the place directly to the sunlight. product,because it will damage to avoid choking hazard. furniture. the finish. vi)Two person required. v)Use a dry cloth to wipe vii)Put a soft mat on the floor to clean the surface.
- Page 3 COMPONENTS:- Please check you have all the panels are listed below. PANELS PARTLIST 4pcs ARC EDGE DRAWER FRONT 1 2pcs DRAWER FRONT 2 2pcs 2pcs BRACE PANEL DRAWER SIDE_L 2pcs TOP PANEL DRAWER SIDE_R 2pcs BOTTOM PANEL DRAWER BACK 2pcs SIDE PANEL DRAWER BASE BACK PANEL...
-
Page 4: Hardware Needed
STEP 1 HARDWARE NEEDED: 8PCS 4PCS STEP 2 HARDWARE NEEDED: 8PCS MUZI -SB12045-WOK / PAGE 4... - Page 5 HARDWARE NEEDED: STEP 3 8PCS 8PCS 2SETS PUSH SWITCH 4PCS Ⅰ Ⅱ 4&5 4&5 4&5 4&5 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 4 HARDWARE NEEDED: 16PCS MUZI -SB12045-WOK / PAGE 5...
- Page 6 STEP 5 HARDWARE NEEDED: 8PCS 8PCS ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL STEP 6 6&7 6&7 MUZI -SB12045-WOK / PAGE 6...
- Page 7 HARDWARE NEEDED: 4PCS STEP 7 8PCS Second Hole Last Third Hole SCREW MUST BE INSERTED IN THE SECOND HOLE ON THE DRAWER RUNNER STEP 8 4&5 MUZI -SB12045-WOK / PAGE 7...
- Page 8 STEP 9 STEP 10 MUZI -SB12045-WOK/ PAGE 8...
- Page 9 STEP 11 HARDWARE NEEDED: 8 PCS 10&11 ARROWON LOCKING NUT MUST POINT TOWARDS HOLE IN EDGE OF PANEL DRAWER X2 STEP 12 HARDWARE NEEDED: 8 PCS 4 PCS 10&11 Third Hole Last Hole DRAWER X2 MUZI -SB12045-WOK/ PAGE 9...
- Page 10 HARDWARE NEEDED: STEP 13 8 PCS 10&11 DRAWER X2 STEP 14 DRAWER X2 MUZI -SB12045-WOK/ PAGE 10...
- Page 11 STEP 15 HARDWARE NEEDED: 8PCS 2SETS Ⅰ 8&9 Ⅱ 8&9 8&9 STEP 16 MUZI -SB12045-WOK/ PAGE 11...
- Page 12 STEP 17 HARDWARE NEEDED: 4 PCS 4 PCS STEP 18 MUZI -SB12045-WOK/ PAGE 12...
