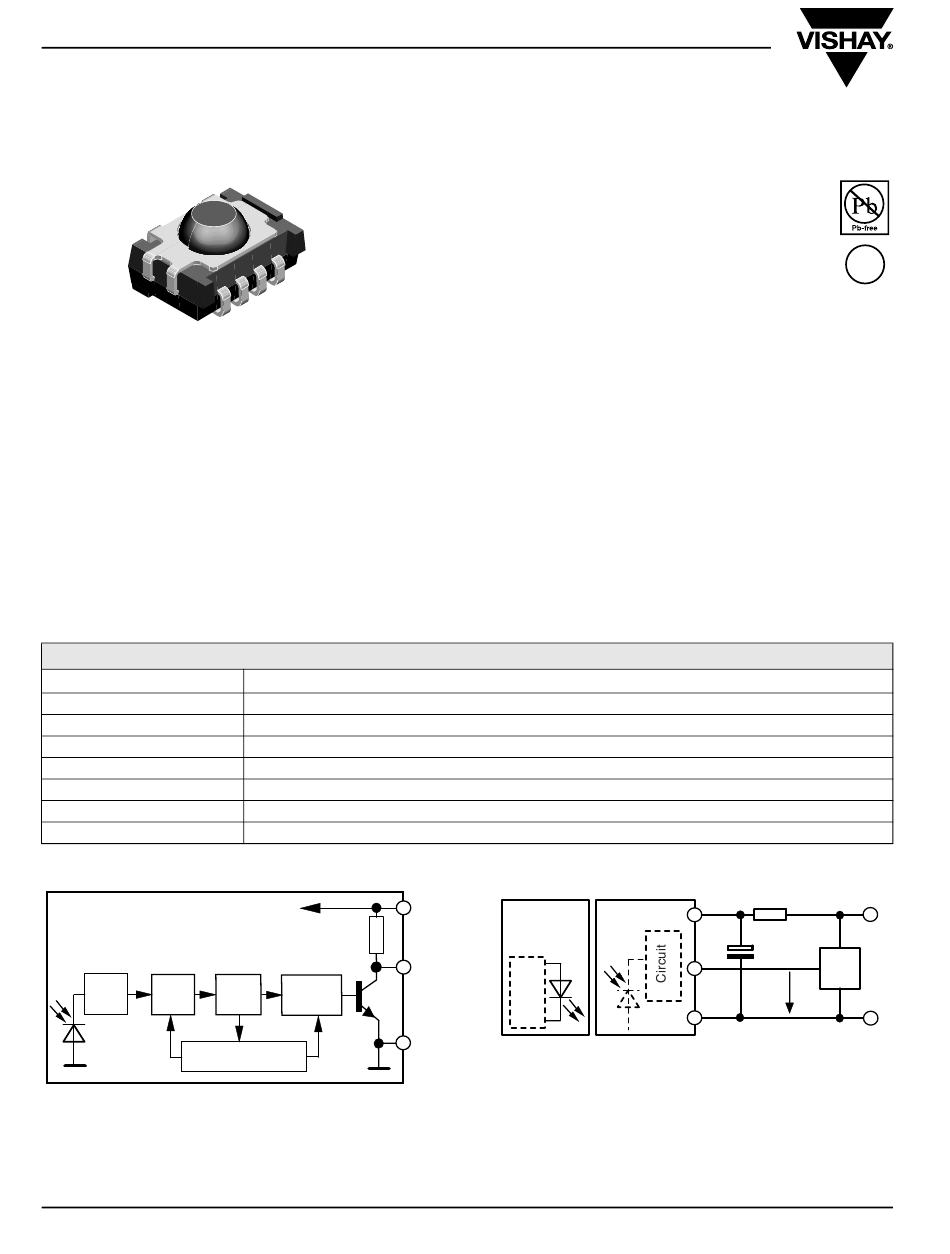

TSOP61..
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
MECHANICAL DATA
Pinning
1 = GND, 2 = GND, 3 = V
, 4 = OUT
S
DESCRIPTION
The TSOP61.. series are miniaturized SMD-IR receiver
modules for infrared remote control systems. PIN diode and
preamplifier are assembled on lead frame, the epoxy
package is designed as IR filter.
The demodulated output signal can directly be decoded by a
microprocessor. The main benefit is the operation with short
burst transmission codes and high data rates.
This component has not been qualified according to
automotive specifications.
PARTS TABLE
CARRIER FREQUENCY
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
BLOCK DIAGRAM
Input
AGC
PIN
Control circuit
16838
www.vishay.com
178
4
3
2
1
16797
25 kΩ
Band
Demo-
pass
dulator
FEATURES
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Continuous data transmission possible
• TTL and CMOS compatibility
• Output active low
• Low power consumption
• Lead (Pb)-free component
• Component in accordance to RoHS 2002/95/EC and
WEEE 2002/96/EC
SPECIAL FEATURES
• Enhanced data rate up to 4000 bit/s
• Operation with short burst possible (≥ 6 cycles/burst)
• Taping available for topview and sideview assembly
SHORT BURSTS AND HIGH DATA RATES (AGC1)
TSOP6130
TSOP6133
TSOP6136
TSOP6137
TSOP6138
TSOP6140
TSOP6156
APPLICATION CIRCUIT
17170
3
Transmitter
V
with
S
TSALxxxx
4
OUT
1;2
GND
R
and C
recommended to suppress power supply
1
1
disturbances. The output voltage should not be
hold continuously at a voltage below V
by the external circuit.
= 100 Ω
R
1
TSOPxxxx
V
S
=
C
1
4.7 µF
OUT
GND
= 2.0 V
O
Document Number: 82176
Rev. 1.7, 10-Jun-08
e3
+ V
S
µC
V
O
GND

Advertisement

loading
Need help?

Need help?

Do you have a question about the TSOP61 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vishay TSOP61 Series

  • Page 1 TSOP61.. Vishay Semiconductors IR Receiver Modules for Remote Control Systems FEATURES • Photo detector and preamplifier in one package • Internal filter for PCM frequency • Continuous data transmission possible • TTL and CMOS compatibility • Output active low • Low power consumption 16797 •...
  • Page 2: Absolute Maximum Ratings

    TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems ABSOLUTE MAXIMUM RATINGS PARAMETER TEST CONDITION SYMBOL VALUE UNIT Supply voltage (pin 3) - 0.3 to + 6.0 Supply current (pin 3) Output voltage (pin 1) - 0.3 to (V + 0.3)
  • Page 3 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems Optical Test Signal Correlation with ambient light sources: 10 W/m 1.4 klx (Std.illum.A, T= 2855 K) 10 W/m 8.2 klx (Daylight, T = 5900 K) 600 µs 600 µs t = 60 ms...
  • Page 4 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems 0° 10° 20° 30° 40° 50° 60° f = 38 kHz, E = 2 mW/m 70° 80° Burst Length (number of cycles/burst) - Relative Transmission Distance 16914 16801 Fig. 9 - Max. Envelope Duty Cycle vs. Burstlength Fig.
  • Page 5 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems SUITABLE DATA FORMAT The circuit of the TSOP362.. is designed so that unexpected output pulses due to noise or disturbance signals are avoided. A bandpass filter, an integrator stage and an automatic gain control are used to suppress such disturbances.
  • Page 6: Package Dimensions

    TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems PACKAGE DIMENSIONS 16629 ASSEMBLY INSTRUCTIONS Reflow Soldering • Handling after reflow should be done only after the work surface has been cooled off • Reflow soldering must be done within 72 h while stored under a max.
  • Page 7 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems VISHAY LEAD (Pb)-FREE REFLOW SOLDER PROFILE max. 260 °C 255 °C 245 °C 240 °C 217 °C max. 20 s max. 100 s max. 120 s max. Ramp Up 3 °C/s max.
  • Page 8 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems TAPING VERSION TSOP..TR dimensions in millimeters 16585 Document Number: 82176 www.vishay.com Rev. 1.7, 10-Jun-08...
  • Page 9 The standard packing units are labeled with standard bar code labels before transported as finished goods to warehouses. The labels are on each packing unit and contain Vishay Semiconductor GmbH specific data. www.vishay.com Document Number: 82176 Rev. 1.7, 10-Jun-08...
  • Page 10 TSOP61.. IR Receiver Modules for Vishay Semiconductors Remote Control Systems VISHAY SEMICONDUCTOR GMBH STANDARD BAR CODE PRODUCT LABEL (Finished Goods) PLAIN WRITING ABBREVIATION LENGTH Item-description Item-number Selection-code LOT-/serial-number BATCH Data-code 3 (YWW) Plant-code Quantity Accepted by Packed by Mixed code indicator...
  • Page 11: Esd Precaution

    Proper storage and handling procedures should be followed to prevent ESD damage to the devices especially when they The Vishay Semiconductors standard bar code labels are are removed from the antistatic shielding bag. Electro-static printed at final packing areas. The labels are on each sensitive devices warning labels are on the packaging.
  • Page 12 Various national and international initiatives are pressing for an earlier ban on these substances. Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of ODSs listed in the following documents.
  • Page 13 Vishay disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase, including but not limited to the warranty expressed...
