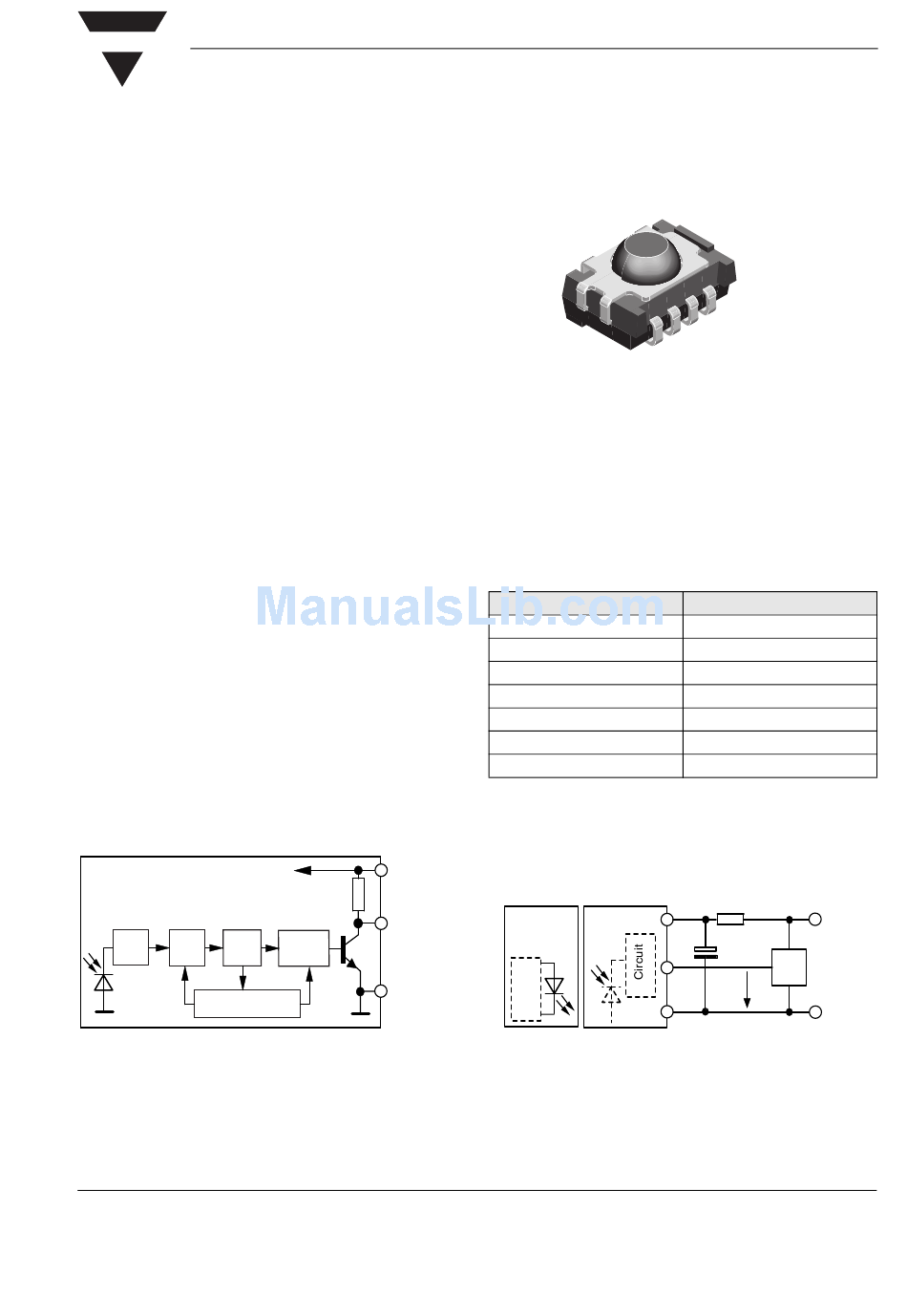

VISHAY
IR Receiver Modules for Remote Control Systems
Description
The TSOP62.. - series are miniaturized SMD-IR
Receiver Modules for infrared remote control sys-
tems. PIN diode and preamplifier are assembled on
lead frame, the epoxy package is designed as IR fil-
ter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP62.. is the stan-
dard IR remote control SMD-Receiver series, sup-
porting all major transmission codes.
Features
• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Continuous data transmission possible
• TTL and CMOS compatibility
• Output active low
• Low power consumption
• High immunity against ambient light
• Low power consumption
Special Features
• Improved immunity against ambient light
• Suitable burst length ≥ 10 cycles/burst
• Taping available for Topview and Sideview
assembly
Block Diagram
16839
Band
Input
AGC
Pass
PIN
Control Circuit
Document Number 82177
Rev. 3, 23-Jun-03
3
V
S
30 kΩ
4
OUT
Demo-
dulator
1;2
GND
Vishay Semiconductors
1
Mechanical Data
Pinning:
1 = GND, 2 = GND, 3 = V
Parts Table
Part
TSOP6230
TSOP6233
TSOP6236
TSOP6237
TSOP6238
TSOP6240
TSOP6256
Application Circuit
16842
Transmitter
TSOPxxxx
with
TSALxxxx
R
+ C
recommended to suppress power supply
1
1
disturbances.
The output voltage should not be hold continuously at
a voltage below V
O =
3.3 V by the external circuit.
TSOP62..
4
3
2
16797
, 4 = OUT
S
Carrier Frequency
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
= 100 Ω
R
1
V
+V
S
S
C
=
1
4.7 µF
µC
OUT
V
O
GND
GND
www.vishay.com
1
Advertisement
Table of Contents
Related Manuals for Vishay PICA93LV
Summary of Contents for Vishay PICA93LV
-
Page 1: Mechanical Data
VISHAY IR Receiver Modules for Remote Control Systems Description The TSOP62.. - series are miniaturized SMD-IR Receiver Modules for infrared remote control sys- tems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR fil- ter. -
Page 2: Absolute Maximum Ratings
TSOP62.. Vishay Semiconductors Absolute Maximum Ratings = 25 °C, unless otherwise specified Parameter Supply Voltage Supply Current Output Voltage Output Current Junction Temperature Storage Temperature Range Operating Temperature Range Power Consumption Electrical and Optical Characteristics = 25 °C, unless otherwise specified Parameter Supply Current = 5 V, E... -
Page 3: Typical Characteristics
VISHAY Typical Characteristics Optical Test Signal (IR diode TSAL6200, I = 0.4 A, 30 pulses, f = f w 10/fo is recommended for optimal function Output Signal < t < 15/f –5/f < t < t +6/f Figure 1. Output Function Output Pulse Input Burst Duration l = 950 nm,... - Page 4 TSOP62.. Vishay Semiconductors f = f f = 10 kHz f = 1 kHz f = 100 Hz 10.0 100.0 – AC Voltage on DC Supply Voltage (mV) 16912 sRMS Figure 7. Sensitivity vs. Supply Voltage Disturbances f(E) = f E –...
- Page 5 VISHAY Suitable Data Format The circuit of the TSOP62.. is designed in that way that unexpected output pulses due to noise or distur- bance signals are avoided. A bandpass filter, an inte- grator stage and an automatic gain control are used to suppress such disturbances.
- Page 6 TSOP62.. Vishay Semiconductors Package Dimensions in mm Assembly Instructions Reflow Soldering • Reflow soldering must be done within 72 hours stored under max. 30 °C, 60 % RH after opening envelop www.vishay.com 16629 • Recommended soldering paste (composition: SN 63 %, Pb 37 %) Melting temperature 178 °C to 192 °C •...
- Page 7 VISHAY • Recommended thickness of metal mask is 0.2 mm for screen printing. • The recommended reflow furnace is a combination- type with upper and lower heaters. • Set the furnace temperatures for pre-heating and heating in accordance with the reflow temperature profile as shown below.
- Page 8 TSOP62.. VISHAY Vishay Semiconductors Taping Version TSOP..TT 16584 www.vishay.com Document Number 82177 Rev. 3, 23-Jun-03...
- Page 9 TSOP62.. VISHAY Vishay Semiconductors Taping Version TSOP..TR 16585 Document Number 82177 www.vishay.com Rev. 3, 23-Jun-03...
-
Page 10: Reel Dimensions
TSOP62.. VISHAY Vishay Semiconductors Reel Dimensions 16734 www.vishay.com Document Number 82177 Rev. 3, 23-Jun-03... - Page 11 VISHAY Leader and Trailer Trailer no devices min. 200 Cover Tape Peel Strength According to DIN EN 60286-3 0.1 to 1.3 N 300 ± 10 mm/min 165 ° - 180 ° peel angle Label Standard bar code labels for finished goods The standard bar code labels are product labels and used for identification of goods.
- Page 12 TSOP62.. Vishay Semiconductors Vishay Semiconductor GmbH standard bar code product label (finished goods) Plain Writing Item-Description Item-Number Selection-Code LOT-/ Serial-Number Data-Code Plant-Code Quantity Accepted by: Packed by: Mixed Code Indicator Origin Long Bar Code Top Item-Number Plant-Code Sequence-Number Quantity Total Length Short Bar Code Bottom Selection–Code Data-Code...
-
Page 13: Esd Precaution
TSOP62.. VISHAY Vishay Semiconductors Recommended Method of Storage Dry box storage is recommended as soon as the alu- minium bag has been opened to prevent moisture absorption. The following conditions should be observed, if dry boxes are not available: • Storage temperature 10 °C to 30 °C •... - Page 14 TSOP62.. Vishay Semiconductors Ozone Depleting Substances Policy Statement It is the policy of Vishay Semiconductor GmbH to 1. Meet all present and future national and international statutory requirements. 2. Regularly and continuously improve the performance of our products, processes, distribution and operatingsystems with respect to their impact on the health and safety of our employees and the public, as well as their impact on the environment.
