Elmo TT-02RX Quick Reference Manual

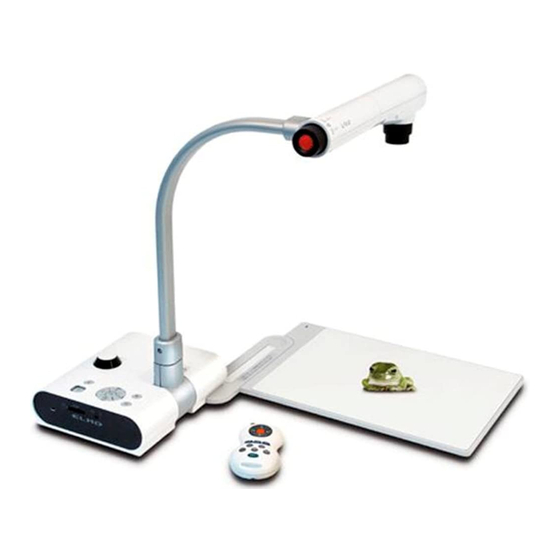

Elmo Document Camera TT-02RX Quick Reference Guide
Below are instructions on how to operate the Elmo document camera.

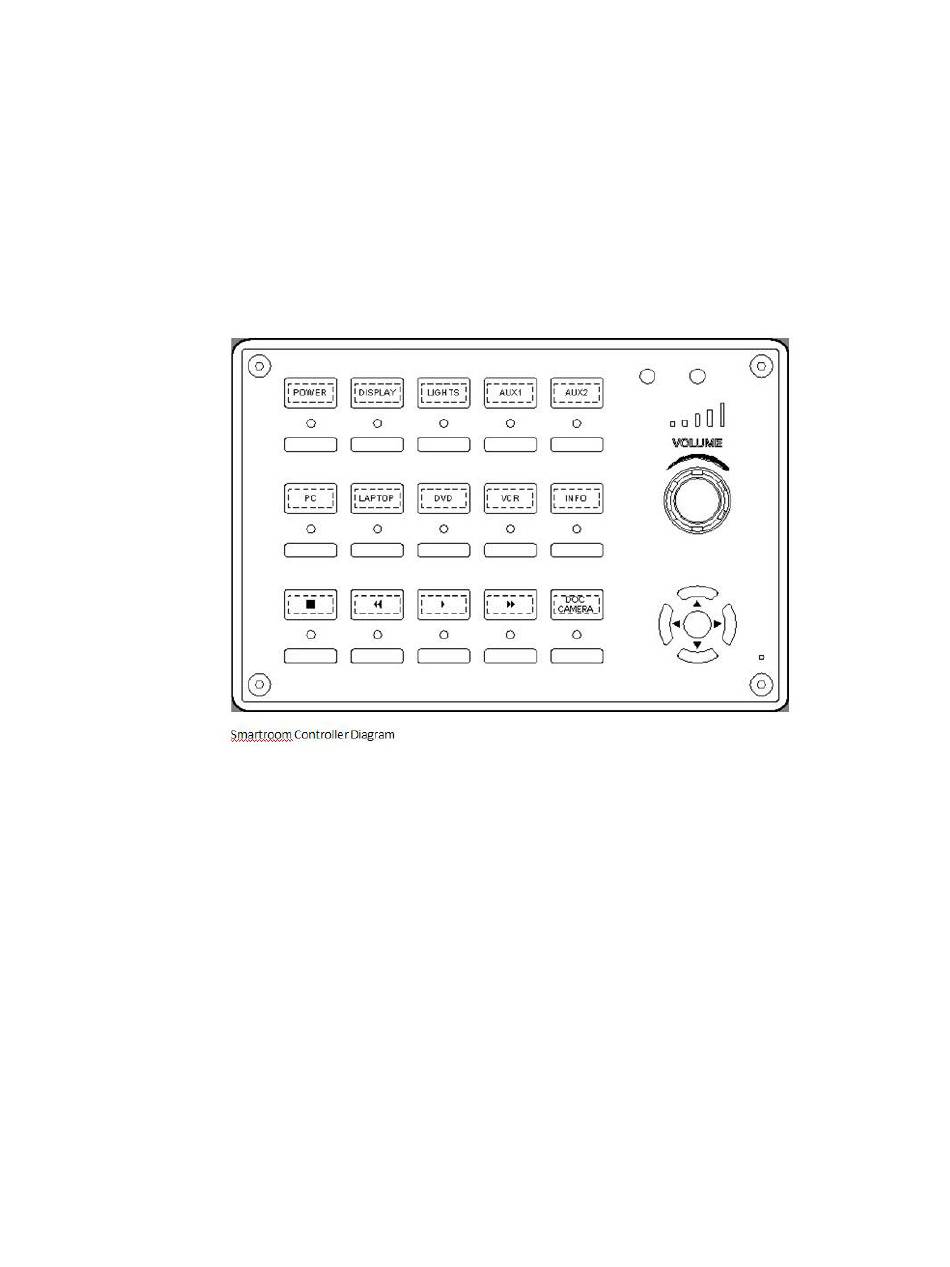

To start press the Power button on the Smartroom control panel so the red light
appears. The red light means the device is on. Press the Display button and
then the Doc Camera button on the Smartoom control panel so the red lights
appear. The Elmo document camera operation instructions are explained below.
Elmo Document Camera Operation Instructions
1. Press the on button on the Elmo operating panel. The light will turn blue
meaning the camera is on. (See page 2 for the camera part locations.)
2. Place your document on the camera stage. (Once again see page 2 for
the camera part locations.)
3. Page 5 and 9 of this guide explain how to adjust the focus and brightness
for the camera.
4. To power off the equipment press the power off button on the camera.
The red light will turn on meaning the unit is off. When you press the
Power button on the Smartroom control panel the red light will go off
meaning the devices are off.
