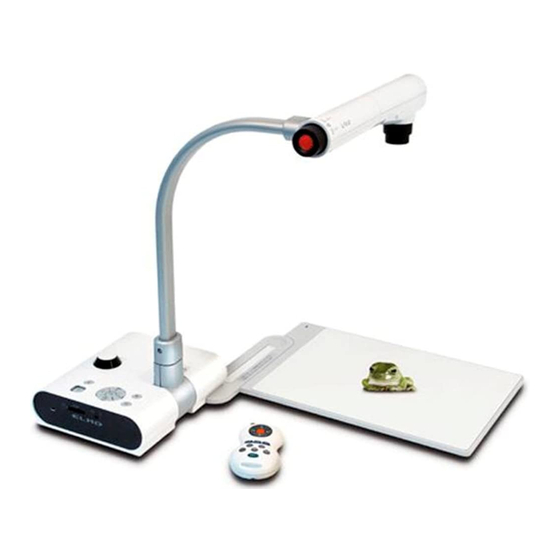

Elmo TT-02RX Quick Training Manual

Configure
1
your classroom
Basic Configuration
AC plugs
RGB cable
Power on the TT-02RX,
2
Zoom and Focus
Twist the zoom knob to zoom in/out
Press the Auto-focus button to focus
after zooming.
Capture and Review
4
Pause the camera image.
Press again to unfreeze.
Menu (see page 2)
Power
A. Insert SD card

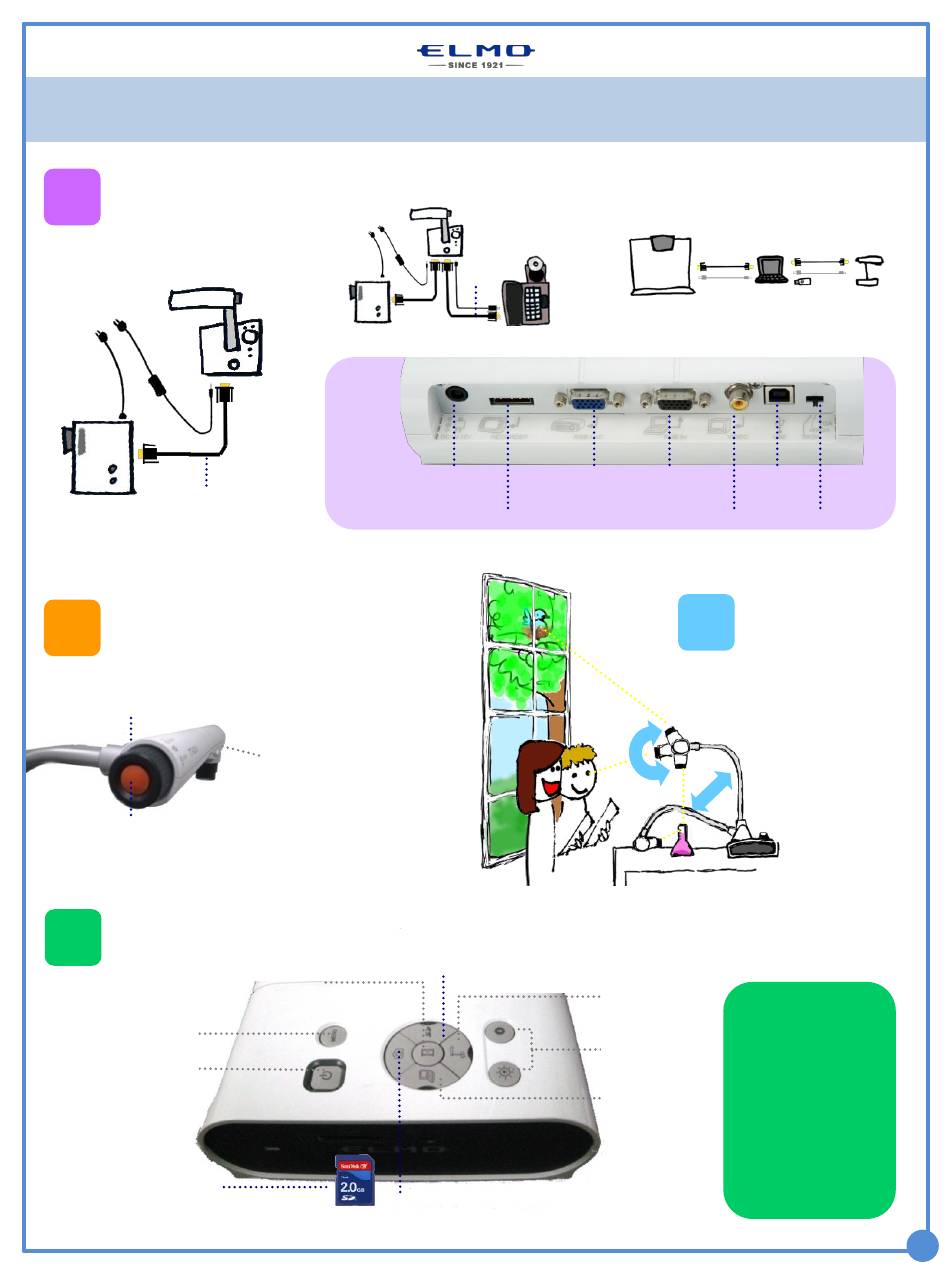

QUICK TRAINING GUIDE:
With Computer
AC plugs
Rear
panel
Plug-in for
AC adaptor
LED light
Use as necessary
C. Review saved images
B. Capture image
TT-02RX
With Interactive Whiteboard
Install Image
Mate software
USB
RGB OUT
To projector To computer
Future accessory
View the
live image
Adjust
brightness
View computer
desktop
RGB IN USB
To computer
VIDEO OUT To TV monitor Resolution
3
Rotate
Rotate the camera
column close to a
small object, turn
the camera head
horizontally to view
students giving a
presentation,
speech, etc.
Capture the image
of worksheets,
student work, etc.
and save them on
the SD card.
Quickly and easily
review later during
class by pressing
the SD button.
