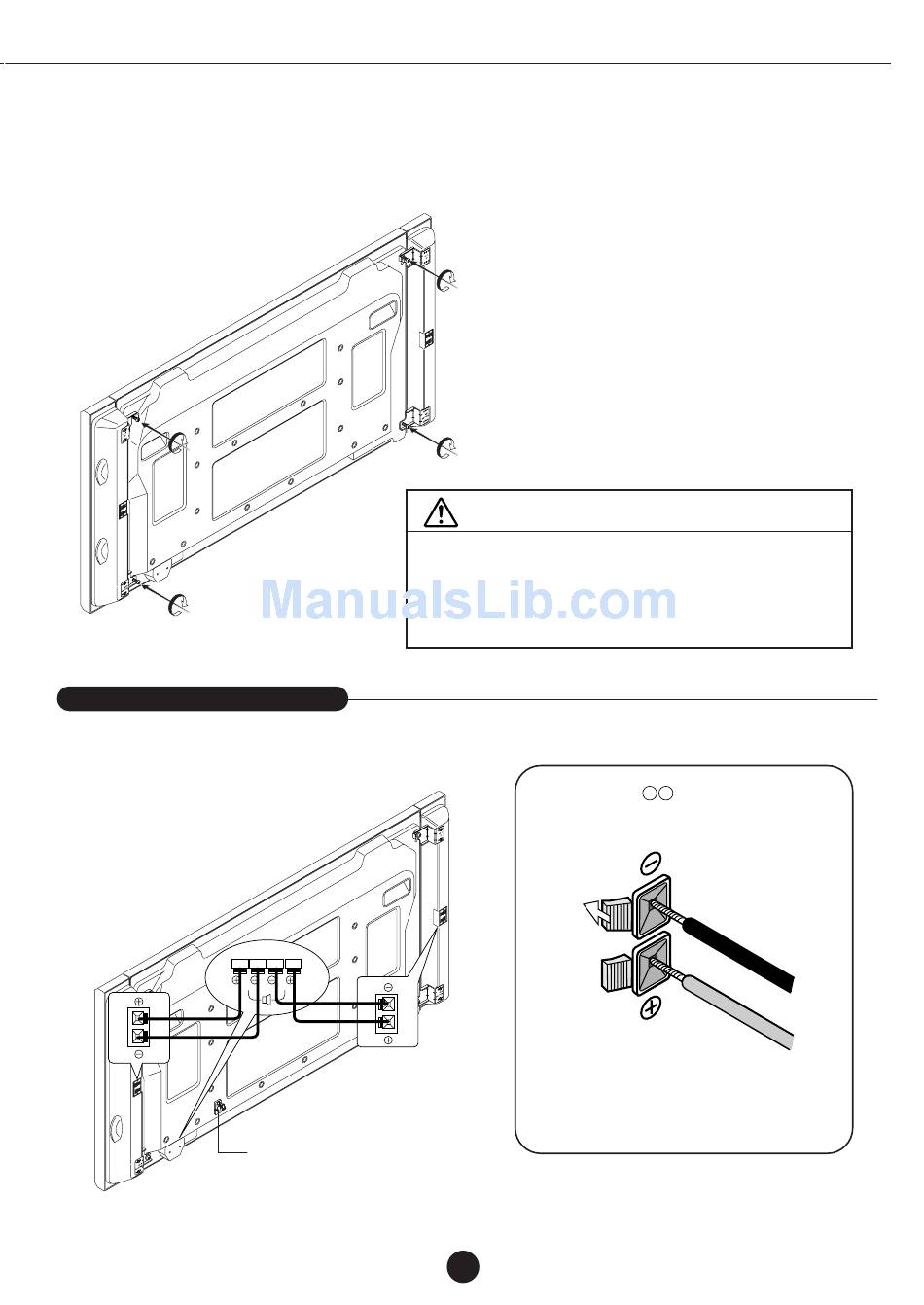

Fully tighten the four partially tightened screws.

*Push the speaker against the monitor while driving the screw.

Connecting the cords

Turn off the power of all connected units before connecting the cords.

Connect the monitor's SPEAKER R and L terminals

with the speakers' terminals using the included

connection cords.

RIGHT

LEFT

Cord Clamper

Peel off the protective tape from the back of the clamper, then

mount the clamper in the desired position and clamp the cords

together.

WARNING

● Do not move the monitor by holding onto the speakers which

have been mounted to the monitor.

This could cause the monitor to fall and result in injury.

●

Fasten the screws securely. Failing to do so could cause the

speakers to fall and result in injury.

There is polarity

connection cord.

Connect each conductor to the correct terminal.

Hold down the button of the connection terminal

with your finger, insert the conductor of the

connection cable, and release your finger.

with the conductor of each

＋ −

Black

Red
