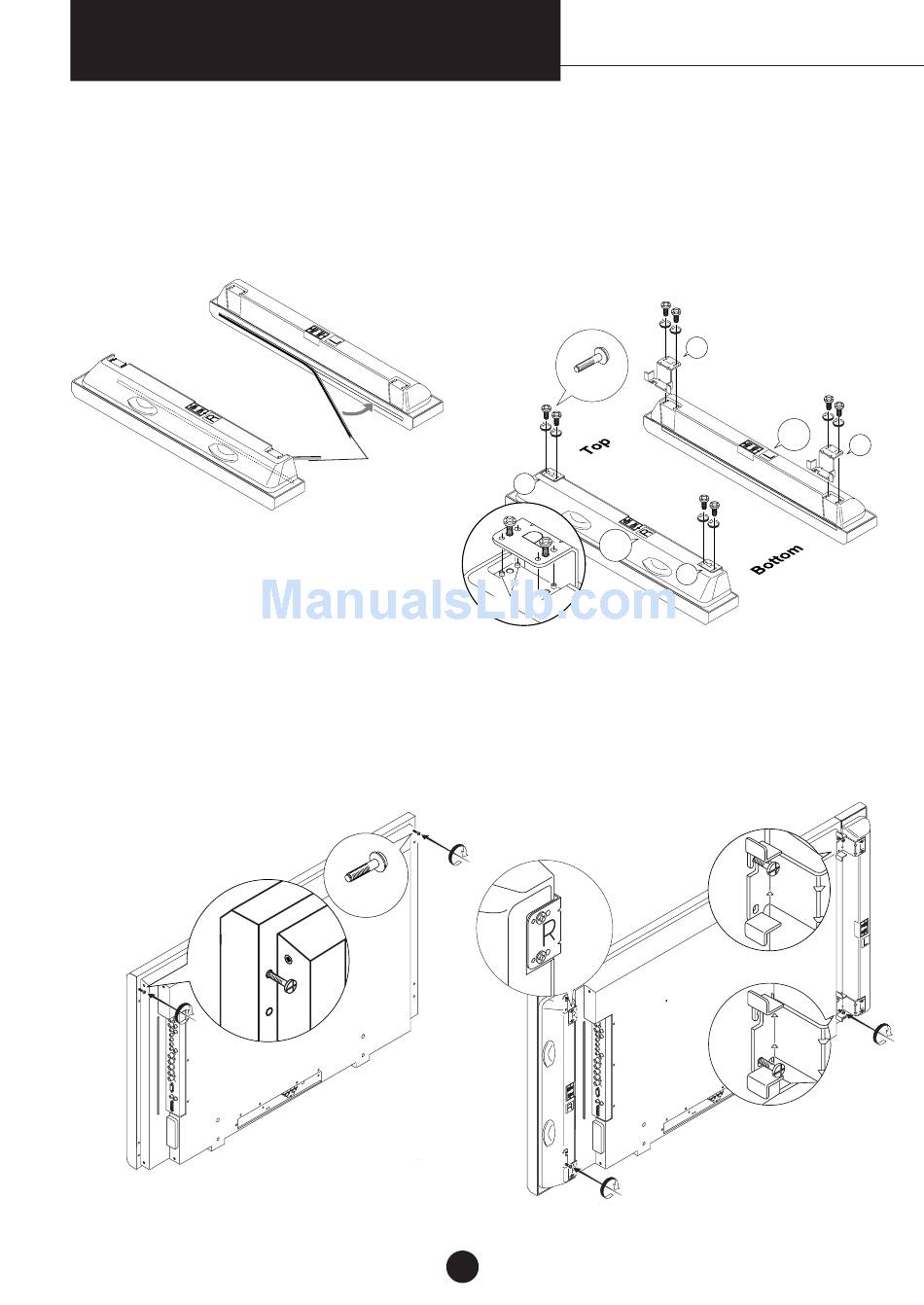

Mounting the plasma monitor using mount fittings A
The speakers are marked R for use on the right side and L for use on the left side.
At the time of mounting, check for the letter R or L appearing on the label at the back of the speaker,
and on the mounting fittings.
1
Attach the cushions to the sides of the speakers in the
positions indicated on the diagram.
3
Partially tighten the included M4 X 14 screws in the
screw holes on the top of the monitor.
2
Cushions
R
Guide pins
ガイドピン
4
Catch the hooks at the top of the speaker on the partially
tightened screws, then line up the screw hole in the bottom
of the monitor with the hole in the speaker's hook and
partially tighten using the included M4 x 14 screws (two
each).
M4×14
4
Mount the two right mount fittings ("R") to the speaker
labeled "R", the two left mount fittings ("L") to the speaker
labeled "L".
Mount by inserting the guide pins on the speaker into the
holes in the mount fitting then fastening the fitting in place
using the included M4 x 10 screws (two each).
L
M4×10
R
R
L
L
