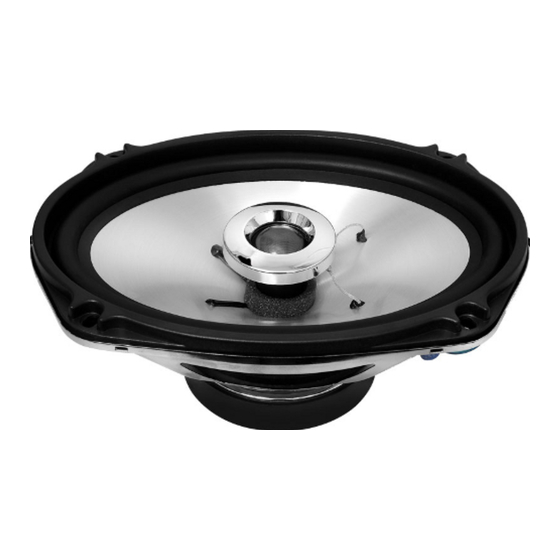

- Page 1 H-CSH692 16 24 CM 2-WAY 16 24 COAXIAL CAR SPEAKERS Instruction manual...
-
Page 2: Important Safeguards
Description The set of acoustic system includes: acoustic system metal grill 2 pcs speaker wire 2 m screw 8 pcs clip 8 pcs (x 8) (x 8) Important safeguards · The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. ·... -
Page 3: Mounting The Speakers
· If you cannot find the appropriate mounting location, consult your car dealer or your nearest dealer before mounting. CAUTION: Take extreme caution when working near the gas tank, gas lines, brake or hydraulic lines and electrical wiring. Mounting the speakers Installation kits are available from your dealer or local stereo shop to help make your installation easy. - Page 4 Securing the speakers · Position the speaker into the mounting hole and re-confirm the correct mounting location and hole placement. · Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip.
- Page 5 If unit fails to operate properly · Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position...
-
Page 6: Specification
Specification Loudspeaker one woofer: 16 24 cm (6 9 ) Al-Plate injection cone midrange: 3 cm (1.2 ) TI-plated mylar Magnet main: ferrite 20 Oz magnet tweeter: neodymium Peak output power 220 W Rated output power 100 W Impedance 4 hm Sensitivity 92 dB Frequency response... - Page 7 (x 8) ( 8) · · · · · ·...
- Page 8 · · · · · · , Ø =5...
- Page 9 · · · · ·...
- Page 10 · · ·...
- Page 11 : 16 24 : 3 c (1,2 ) (622 ) 30-22000 263,5 x 183 111 / 4,1...
