Summary of Contents for Hyundai H-CSD602

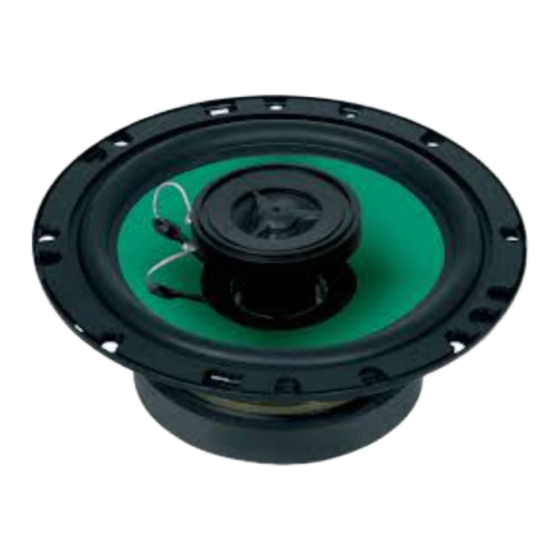

- Page 1 H-CSD602 16 CM 2-WAY COAXIAL CAR SPEAKERS Instruction manual...
-
Page 2: Important Safeguards
Description The set of acoustic system includes: acoustic system metal grill 2 pcs speaker wire 3 m screw 8 pcs clip 8 pcs (x 8) (x 8) Important safeguards · The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. ·... -
Page 3: Mounting The Speakers
· Never run the wiring on the outside of the vehicle or under it where it can be damaged by road hazards or the moving parts of the vehicle. Use existing wire channels, sills, panels and molding strips inside the vehicle to hide the wiring for safety and a neat appliance. ·... - Page 4 · After cutting and drilling all holes, inspect the mounting areas for any metal burrs or rough edges. File any area that may interfere with the mounting of the speaker. · Clean any metal shavings from the mounting area and check for areas in which water may enter the speaker cavity. Treat the area for water protection when necessary.
- Page 5 If unit fails to operate properly · Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position...
-
Page 6: Specification
Specification Loudspeaker one woofer: 16 cm (6.5 ) injection-molted polypropylene cone Magnet main: ferrite 7.8 Oz magnet tweeter: neodymium Peak output power 160 W Rated output power 80 W Impedance 4 hm Sensitivity 91 dB Frequency response 60-22000 Hz Dimensions 156.5 x 62 mm Net / Gross weight 0.7 kg / 1.77 kg... - Page 7 (x 8) ( 8) · · ·...
- Page 8 · · · · · · · · · , Ø =5...
- Page 9 · · · · ·...
- Page 10 · · ·...
- Page 11 : 16 (6,5 ) (242 ) 60-22000 156,5 62 / 1,77...
