Hyundai H-CSA403 Instruction Manual

10 cm 3-way coaxial acoustic system
Hide thumbs

Advertisement

Quick Links

Download this manual
H-CSA403
10 CM 3-WAY
10
3-
COAXIAL ACOUSTIC SYSTEM
Instruction manual

Advertisement

loading

Related Manuals for Hyundai H-CSA403

Summary of Contents for Hyundai H-CSA403

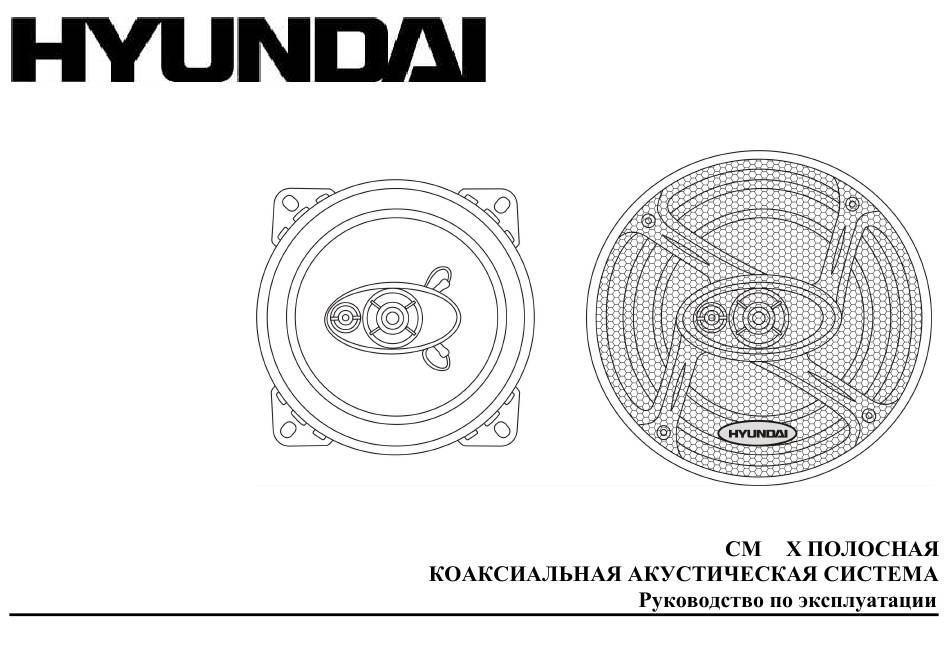

  • Page 1 H-CSA403 10 CM 3-WAY COAXIAL ACOUSTIC SYSTEM Instruction manual...

  • Page 2: Important Safeguards

    Description The set of acoustic system includes: acoustic system metal grill 2 pcs speaker wire 2 m screw 8 pcs clip 8 pcs (x 8) (x 8) Important safeguards The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped.

  • Page 3: Mounting The Speakers

    Do not continuously use the speaker system beyond the nominal power handling capacity. Keep recorded tapes, watches, and personal credit cards using magnetic coding away from the speaker system to protect them from damage caused by the magnets in the speakers. If you cannot find the appropriate mounting location, consult your car dealer or your nearest dealer before mounting.
  • Page 4 Securing the speakers Position the speaker into the mounting hole and re-confirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip.
  • Page 5 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position Bad power connections...

  • Page 6: Specification

    Specification Loudspeaker one woofer: 10 cm (4 ) injection cone midrange: 30 mm mylar tweeter: 15 mm piezo Magnet main: ferrite 5.3 Oz magnet Peak output power 100 W Rated output power 50 W Impedance 4 hm Sensitivity 91 dB Frequency response 100-20000 Hz Dimensions...
  • Page 7 (x 8) ( 8)
  • Page 8 , Ø =5...
  • Page 11 : 10 (4 ) : 30 : 15 (165 ) 100-20000 139 69 0,45 / 1,1...
