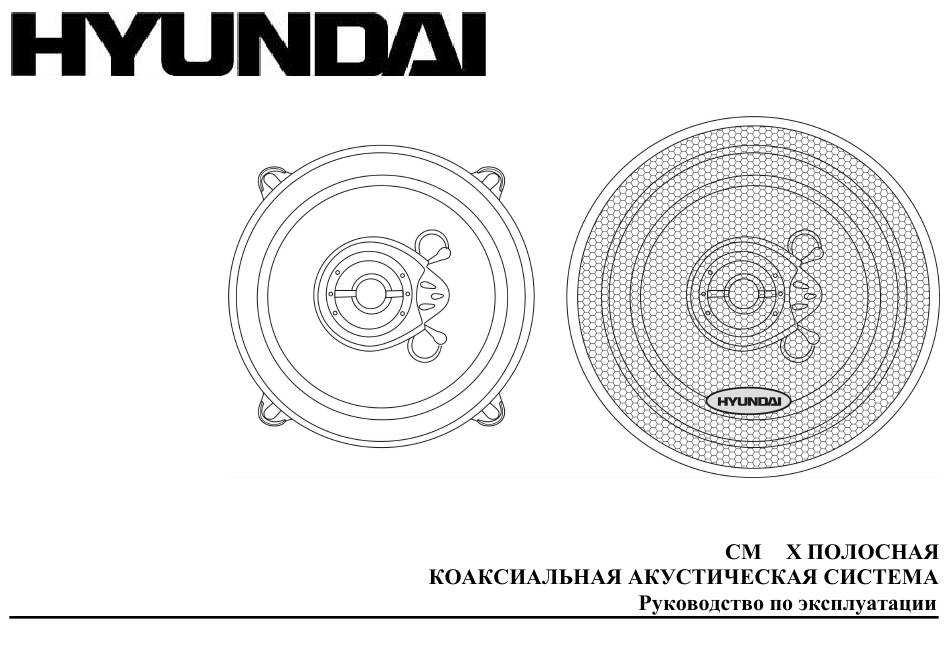

- Page 1 H-CSB502 13 CM 2-WAY COAXIAL ACOUSTIC SYSTEM Instruction manual...
-
Page 2: Important Safeguards
Description The set of acoustic system includes: - acoustic system - metal grill 2 pcs - speaker wire 2 m - screw 8 pcs - clip 8 pcs (x 8) (x 8) Important safeguards The owner s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped. -
Page 3: Mounting The Speakers
Make sure the wire of the negative pole terminal is disconnected from accumulator while connecting the speaker terminals. Turn on the various components and slowly advance the volume. Remember to check and re-check all connections to insure proper installation and use. Do not continuously use the speaker system beyond the nominal power handling capacity. - Page 4 Securing the speakers Position the speaker into the mounting hole and re-confirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip.
- Page 5 If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position Bad power connections...
-
Page 6: Specification
Specification Loudspeaker one woofer: 13 cm injection cone tweeter: 30 mm peidome Magnet main: ferrite 10 Oz magnet Peak output power 140 W Rated output power 70 W Impedance 4 hm Sensitivity 91 dB Frequency response 80-20000 Hz Dimensions 155 x 70 mm Net / Gross weight 0.65 kg / 1.6 kg Gift box dimension (L x H x W) - Page 7 (x 8) ( 8)
- Page 8 =114 , Ø =5...
- Page 11 : 13 : 30 (311 ) 80-20000 155 70 0,65 / 1,6...
