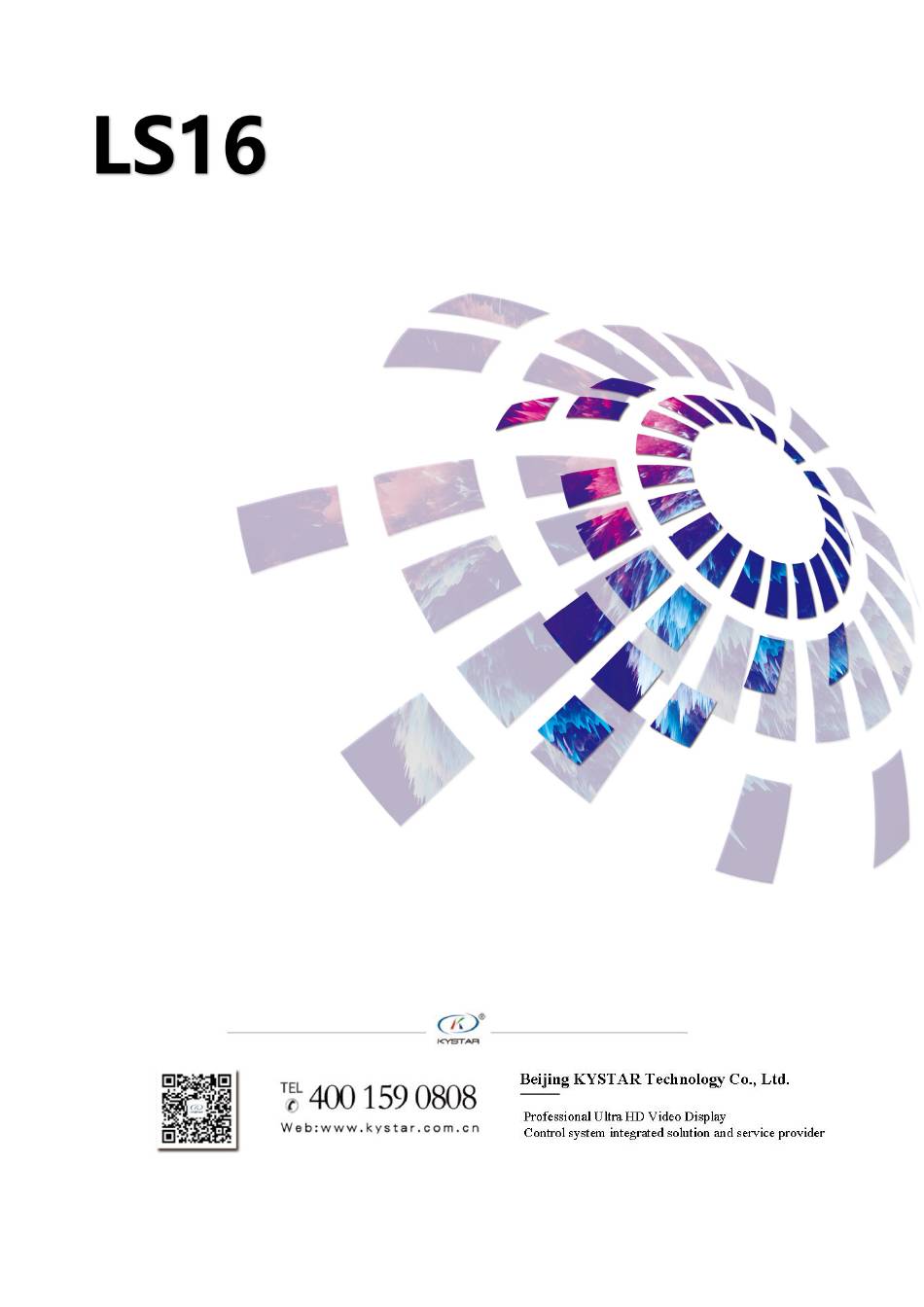

- Page 1 Sixteen port 2 in 1 controller LS16 Version: V2.3 Release Date: November 2021 使用说明书...
- Page 2 Version record version number Change details release time V1.0 First edition released 2019.08.18 V2.0 Modify device interface description information 2020.12.09 Modify device picture Modify device function description Adjusting the K-HDR support source Modify equipment debugging steps Unified arrangement of 16 network ports layout, V2.1 Modify K-HDR function description 2021.10.15...
- Page 3 Summary Ls16 is a splice control processor designed for live performance LED large screen. It adopts the industry's top design technology and conforms to international and industry standards. It's industry support 4K@60Hz Input 2U device. Support k-hdr, make ordinary SDR material present HDR display effect, solve the pain of less HDR material.
-
Page 4: Table Of Contents
catalog I. PRODUCT DISCUSSIONS ........................1 II、PRODUCT CHARACTERISTICS ......................2 III. TECHNICAL INDICATORS ......................3 IV、WORKING SKETCH ......................... 4 V. PANEL STRUCTURE ..........................5 ............................5 RONT PANEL ............................. 6 BACK PANEL VI.WIRING AND INSTALLATION ......................7 ..........................7 IRING DIAGRAM .......................... -
Page 5: Product Discussions
LS16 manual www.kystar.com.cn I. Product Discussions With the rapid development and application demand of LED display industry, various control requirements for large screen control system emerge as the times require. However, due to the limitations of the large screen control system in image processing, picture control and signal format conversion, there are some weak links in the large screen control system of LED, which can not meet the needs of users. -
Page 6: Product Characteristics
LS16 manual www.kystar.com.cn II、Product characteristics The single network port has a load of 650000 pixels, the maximum load of the whole machine is 9600000 pixels, the maximum width can reach 16000 points, and the maximum height can reach 8000 points. The single machine has 16 network port output A total of 8 input signals including dvix2, hdmix3, dpx2 and sdix1 can be accessed, among ... -
Page 7: Technical Indicators
LS16 manual www.kystar.com.cn III. Technical Indicators The 16 network port two-in-one controller adopts the latest patented video processing technology, and has the video conversion capability of any format input and corresponding format output. Signals including DVI, HDMI, DP and SDI can be processed and enhanced to meet customer application requirements. -
Page 8: Working Sketch
LS16 manual www.kystar.com.cn IV、Working sketch Desktop computer laptop camera... -
Page 9: Panel Structure
LS16 manual www.kystar.com.cn V. Panel Structure Front panel 1. LCD---------------Text display screen, displaying menus, parameters and other information 2. Knob--------------------------------------Knob increase and decrease key, press to confirm 3. OK -----------------------------------------------------------------------Enter 4. MENU----------------------------------------------------------------------menu 5. MAIN-1------------------------------------------------------------------Main screen-1 6. MAIN-2------------------------------------------------------------------Main screen-2 7. PIP-1-----------------------------------------Picture-in-Picture-1; open window button 8. -
Page 10: Back Panel
LS16 manual www.kystar.com.cn back panel 1. POWER---------------------------------------------------------------------Device switch 2. SDI-------------------------------------------------SDI HD signal input port; ring exit 3. HDMI1-HDMI3----------------------------------------------------------HDMI Input channel 4. DP1 and DP2------------------------------------------------------------DP input channel, 5. DVI MONITOR-------------------------------------------------------------Monitoring port 6. DVI1 and DVI2----------------------------------------------------------DVI Input channel 7. NET--------------------------------------------------------------------RJ45 Network port 8. -
Page 11: Vi.wiring And Installation
3. Wiring as shown in the figure, use a USB debugging cable to connect the USB port of the computer to the serial port of LS16; 4. Make sure the wiring is correct and power on and turn on the 2-in-1 controller. -
Page 12: Equipment Commissioning
VIII Equipment commissioning LS16 has 16 Ethernet ports output, and the 16 network ports can be arranged arbitrarily. The load of the whole machine is determined by the device splice mode and output resolution, and that more then the LED screen resolution. For example, cross splice, the output resolution is 1920*1080, then the load of the whole machine is 3840*2160 1.Video processor debugging... - Page 13 LS16 manual www.kystar.com.cn （3）window layout The screen layout function module contains eight fixed layout templates. The layout of the layers opened through the screen layout is fixed. Layout 1: open a single layer, one layer covers the entire screen. (Or keep press the MAIN-1 button open window) Layout 2: Open two layers, the layer arrangement is as shown in the figure below.（Or keep...
- Page 14 LS16 hardware panel or the software video processor interface. he following shows the debugging interface of KYSTAR control system, without in-depth main control system debugging explanation.
- Page 15 LS16 manual www.kystar.com.cn （3）Receiving card parameter interface First select the module manufacturer: select the corresponding module manufacturer; the specifications of the modules, the driver chip and the decoding method should be consistent Set receiving card Card Load:width and height of the Receiving card...
- Page 16 LS16 manual www.kystar.com.cn 1、Increase the data clock: the frequency is not affected by other parameters, which is the first condition; if there is a blurry screen, reduce it one by one; try to adjust the clock phase if it is slightly blurred;...
- Page 17 LS16 manual www.kystar.com.cn VX Control menu language Chinese settings ENGLISH Factory settings Cancel Mode single delete deletion delete continuously Multi-machine Close cascade Open signal loss Close Advanced menu concealment Open Communication Com set settings IP set select input source K-HDR...
- Page 18 192.168.0.100; the default subnet mask is 255.255.255.0; the default gateway is 192.168.0.254. 7．K-HDR K-HDR is a unique technology of Kystar , which can improve the current image display and achieve the effect of HDR. Input source selection: DVI1, DP1, HDMI3, other input sources do not support K-HDR.
-
Page 19: Frequently Asked Questions
LS16 manual www.kystar.com.cn IX、frequently asked questions Q1：DVI、HDMI、DP、SDI Port definition。 A： DVI: Digital (high-definition) video signal is an interface standard introduced by Silicon Image, Intel (Intel) and other companies in 1999 to form the DDWG (Digital Display Working Group). It has been carried out in terms of speed, resolution and HDCP protocol. Optimize well. The signal source is generally a desktop computer, a notebook, etc.;... - Page 20 LS16 manual www.kystar.com.cn ② The USB cable driver is not installed in the computer or the USB driver is damaged; ③ The serial cable is not connected well or the cable is damaged; If the above suggestions do not finally solve your problem, please contact our company's customer service staff in time.
