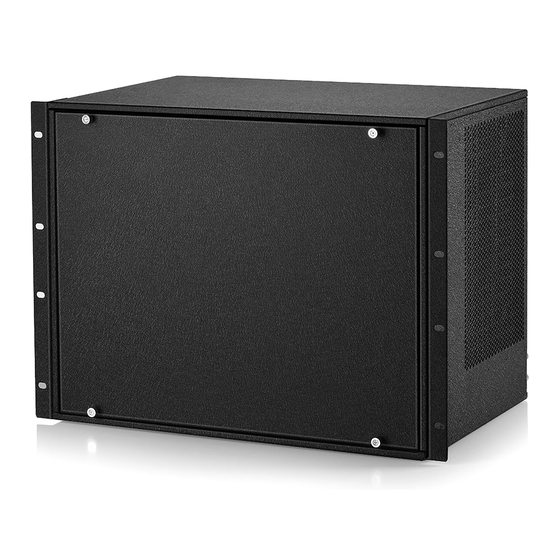

- Page 1 Multi-picture stitching processor KS9000 user's manual Beijing Kystar Technology Co., Ltd.
- Page 2 Safety Precautions Danger ● There is high voltage in the equipment. Non-professional maintenance personnel must not open the back cover to avoid danger. Warning ● This equipment is not waterproof, please do waterproof treatment in humid environment; ● The device must not be near fire or high temperature environment; ●...
-
Page 3: Table Of Contents
Directory 1、Introduction ......................2 2、Hardware introduction ..................... 3 1. Introduction of the rear panel ................3 2. Connection diagram .................... 4 3、Software installation ....................5 4、Device connection ....................6 1.Open the Software ....................6 5、Software settings ....................10 1.Output settings ....................10 2.Establishment of paintings ................. -
Page 5: 1、Introduction
KS9000 user manual www.kystar.com.cn Introduction This product is the industry's first truly multi-window splicer. It is a professional video processing and control device. It is a splicing controller specially designed for large-screen, projection, LCD and other devices. The multi-screen mosaic processor developed by our company adopts FPGA pure hardware architecture without any operating system. -
Page 6: 2、Hardware Introduction
KS9000 user manual www.kystar.com.cn 2.Hardware introduction 1. Introduction of the rear panel ① ② ③ ④ 1. Input board: It can support DVI, VGA, CVBS, HDMI, SDI, IP stream, 4K and other signal inputs, and can expand up to 216 channels. -
Page 7: 3、Software Installation
KS9000 user manual www.kystar.com.cn 3.Software Installation... -
Page 8: 4、Device Connection
KS9000 user manual www.kystar.com.cn Insert the CD-ROM included in the product's junction box into the CD-ROM drive. You can view the contents of the CD-ROM in the file manager. Double-click to enter the following installation interface: After selecting the installation language, click OK to enter the installation wizard... -
Page 9: Open The Software
KS9000 user manual www.kystar.com.cn 1.open the software Double-click the software shortcut on the desktop to open the software and enter the software startup page, as shown in the figure below: Just click OK without password for the first time. If you set a password, you need to enter the password correctly to enter the software. - Page 10 KS9000 user manual www.kystar.com.cn Click "Connect Device", the "Communication Settings" window pops up, as shown in the figure below: This software can choose NET or COM two connection methods, choose different connection methods to prepare different work. (1) Select NET connection I.
- Page 11 KS9000 user manual www.kystar.com.cn Note: The IP address is any value other than the IP of the network segment 0. If you need to change the IP segment, you need to change it in the software settings. III.Establish communication During software communication, select "NET connection" and directly click "OK".
-
Page 12: 5、Software Settings
KS9000 user manual www.kystar.com.cn Under normal circumstances, the software will automatically recognize the COM port, users do not need to set it, just click OK. However, in some cases, the PC may have multiple COM ports at work, causing software recognition errors. At this time, you need to select the COM port (please try in order). - Page 13 KS9000 user manual www.kystar.com.cn The "screen resolution" is the maximum resolution that can be output by each output port, and is generally greater than or equal to the resolution of each sending card or each display. The "row" and "column" can be set as required. The "1920" above the layout and the "1080"...
-
Page 14: Establishment Of Paintings
KS9000 user manual www.kystar.com.cn P: "Synchronize all screen brightness" This option is marked with a check mark to indicate that the modified color value is for all output ports. Remove the check mark to adjust the color for a single output port. - Page 15 KS9000 user manual www.kystar.com.cn With the above settings, the entire large screen has been stitched together. The gray area represents the entire large screen. How to display it on the large screen requires the creation of a picture. Here is an example of how to create a picture with 2 rows and 2 examples.
- Page 16 KS9000 user manual www.kystar.com.cn classification Function description Archive the currently set parameters, a total of 12 gears Save settings Sticky Bring the current window to the top Set at the end Bring the current window to the bottom Attributes Set the properties of the current window Panorama →...
- Page 17 KS9000 user manual www.kystar.com.cn The property settings mainly include the following three items: signal source selection, picture parameters, and partial display. Signal source selection is to select the desired signal source for the current window, or you can directly click the signal source in the signal source column on the left to switch the signal.
-
Page 18: Mode Saving And Recall
KS9000 user manual www.kystar.com.cn Mode saving and recall I.Model save Click the save mode in the main function area, and the save mode setting window pops up, as shown in the figure below: In this interface, you can change the mode ID according to your needs, that is, the mode you want to save to, or you can change the mode name according to your needs. -
Page 19: 6、Special Function
KS9000 user manual www.kystar.com.cn P: Right-click the user mode to modify the name of this mode, which is more intimate and convenient. 6、Special function OSD refers to the graphic subtitle overlay system. This software can import graphic subtitles to the processor and set the corresponding attributes of the graphic subtitles. -
Page 20: Insert Text
KS9000 user manual www.kystar.com.cn Select the picture you want to import (BMP format, 24-bit color), and click Open to see the progress bar of image loading: After loading, you can see the pictures you added in the software. You can load up to two files, and the system numbers the loaded files in order (1 or 2). - Page 21 KS9000 user manual www.kystar.com.cn Drag the left mouse button to change the position of the graphic on the screen. Right-click the graphic to see: Click Save Current Picture to save the current picture to the system. Click Replace picture to reload other pictures.
-
Page 22: 7、Vga Correction
KS9000 user manual www.kystar.com.cn 7、VGA correction VGA signal drift often occurs in engineering. For this situation, you can use the VGA correction function: Right-click on the selected VGA source and click on the VGA correction option, you can see: Click the upper, lower, left and right number boxes to adjust the edge of the VGA image. -
Page 23: 8、Selection Of Cv Signals,Character Overlay For Signals
KS9000 user manual www.kystar.com.cn 8、 Selection of CV signals, character overlay for signals After docking DA15 to 8BNC, the choice of single-window CV signals has become diverse, as follows: Double-click S3-1 to select the current four-channel CV signals to be displayed in a... -
Page 24: 9、Frequently Asked Questions
KS9000 user manual www.kystar.com.cn Double-click CV1 to select only CV1 to display and fill the current window: No matter which signal we choose, the signal has a character identifier. This effect can be achieved by right-clicking on a single signal and selecting character overlay:... - Page 25 KS9000 user manual www.kystar.com.cn Q1：DVI、HDMI、VGA、CV、USB Port definition A： DVI： Digital (high-definition) video signal is an interface standard introduced by Silicon Image, Intel and other companies in DDWG (Digital Display Working Group) in 1999. It has done a good job in terms of speed, definition and HDCP protocol.
- Page 26 KS9000 user manual www.kystar.com.cn Q4：What is the administrator password in the PC software settings? A: No password, just click OK to enter Q5：What are the possible reasons why the processor software shows that the serial port is not connected? What is the connection normal flag? A: The trial computer needs to connect its command transmission line to control the video processor.
-
Page 27: Attachment：settings For Graphics Card Copy Mode And Extended Mode
KS9000 user manual www.kystar.com.cn Attachment：Settings for graphics card copy mode and extended mode 1、AMD graphic card（XP system） Right-click on a blank space on the desktop → Properties → Settings → Advanced → Enter the graphics driver control panel → Monitor management → Right-click →... - Page 28 KS9000 user manual www.kystar.com.cn 2、NVIDA graphic card（XP system） Right-click on the blank space on the desktop → Properties → Settings → Advanced → Enter the graphics driver control panel → Set “Multiple Monitors” → Select Copy / Extended Mode.
-
Page 29: 3、Win7、Win8 System
KS9000 user manual www.kystar.com.cn 3、Win7、Win8 system Right click on the computer desktop-screen resolution-multiple monitors-check the copy / horizontal pan mode. Note: Please make sure that the graphics card driver is installed properly. The graphics card driver can be downloaded from the official website of the graphics card...
