Kystar U6 Manual

Multi-windowsplicing processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

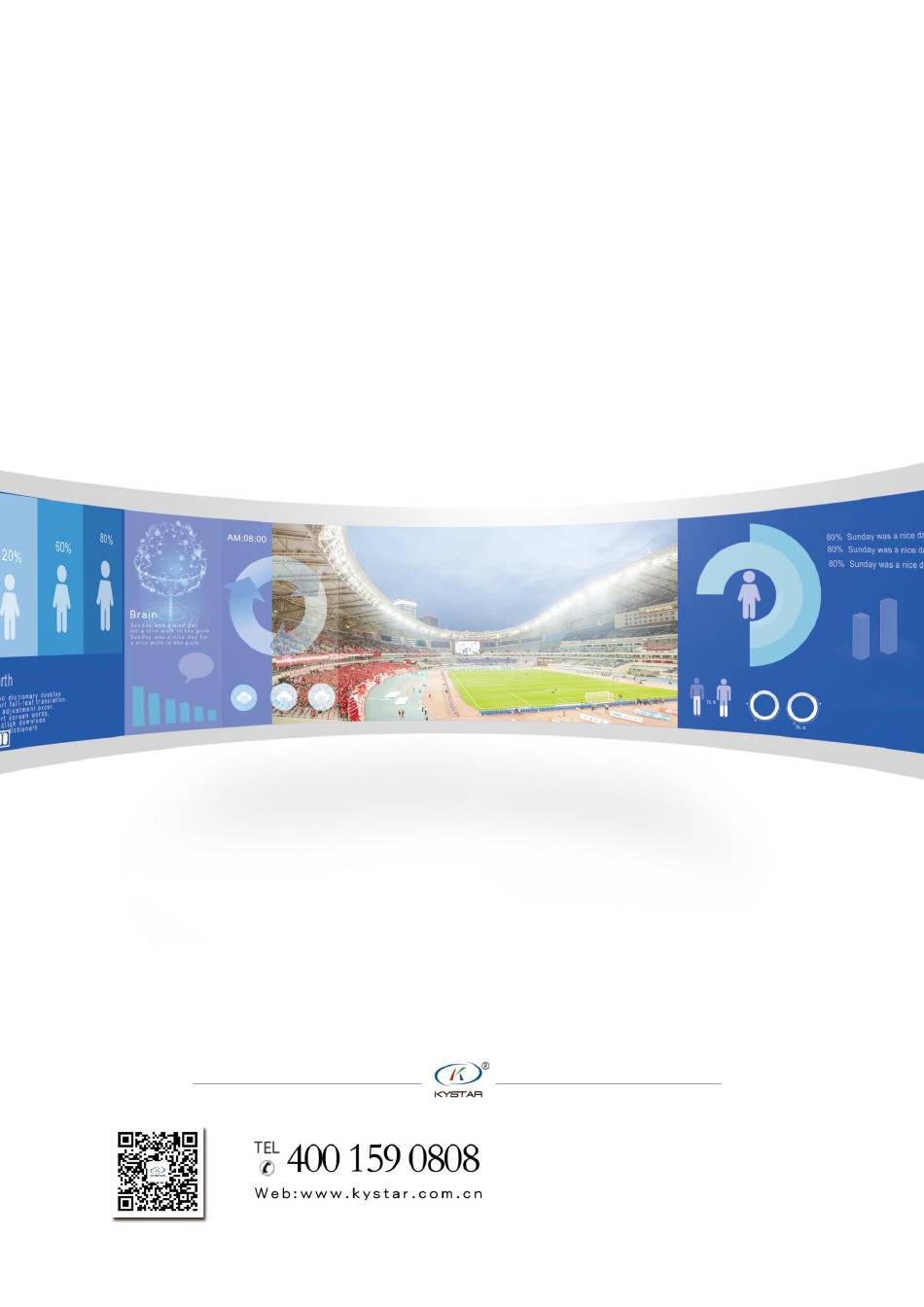

U6
Multi-window splicing processor
Version: v3.1
Release date: February 2022
Manual
Beijing KYSTAR Technology Co.,LTD
Beijing KYSTAR Technology Co.,LTD
Professional Ultra HD Video Display
Control integrated solution providers and operational
Control system integrated solution and service provider
Professional ultra hd video display,
service providers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U6 and is the answer not in the manual?

Questions and answers

Related Manuals for Kystar U6

Summary of Contents for Kystar U6

  • Page 1 Multi-window splicing processor Version: v3.1 Release date: February 2022 Manual Beijing KYSTAR Technology Co.,LTD Beijing KYSTAR Technology Co.,LTD Professional ultra hd video display, Professional Ultra HD Video Display Control integrated solution providers and operational Control system integrated solution and service provider...
  • Page 2 Multi-Image Splicing Processor User Manual Statement Thank you for choosing our products. All rights of the manual are reserved by the company and no copy, delivery, distribution or storage of any form of the content is allowed without written permission from the company. The company reserves the right of modifications and improvements of any product function described in the document without prior notice.
  • Page 3 Multi-Image Splicing Processor User Manual SAFETY PRECAUTIONS For your safety, please read this section carefully. Power Power supply of the device for normal operation is 100-200V AC. Please make sure that the product is operated within the voltage range. High voltage High voltage devices are contained.

  • Page 4: Table Of Contents

    Multi-Image Splicing Processor User Manual Prevent liquid or conductive fragments getting into the chassis Liquid or metal fragments should be stopped from getting into the case. If so, the device should be powered off immediately and power supply can only be allowed after clearance of foreign bodies. Table of Contents 1.

  • Page 5: Product Introduction

    Multi-Image Splicing Processor 1. Product Introduction Multi-screen splicing processor is a high-end video processing equipment developed and produced by our company for LCD large screen display, performance and rental, conference room, studio and other markets.The product enjoys the following features: 1.

  • Page 6: Hardware Introduction

    Multi-Image Splicing Processor 2. Hardware Introduction 2.1 Front Panel POWER: AC 220V POWER switch; ON indicates that the power supply is ON, and OFF indicates that the power supply is OFF. LCD color screen: information display; Displays device and debugging information. ADJUST: ADJUST knob;...
  • Page 7 Multi-Image Splicing Processor FUNC: Common function buttons; Click to enter the interface of common functions. MODE:Mode quick call key; Use this key to call mode quickly. S5-S8 ： Digital input button; Input sources are displayed under the main menu, and numbers 6-9 are displayed on the parameter input interface.

  • Page 8: Device Debugging

    Multi-Image Splicing Processor 3. Device Debugging 3.1 Device Connection Device connection could be divided into three parts: power connection, signal connection and control connection (used for software debugging). Power connection: device power supply. Connection method: connect power cord to power plug. Signal connection: the method transferring signal from signal source to LED large screen.

  • Page 9: Debugging Steps

    Multi-Image Splicing Processor 3.2 Debugging Steps Step 1：Click "MENU" to enter the main MENU interface, select "Device Mode", and select the stitching mode of the device: 2X2, 2X3 and other modes. Device Mode Copy Output Horizontal Splicing Vertical Splicing Note: All output displays are Cross Splicing the same.
  • Page 10 Multi-Image Splicing Processor Image 1 Horizontal Position: 0 Image 1 Vertical Position: 0 Image 2 Horizontal Size: 1920 Image 3 Vertical Size: 1080 Signal detection: Normal ×1 ×10 ×100 Sourceresolution:1920*1080 elect by Finger key Then select the "WIN" button in front to enter the screen switching screen. Select the screen to switch and click the signal source button on the front panel Step 4: Click "MENU"...
  • Page 11 Multi-Image Splicing Processor example, "×100" means that the number of the knob is increased by 100 each time. (2) Input through the number button on the front panel. For example, the number below S1 indicates 1. Step 5: Click "MENU" to return to the main MENU interface, click "FUNC" button to select "Local display", enter the local display setting interface, set the size and position of each signal source.

  • Page 12: Function Key

    Multi-Image Splicing Processor Equipment debugging, late use according to different scenarios, the saved data call out. There are two types of data calls: (1) Call by shortcut key, just click "M1-M4" on the front panel. This method is convenient to use when there are few mode scenes.
  • Page 13 Multi-Image Splicing Processor interface, and the current signal source of the three screens will be displayed respectively. To switch the signal source, rotate the knob to select the screen, and then click the button "S1-S8" on the front panel to switch FUNC: function button.
  • Page 14 Multi-Image Splicing Processor applications. This product has two ways for VGA correction, one is automatic correction, the other is manual correction. 7. IP Settings The IP address of the device is used for software debugging. 8. Partial display Sets the local display of relevant data. 9.

  • Page 15: Advanced Menu

    Multi-Image Splicing Processor 3.4 Advanced Menu 1. Chinese /ENG Set the device language to English or Chinese. 2. Output resolution The resolution of a single output port can be customized, and the frame rate can be 30Hz, 50Hz, or 60Hz. The default output resolution is 1920 x 1080@60Hz. 3.

  • Page 16: Technical Parameters

    Multi-Image Splicing Processor 4. Technical Parameters Input port Type Quantity specification The maximum resolution is 1920 x 1200@60Hz, which is backward compatible DVI-U Support the DVI/HDMI/VGA/CVBS Compatible with HDMI1.3 or later, EDID 1.3 Output port Type Quantity specification Supports common output resolutions ranging from 1024 x 768@60Hz to HDMI 1920 x 1080@60Hz Supports 60Hz/50Hz/30Hz output frame rate...
  • Page 17 Multi-Image Splicing Processor technology. It’s specialized digital interface and can send audio and video signal at the same time with the quickest data transmission of 5Gbps. Its signal source is usually camera, laptop and information publication system. VGA: Analog Video Signal (Video Graphics Array), a video transmission standard introduced together by IBM in 1987 with PS/2 at the same time.
  • Page 18 Multi-Image Splicing Processor 4. Damage of COM drive of the board or serial port. If suggestions above fail to solve your problems at last, please contact with our customer service in time. We will assist you to solve your problems as soon as possible.
