Summary of Contents for Monoprice MUA-46

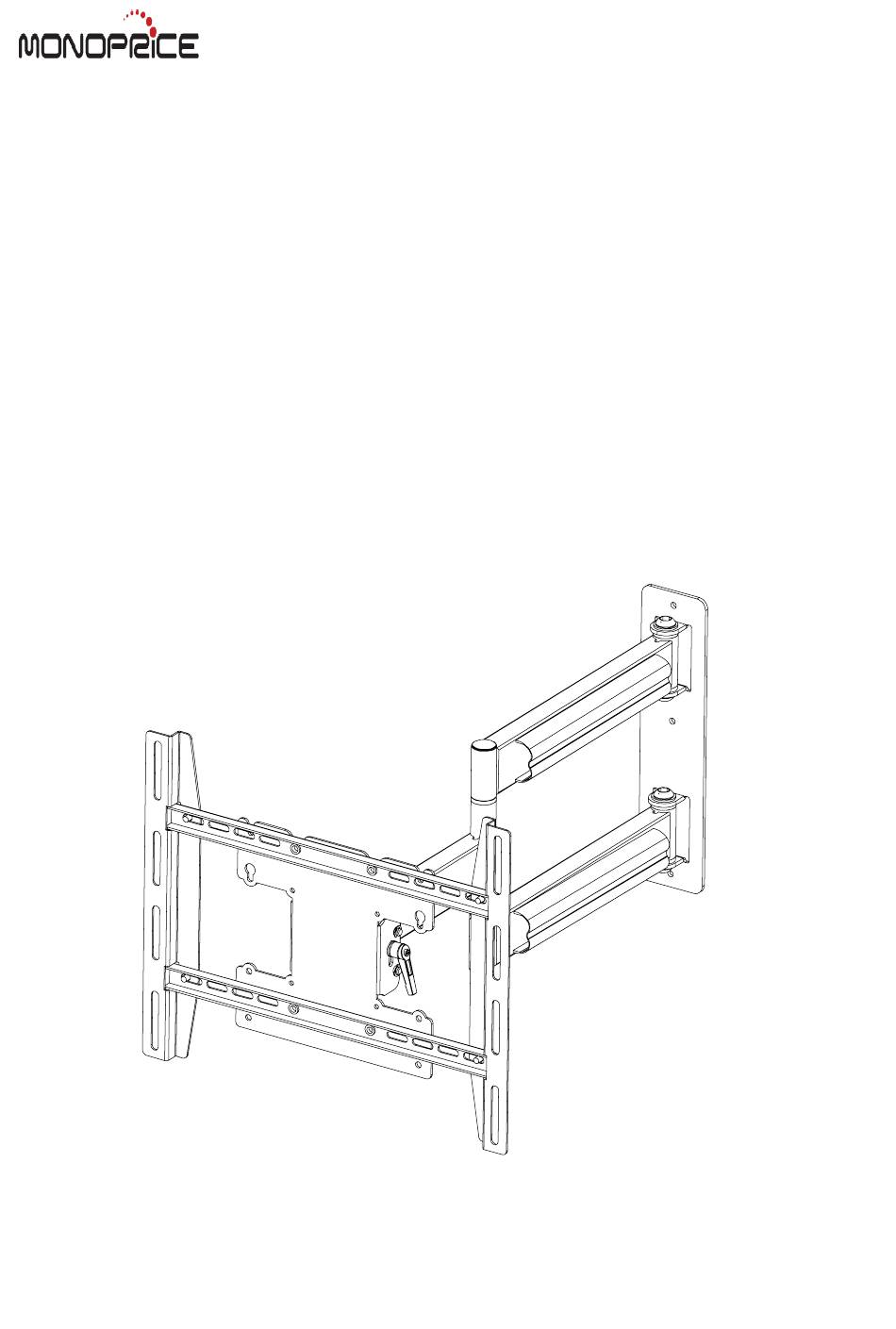

- Page 1 INSTALLATION GUIDE Flat Panel Arm Mount MUA-46 Support 32" to 46" Screens Max Load Capacity: 125 lbs (57 kg) VESA 300x400 compatible...
- Page 2 WARNING • Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before attempting to begin your installation. • This product should only be installed by someone who has a basic knowledge of buiding construction,installations and fully understands these instructions.
- Page 3 Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List M6x16(x4) M6x30(x4) M8x16(x4) M8x35(x4) ￠19x8.2x￠19.6(x4) philips pan head screw philips pan head screw philips pan head screw philips pan head screw spacer M6x60(x3)
- Page 4 Installation to Single Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
- Page 5 Installation to Solid Concrete or Cinder Block WARNING • When installing the wall mount to cinder block, verify that you have a minimum of 1-3/8" of actual solid concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 6 Mounting the Assembly Adapter Plate to screen Modify the Adapter Plate Adaptor Modify the Assembled Adapter Plate Slide the adapter brackets into Assembled adapter plate slightly. Place the Assembled Adapter Plate on the back of the display with one Adapter Bracket aligned with a set of vertical mounting holes.Then,slide the other Adapter Bracket in or out until it aligns with the second set of vertical mounting holes.The Adapter should be horizontally centered on the back of the flat panel display.
- Page 7 Attach Assembly Adapter Plate to Assembly Arm top screw 1. Insert two M8x15mm screw bolt and two metal washers into swivel box on Assembly Adapter Plate as above shown. Leave approx. 1/4" of exposed thread. 3. Once in position, attach the bottom 2.
