Triple Sided Ceiling TV Mount Bracket
for TVs 32" ~ 65" up to 66 lbs. per Screen
Installation Guide
34195
P/N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34195 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monoprice 34195

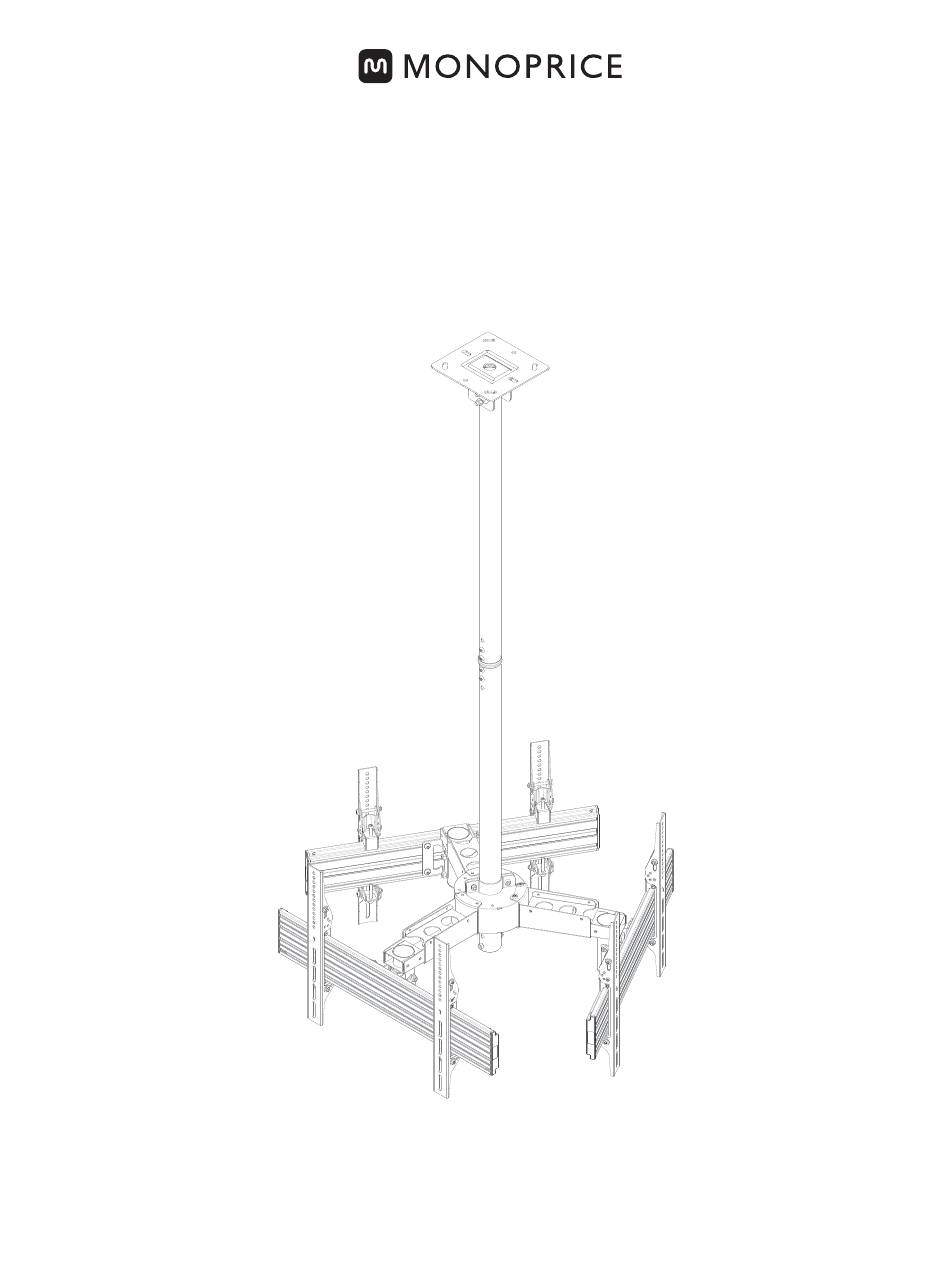

  • Page 1 Triple Sided Ceiling TV Mount Bracket for TVs 32" ~ 65" up to 66 lbs. per Screen Installation Guide 34195...
  • Page 2 INTRODUCTION This Triple Sided Ceiling TV Mount Bracket safely supports three displays from a single pole or column drop, while maintaining the installer-friendly features of a single ceiling mount. It includes the hardware needed for mounting the displays and all other hardware, except ceiling bolts.
  • Page 3: Safety Warnings And Guidelines

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via...
  • Page 4 Product Weight: 28kg Dimensions (mm) 630(Max)
  • Page 5: Parts List

    P/N 34195 P/N 34196 Parts List B5 B6 4/5/6mm M8X12 6X 8.2X1.5 M5X8 M6X8 M5X15 M6X15 M8X15 6X 6.2X1.5 (Each) 6X 8.2X1.5 Lag bolt Anchor M8x65 M6x80 M8X70 M8X12...
  • Page 6: Installation

    Incorrect usage, unsecured mounting surfaces, and/or improper installation can cause serious Installation injury or death. Consult a licensed contractor or structural engineer prior to installation. Brick or Concrete Wood Repeat this step if additional extensions are needed. On both sides Do not remove this screw!
  • Page 7 This piece adjusts to different lengths 6 mm 5 mm Keep the position fixed and aligned to the center...
  • Page 8 5 mm A1+A4/A2+A4/A3 The brackets should be centered and as close as possible to the display Tilt 0°...
  • Page 9 Tilt 10° Tilt 5° Single screen 22-d Tilt 15°...
  • Page 10 Cables Cable ties...
