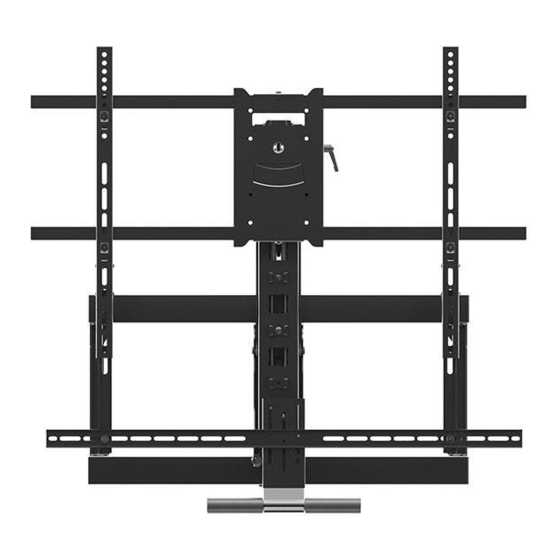

Above Fireplace Pull-Down Full-Motion Articulating
TV Wall Mount with Soundbar Mount- For TVs 55in to 80in,
Max Weight 132lbs, VESA® Patterns Up to 800x500,
Rotating , Height Adjustable
Installation Guide
39306
P/N

Advertisement

loading
Need help?

Need help?

Do you have a question about the 39306 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monoprice 39306

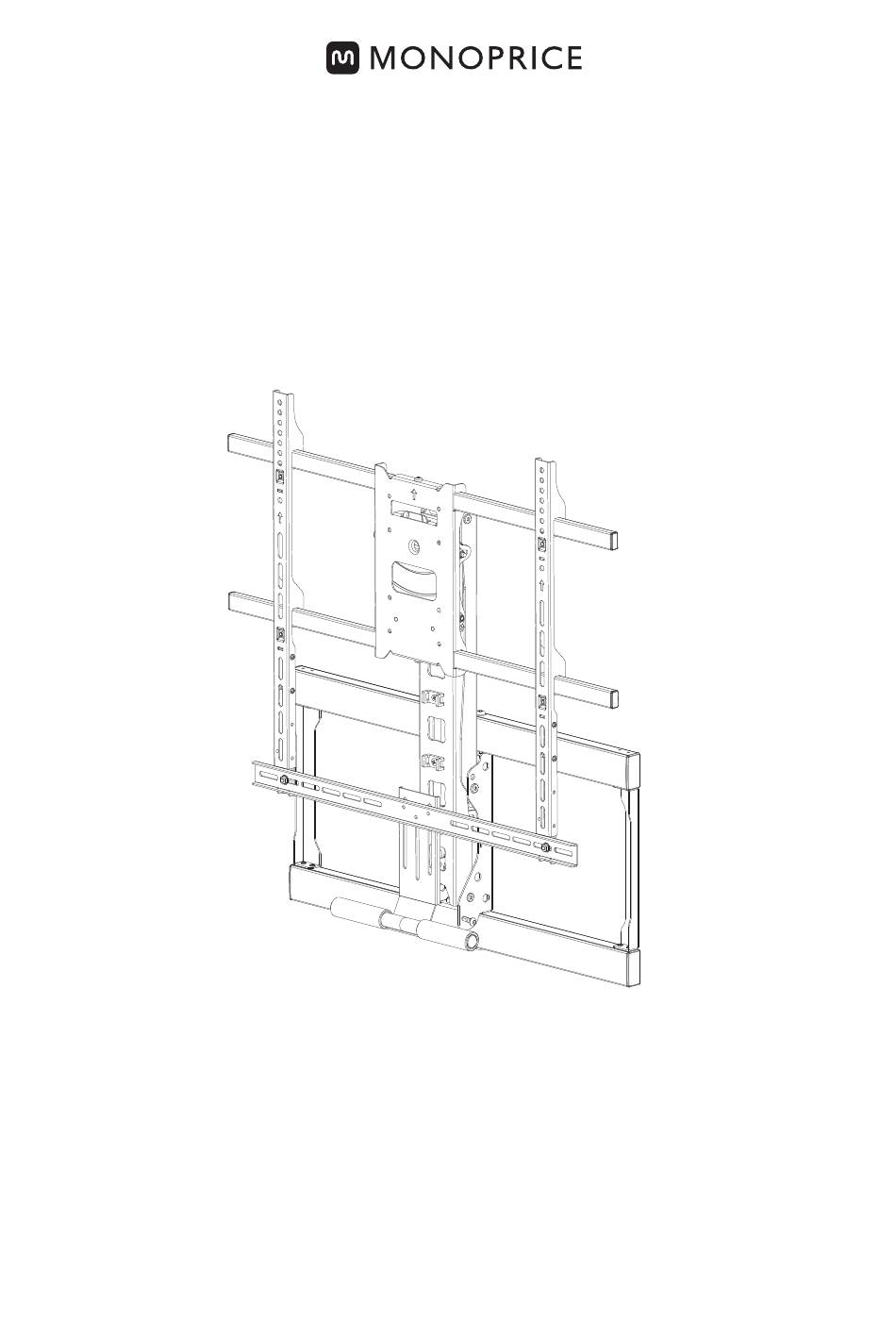

  • Page 1 Above Fireplace Pull-Down Full-Motion Articulating TV Wall Mount with Soundbar Mount- For TVs 55in to 80in, Max Weight 132lbs, VESA® Patterns Up to 800x500, Rotating , Height Adjustable Installation Guide 39306...
  • Page 2: Included Hardware

    INCLUDED HARDWARE A: M5 x 15 mm B: M5 x 30 mm C: M6 x 15 mm D: M6 x30 mm E: M8 x 20 mm F: M8 x 35 mm G: M8 x 50 mm H: M5 / M6 I: 5 mm J: 13 mm K: M8 x 70mm...
  • Page 3: Required Tools

    • Inspect the installation at least once every three months to ensure that it is secure and safe to use. • Please take an inventory of the package contents to ensure you have all the items shown in the Parts List. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement.
  • Page 4 FEATURES Mount your television conveniently above your fireplace using this Mount. It is capable of supporting televisions with VESA® patterns from 100x100 and 800x500 and weighing 55-132 lbs (25-60kg). The mount allows you to keep your TV safely up and out of the way when not in use, then it can be pulled down to eye level for comfortable viewing.
  • Page 5: Installation

    4. This mount is intended for flat screen televisions (LCD, LED, Plasma) only. The mounted television should be between 55 ~ 80" and weigh between 55~132 lbs. 5. The vertical space above the mantel must be greater than the height of the wallboard .The required vertical space depends on how far the mantel extends out from the wall.
  • Page 6 To determine the height distance from the , reference step 5 on page 5. Be sure to drill into the center of the wood stud.
  • Page 7 To determine the height distance from the mantel, reference step 5 on page 5. Insert Concrete Anchor (M)
  • Page 9 BRICK CONCRETE WOOD...
  • Page 10 Lock the arm A - G I - J...
  • Page 11 W/O Soundbar With Soundbar...
  • Page 12 Please adjust the Handle distance to the height of the sound...
  • Page 14 Release 90° Keep the TV’s height in this angle. Adjusting the force value in this state is the easiest. Adjustable the bracket’s constant force “ + ” :Increase the constant force “ - ” :Reduce the constant force Attention: The weight of the TV set in the weighing range A: The TV sets can stay at any height.
  • Page 15 B: The TV sets up Turn to “ ” Adjust until free hovering C: The TV sets down...
  • Page 16 Turn to “ ” Adjust until free hovering Height adjustment 9.1" Level adjustment ±5°...
  • Page 17 (SIDE VIEW) Tilt adjustment -5 ~ +10° (TOP VIEW) Swivel ±30°...
  • Page 18 wire cable Cable ties Cable Ties Pull in the cover plates 4.7(Min) 26.8 Units: Inches Ø3.5 Ø0.3 Ø0.3 Down 20.1(Max) ±5° 7.9(Min)~32.7(Max) 33.9(Max) Down...
