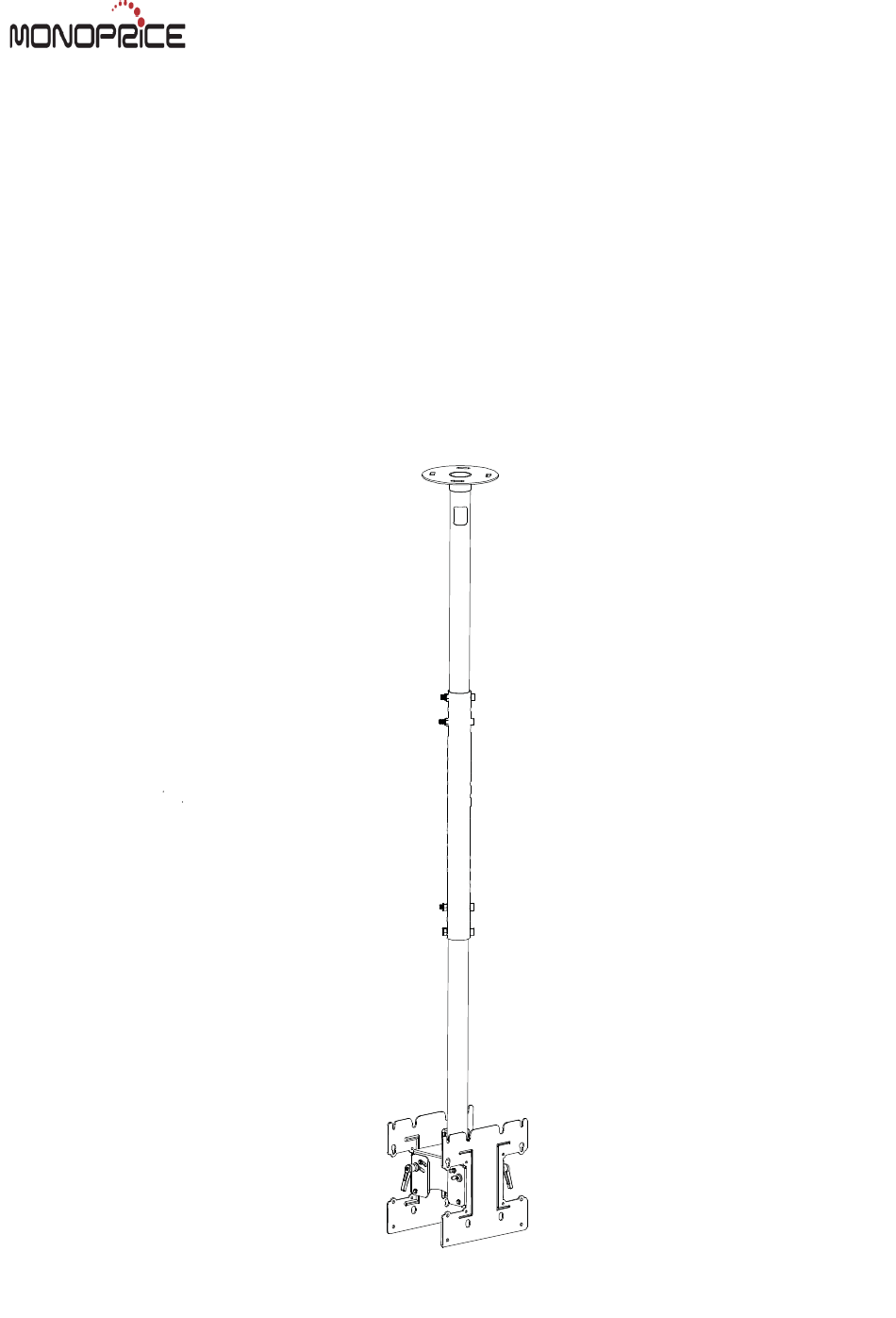

- Page 1 INSTALLATION GUIDE Ceiling TV Mount MHP-40 Max Load Capacity: 80 lbs (36kg)
- Page 2 Note: Read entire instruction sheet before you start installation and assembly. WARNING ‡ Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before attempting to begin your installation. ‡ This product should only be installed by someone who has a basic knowledge of buiding construction,in stallations and fully understands these instructions.
- Page 3 Before you b egin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List Description allen wrench philips pan head screw M4x10 philips pan head screw M4x20 philips pan head screw M5x15 philips pan head screw M5x30...
- Page 4 Installation to Wood Joist Finished Ceilings, Exposed Wood Joists, or Wood Beam Ceilings Drill four 1/4" (6 mm) dia. holes to a minimum depth of 1.57" (40 mm). Attach ceiling plate with four hex bolt screws M8x50 ( L ) as shown using 1/2"...
- Page 5 Installation to Concrete Ceilings Drill four 3/8" (10 mm) dia. holes to a minimum depth of 1.57" (40 mm). Attach ceiling plate using four concrete anchors ( K ) and M8x50 hex bolt screws ( L ) as shown in Illustration A and 1, 2, and 3 (below).
- Page 6 Installation of Extension Column Attach threaded end of adjuster tube (AA) to threaded fitting in ceiling plate . Tighten securely aligning slot in end of adjuster tube (AA ) with one of the holes in the side of threaded fitting. Insert and tighten one M4 x 3 mm hexagon fillister screw ( M ) to lock adjuster tube (AA) to threaded fitting.
- Page 7 ® Attaching display mounting plate to a Screen with a VESA Mounting Pattern Choose hole pattern as shown in detail 3 for VESA mounting pattern. Begin with the shortest length screw, hand thread through adapter plate into screen as shown in detail 4. Screw must make at least three full turns into the mounting hole and fit snug into place.
- Page 8 Insert two for 200x200 & 200x100 VESA patterns appro- priate sized bolts into the top two mounting holes on the back of your display as shown in fig.1 Leave approx. 1/4" of exposed thread. top screw Lift the display and hook it on to the display mount- ing plate by lowering the exposed portion of the top screws down the notches on the top edge of the plate for a 200x200 pattern or into the key hole.
