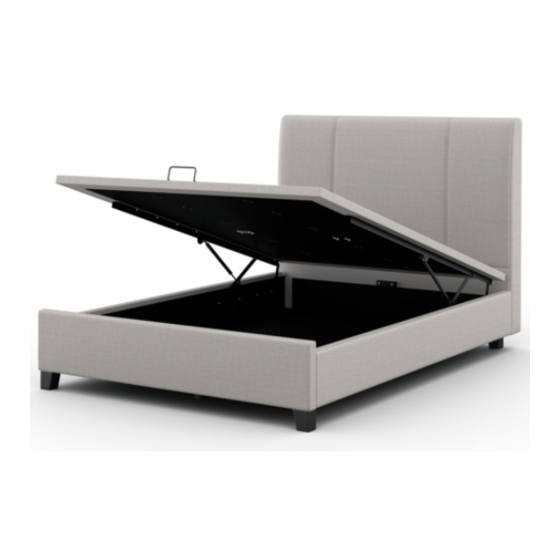

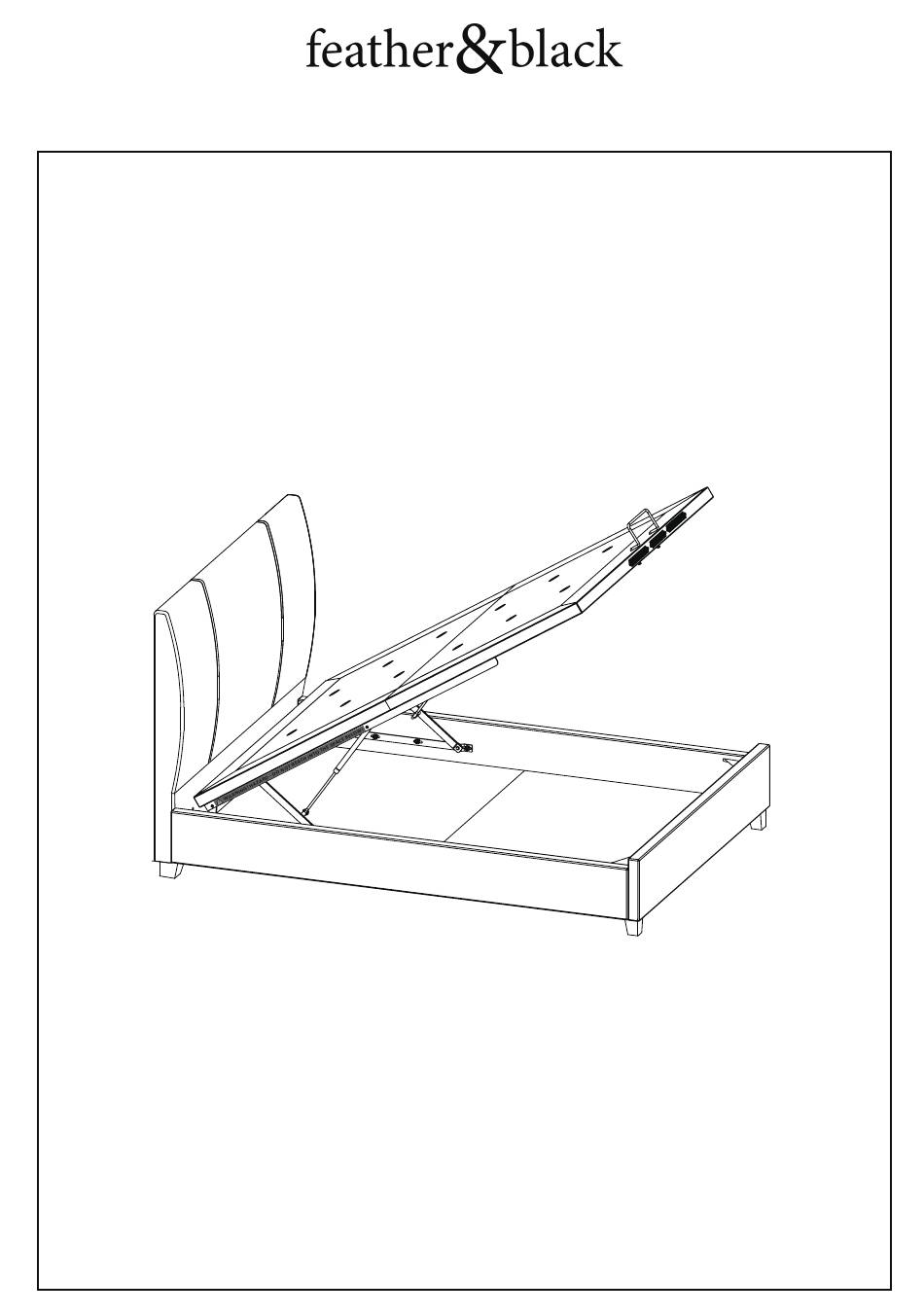

Lymington Ottoman Bed
Product size: H x L x W (mm)
Single:
1270 x 2100 x 940
Small Double:
1270 x 2100 x 1240
Double:
1270 x 2100 x 1390
King:
1270 x 2200 x 1540
1270 x 2200 x 1840
Super King:
If you require any advice during assembly, please call our customer service team on 01243 380600
Please retain these assembly instructions for future use
Mk1 210908
Produced in China for Feather & Black
1
www.featherandblack.com
Advertisement
Related Manuals for feather&black Lymington
Summary of Contents for feather&black Lymington
- Page 1 Lymington Ottoman Bed Product size: H x L x W (mm) Single: 1270 x 2100 x 940 Small Double: 1270 x 2100 x 1240 Double: 1270 x 2100 x 1390 King: 1270 x 2200 x 1540 1270 x 2200 x 1840...
- Page 2 Lymington Ottoman Bed IMPORTANT – READ CAREFULLY – RETAIN FOR FUTURE REFERENCE • You must ensure that the mattress is on the bed frame before operating the lift mechanism – Failure to do so could result in injury. • Keep hands clear of the mechanism when opening or closing the ottoman.
-
Page 3: Before You Start
Lymington Ottoman Bed Before you start Number of people required to assemble Thank you for purchasing the Lymington Two people to assemble the product and Ottoman Bed. two people to lift into position. Please read these instructions fully prior to assembly to familiarise yourself with the various stages of construction. - Page 4 Lymington Ottoman Bed Parts Important infomation The bed you have purchased comes with mattress base boards - please follow the instructions below in their current order. To prevent accidents carefully read the ottoman safety warnings for this bed, on the ÿrst page of this guide.
- Page 5 Lymington Ottoman Bed Fixture and fitting supplied (not actual size) Please check you have all the parts listed below with your product: Hardware needed for ÿxing side rails to headboard & footboard packed in side rail pack 3 - hardware pack (A)
- Page 6 Lymington Ottoman Bed Note angles point inside & 10mm x8 b x8 c x12 d Produced in China for Feather & Black www.featherandblack.com...
- Page 7 Lymington Ottoman Bed & Do not tighten bolts yet x8 b x8 c x8 d Produced in China for Feather & Black www.featherandblack.com...
- Page 8 Lymington Ottoman Bed i) Please note: on the single size bed, there are no central legs fitted to the base board support rails (H). ii) On all the other size beds, the base board support rail with the black leg is the first support fitted into the brackets adjacent to the footboard.
- Page 9 Lymington Ottoman Bed Lift up mattress base board support bars. Untie the two mechanisms. iii) Connect the piston stems iv) Slide gas-lift piston stems onto the threaded axles then fit the flange lock-nut (g) and tighten with spanner (h). Do not over-tighten as a small gap is needed so stem can rotate freely - please see the sketch.
- Page 10 Lymington Ottoman Bed Slide headend mattress base board (E) up against the lifting arm stop plates. Carefully screw x4 bolt sets into the base board as shown - do not tighten 100% yet. iii) Fit both connection plates (e) to headboard mattress base board (E) as shown, (before ÿtting second mattress base F) .
- Page 11 Lymington Ottoman Bed Slide the footend mattress base board (F) into position. Loosely connect plates (c) to (F) then screw other x4 bolt sets through the supports into the base board. 100% When all x16 bolt sets are in place, tighten all 100%.
- Page 12 Lymington Ottoman Bed TO AVOID ACCIDENTS Keep hands clear of the mechanism when operating the base system Do not overload the internal storage base TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME Do not allow chlidren near the lift base when operating the mechanism...
-
Page 13: Important - Read Carefully
Lymington Ottoman Bed IMPORTANT - READ CAREFULLY Use caution when operating, always use the handle when lifting • • Note: This bed uses a pressurised mechanism. • To be operated by adults only • Please ensure that children and pets are kept away from the bed when operating the lift mechanism. - Page 14 Lymington Ottoman Bed Overall Dimensions (LWH mm) Singl e: 2100 x 940 x 1270 Small Double: 2100 x 1240 x 1270 Double: 2100 x 1390 x 1270 King: 2200 x 1540 x 1270 Super King: 2200 x 1840 x 1270...
