Clarion PN-2701B-A Service Manual

DIFFERENCE FEATURE LIST
Model No.
PN-2701B-A
PN-2702B-A
SPECIFICATIONS
Radio section
Tuning system: PLL frequency synthesizer system
PN-2701B-A AM 530kHz to 1,710kHz
FM 87.75Hz to 107.9MHz
PN-2702B-A AM 531kHz to 1,602kHz
FM 87.5Hz to 108.0MHz
Intermediate frequency:
AM 450kHz
FM 10.7MHz
Quieting sensitivity: AM Less than 37dBu(at 20dB S/N)
FM Less than 15dBu
(at 30dB S/N : MAIN ANT)
FM Less than 15dBu
(at 30dB S/N : SUB ANT)
Separation: FM 22 +5/-7 dB(1kHz)
S/N ratio: AM More than 40dB
FM More than 50dB
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
Destination
North America
China
- 1 -
Service Manual
NISSAN Genuine (BOSE Type)
Cockpit Module
AM/FM Radio Stereo
6-CD Changer Deck
PN-2701B-A
Model
(Genuine No. 28185 EH200)
(Xanavi Genuine No. CD6K-1210U)
PN-2702B-A
Model
(Genuine No. 28185 EH500)
(Xanavi Genuine No. CD6K-1600C)
CD section
Disc:
Format:
MP3 Sampling rate:
MP3 Bit rate:
WMA Bit rate:
Logical Format:
Separation:
S/N ratio:
Disortion:
General
Load impedance:
Power output:
Power supply voltage: DC13.2V(10.8V to 15.6V)
Back-up consumption: Less than 0.3mA
Dimensions(mm):
Weight:
* Specifications and design are subject to change without
notice for further improvement.

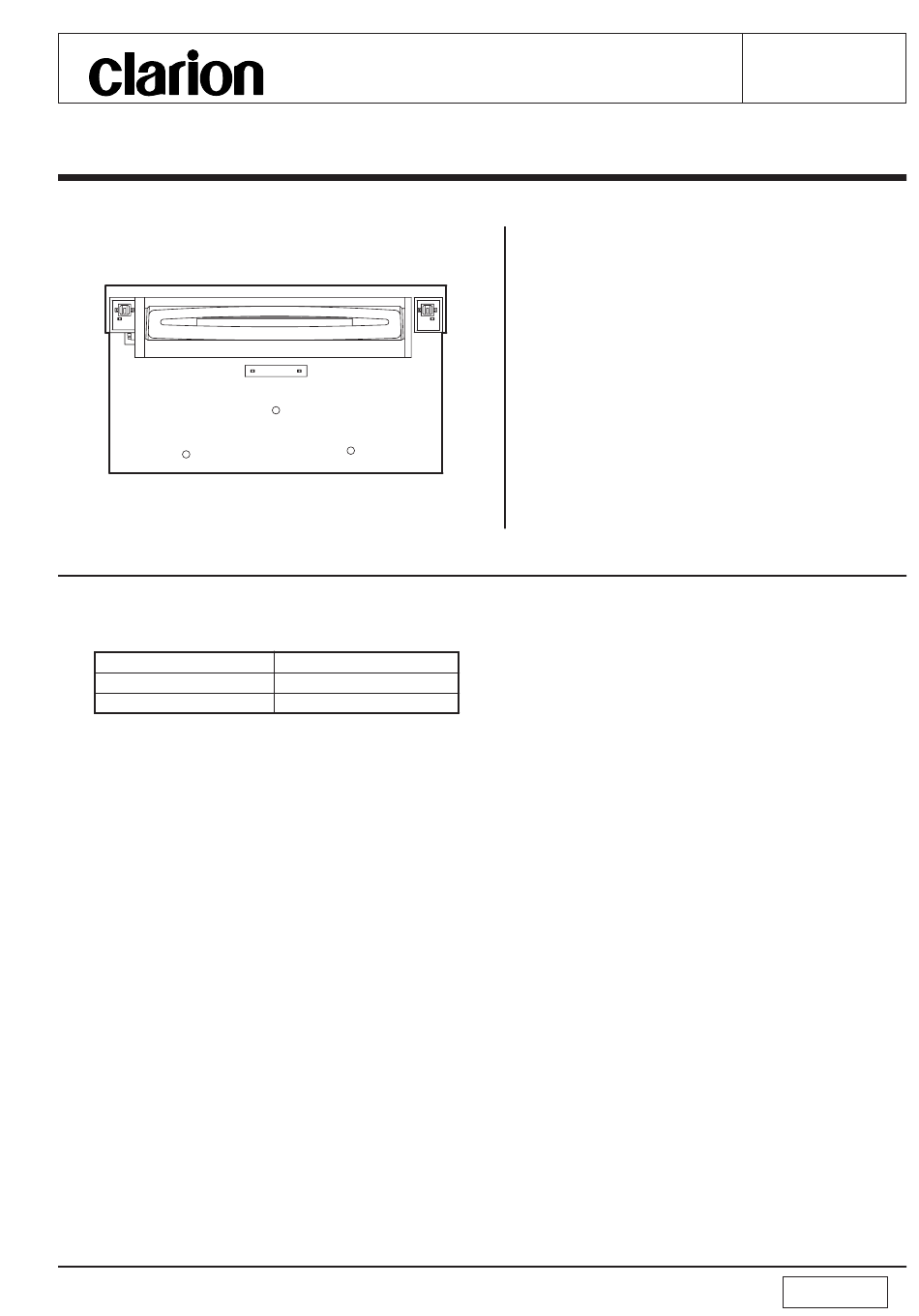

COMPONENTS
PN-2701B-A / PN-2702B-A
Main unit
Published by Service Dept.
298-6225-00 Feb.2005
Printed in Japan
12cm Disc
CD-DA, MP3, WMA
MPEG1; 32kHz, 44.1kHz, 48kHz
MPEG2; 16kHz, 22.05kHz, 24kHz
MPEG3; 8kHz, 11.025kHz, 12kHz
MPEG1; 48k to 320kbps/VBR
MPEG2; 24k to 160kbps/VBR
MPEG3; 24k to 160kbps/VBR
64k to 192kbps
ISO9660 level1, 2
Romeo or Joliet
More than 60dB(20kHz L.P.F.)
More than 80dB(20kHz, JIS-A)
Less tahn 0.1%(20kHz, L.P.F.)
300 ohm / 2ch
3.6V x 2ch
Negative ground
182(W) x 100(H) x 167(D)
Approx. 2.4kg
-----------
PN-2701B-A
PN-2702B-A
