Mercedes Benz E-Class (W211)
EXAMPLE
Use this hole
Use this hole
Remark: The fi xing position can be different between Audio and Multimedia unit!
2-DIN
Installation manual for:
* Mount the plates.
BKX-1190-05

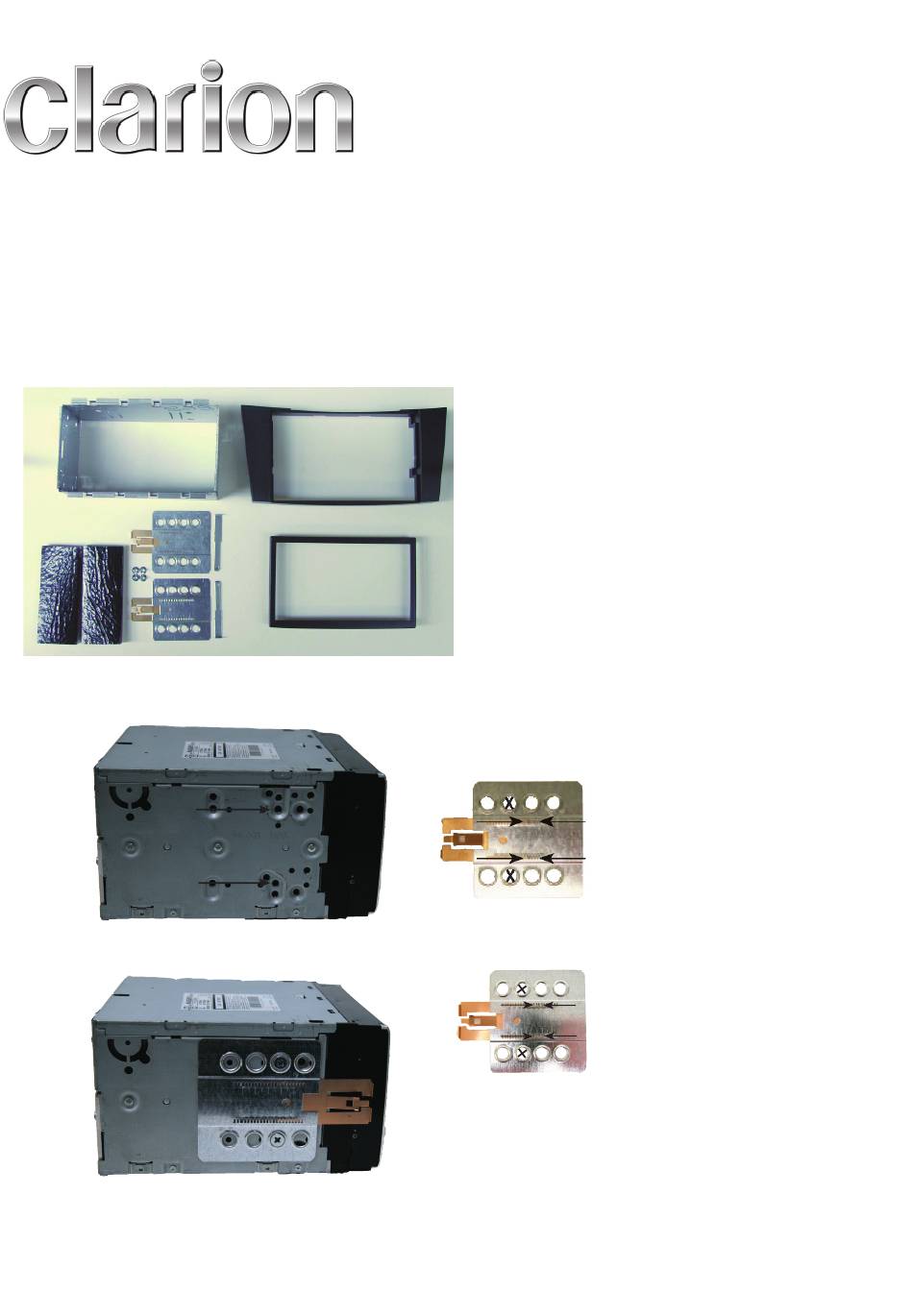

Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement panel
* 1X Radio trim
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 11 & 13 marked with an arrow.
Measured from left to right.
We advice to use the following positions.
Other positions are also possible.
Use position 2 marked with a cross.
Use position 11 & 13 marked with an arrow
Measured from left to right.
Advertisement
Table of Contents
Related Manuals for Clarion BKX-1190-05
Summary of Contents for Clarion BKX-1190-05
- Page 1 2-DIN BKX-1190-05 Installation manual for: Mercedes Benz E-Class (W211) Installation kit includes the following items: * 1X 2-ISO 110 mm. metal bracket * 1X Replacement panel * 1X Radio trim * 2X Mounting plates * 2X Mounting spacers * 2X Radio removal keys...
- Page 2 2-DIN BKX-1190-05 Remove the plastic trim around the gear Remove the the screws and remove lever. Remove the ashtray. original storage bin/ CD changer. Loosen the screws at the location of the arrows. This is to unlock the original head unit.
